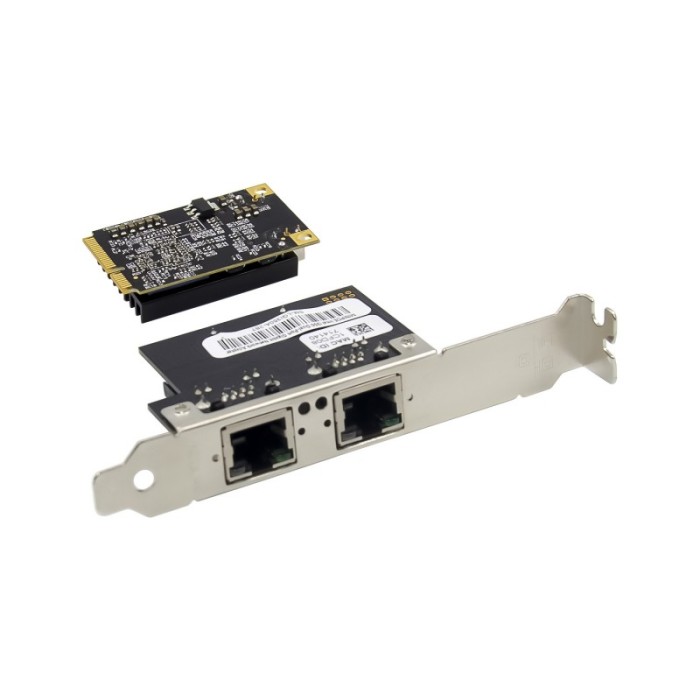

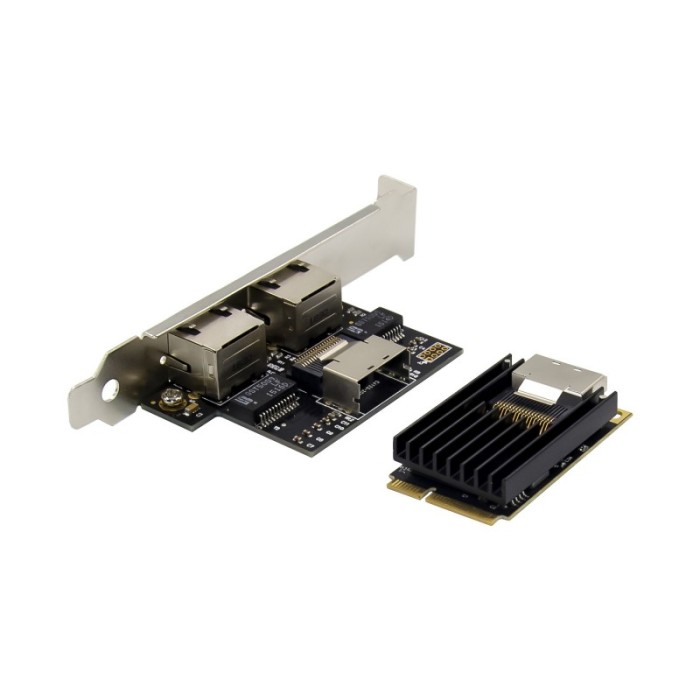

Mini PCI Express 2-port RJ45 Gigabit Ethernet Network Adapter with Intel NHI350AM2 Chip

MPE-GE-2T-I350 is a Mini PCIe dual-port Gigabit Ethernet network adapter developed on the Intel I350 control. This adapter card is designed with Mini PCI-e slot for use on industrial equipment including Mini PCIe interface slots such as industrial PCs and single board machines. It can solve the problem of compact space of equipment. The adapter supports 10/100/1000 Mbps link rate that automatically adapts to existing Ethernet networks.

This Ethernet adapter can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can realize system support such as Windows and Linux.

Features

• Chipset: Intel NHI350AM2
• Compliant with Mini PCI Express Specification 1.2
• Compliant with PCI Express base specification Revision1.1
• Compliant with PCI bus power management interface specification Revison1.2
• Dual 1GbE RJ45 port
• Complies with the IEEE802.3ab ,IEEE802.3u and IEEE802.3 specifications
• Half duplex at 10/100Mbp operation and full duplex operation at all supported speeds
• Layer 2 functions: IEEE 802.3x Flow Control - IEEE 802.1q VLAN
• Supports Receive-side scaling (RSS)
• Supports IPv4, IPv6 protocols
• Supports Jumbo Frames up to 9.5K
• Supports UDP.TCP and IP Checksum offloading
• Statistics for management and RMON
• Support for virtual machines device queues
• Next Generation VMDq Support (8VMs)
• Interrupt throttling control to limit maximum interrupt rate and improve CPU usage
• Drivers support for FreeBSD, Linux , VMWare ESXi, Win7/ Win-server2012/ Win-server2008/ Win8/Win8.1/Win-server2016/win10

Specifications

• Controller: Intel NHI350AM2
• BusType: Mini PCI Express
• Connector: 2*8-Pin RJ45
• Transmission Rate: 10/100/1000Mbps
• Cable Type
• Cat 5E/6 or higher: 1000Base-T up to 100m
• Cat5/5E/6 or higher: 100Base-Tx up to100m
• Category 3/4/5/5E/6 or higher: 10Base-T up to 100m
• Bracket: Low Profile and Full-height Bracket
• Power(max): 3W
• LED
• 1000Mbps:Green + Green Blink
• 10/100Mbps: Green Blink
• PCB size(mm) :63*41.5*1.6mm (M1) + 51*30*1.0 mm (M)
• Weight(g): 38

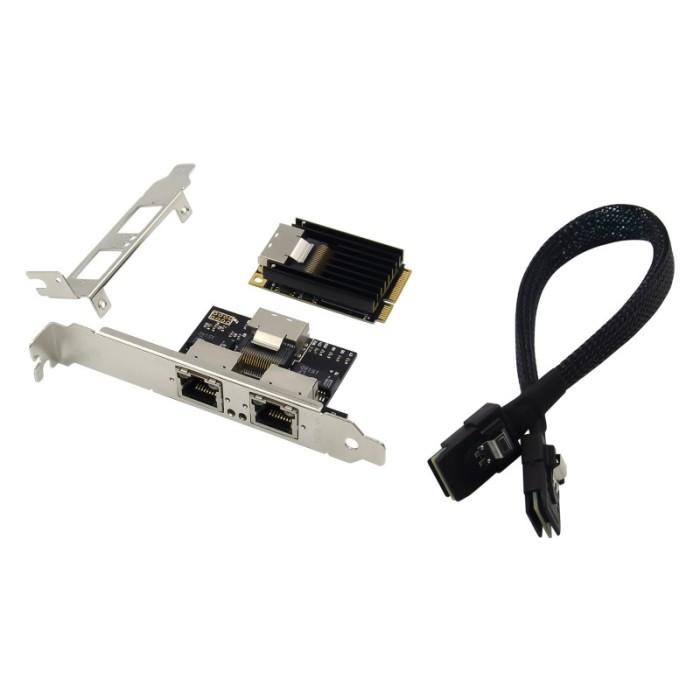

Package Contents

• 1 x Mini PCIe Intel I350 Dual-Port Gigabit servercard Main board
• 1 x Mini PCIe Intel I350 Dual-Port Gigabit servercard daughter board
• 1 x Quick Installation Guide
• 1 x Driver CD
• 1 x Low profile bracket
• 1 x SAS Cable
