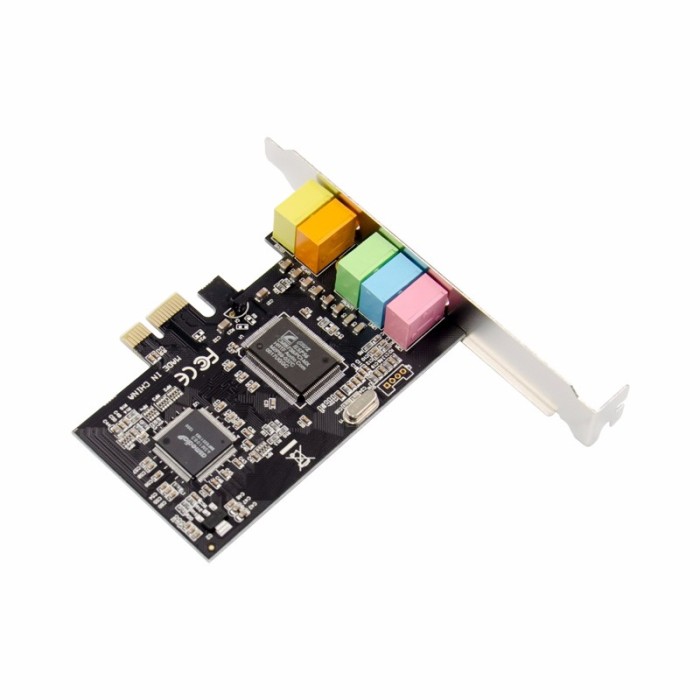

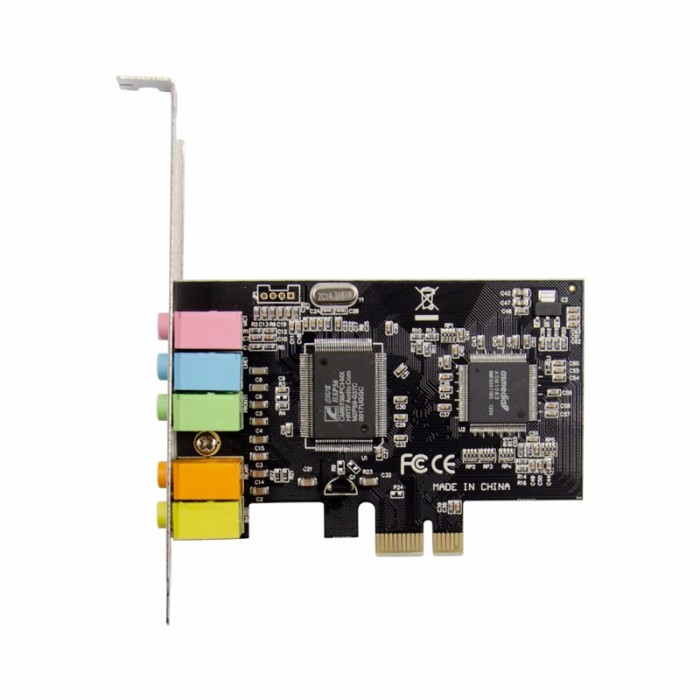

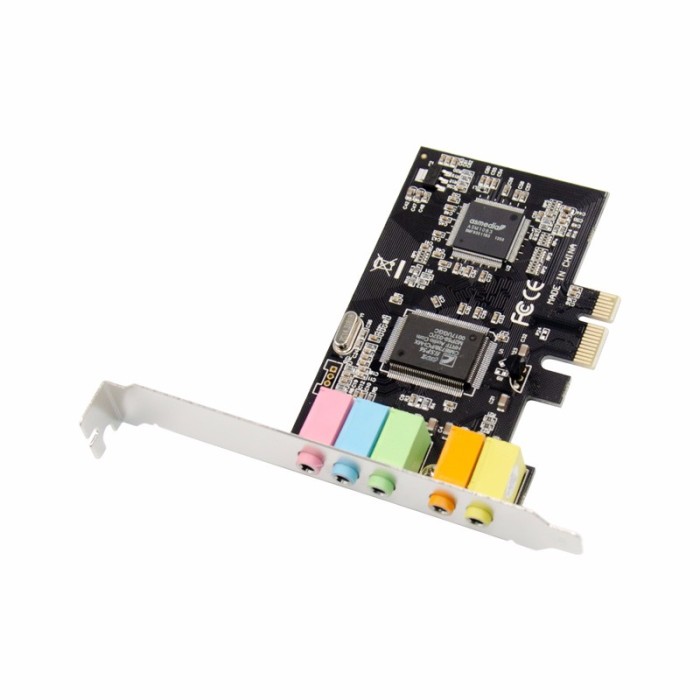

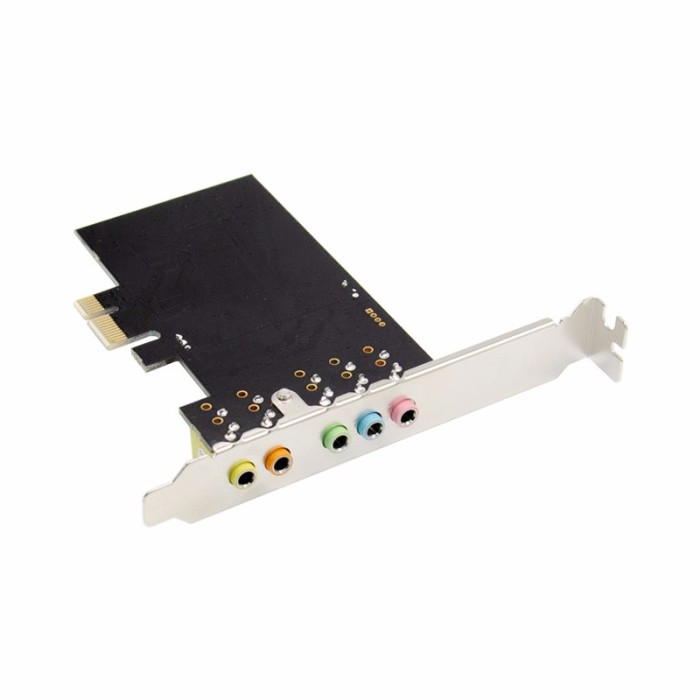

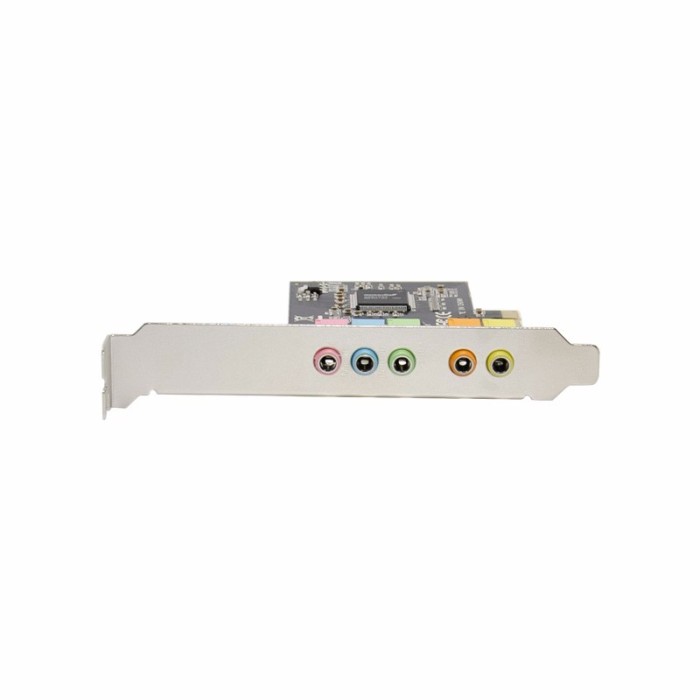

PCIe x1 5.1 Channel Surround Sound card

This PCIe x1 5.1 Channel Surround Sound card is built on CMI8738 + ASM1083 chipsets. It can be installed in home audio electronics or personal computers to provide high fidelity sound for the ultimate listening experience.

Features

• Compliant with PCI Express Base Specification 1.1
• Supports 6CH channel DAC 5.1 surround output for home entertainment or games
• Supports full-duplex 44.1k/48khz Sample rate playback and records at 16bit
• Supports analog mixer for Line-in, Mic-in, Aux, CD Inputs
• DB15 MIDI MPU-401 port/game port
• Supports A3D and DS3D,Directsound 3D and EAX sound compatible

Specifications

• Chipset: CMI8738 + ASM1083
• System interface: PCI Express X1
• Channel: 5.1 CH
• Connector: 3.5mm Mic-in, 3.5mm Line-in, 3.5mm Front out, 3.5mm Rear out, 3.5mm Bass/Center out
• Function: DB15 MIDI MPU-401 Port/Game port
• Digital Audio
• Sampling Rate: 44.1 ~ 48 kHz / 24 bits
• Signal to noise ratio: 100db
• Harmonic distortion: -85db (playback) / -90dB (recording)

Package Includes:

• 1 x PCIe CMI8738 5.1ch Audio Sound Card
• 1 x User Manual
• 1 x Driver CD
• 1 x Low profile bracket
