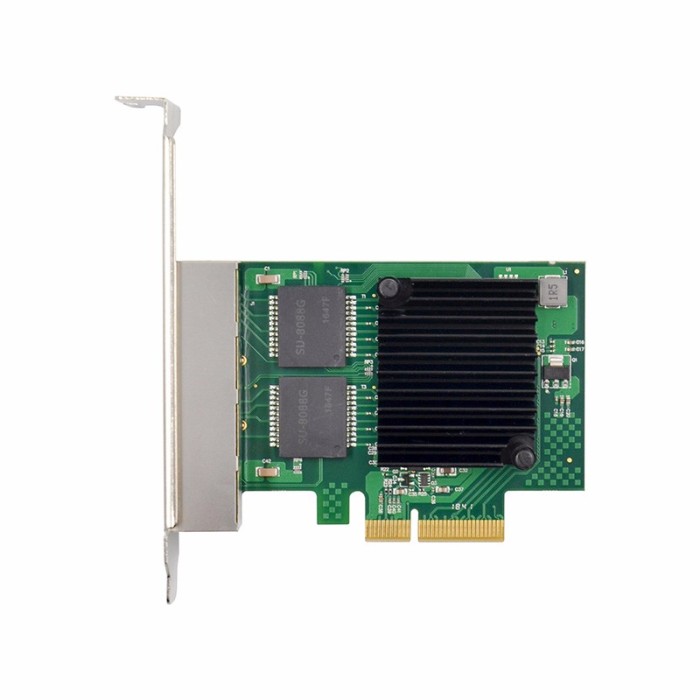

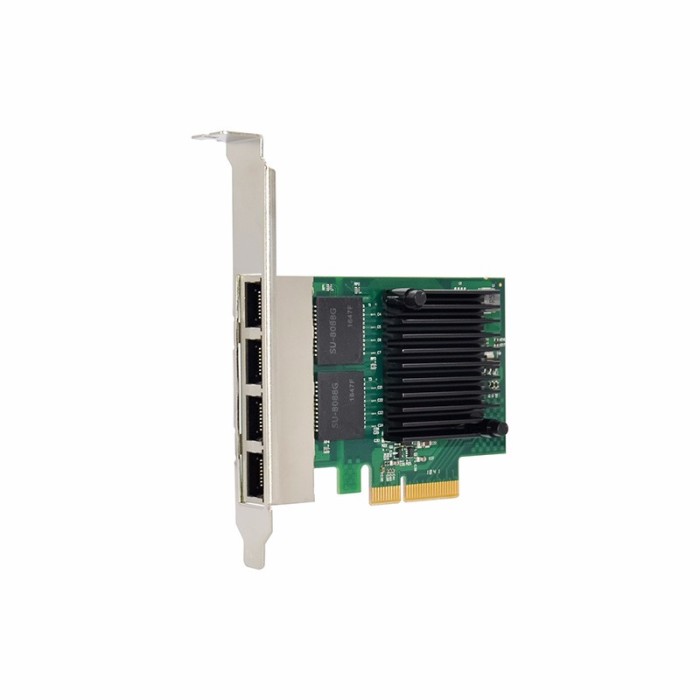

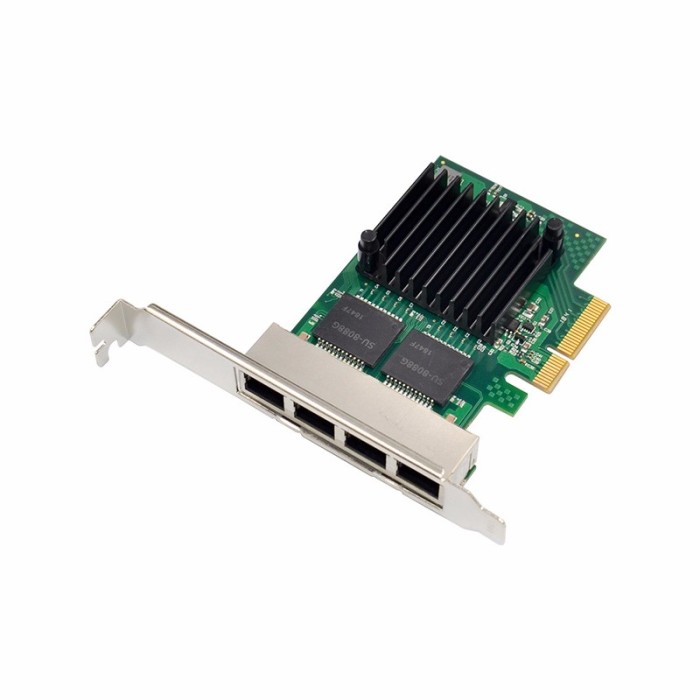

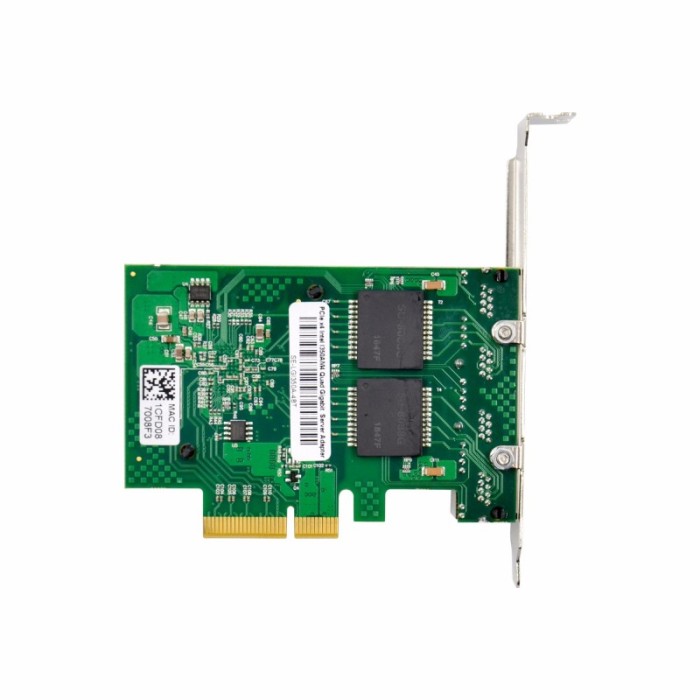

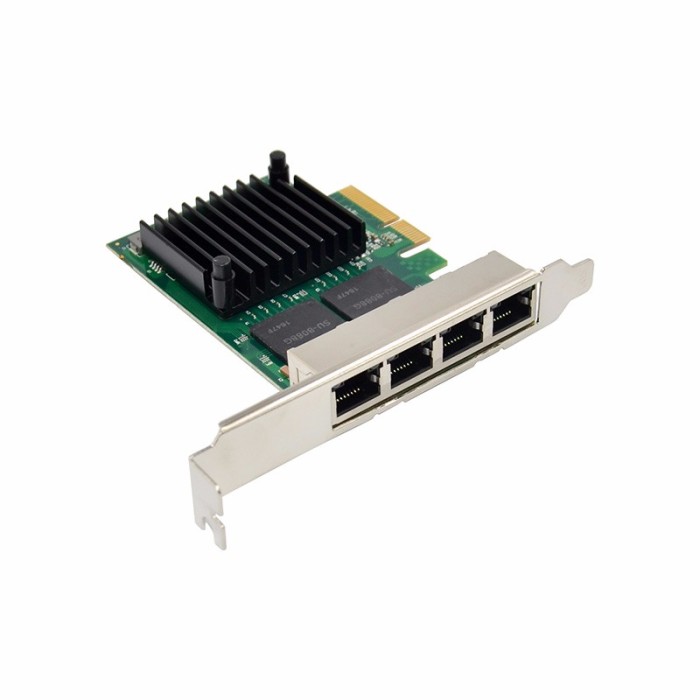

PCIe x4 4-port RJ45 Intel NHI350AM4 Chipset Gigabit Ethernet Network Interface Card

This Gigabit Ethernet network card features the Intel® I350-AM4 chipset, designed to deliver the power, performance and enhanced capabilities you need for reliable network connections to your server or computer. The Intel chip provides a number of advanced driver options including IEEE 802.3ad link aggregation / teaming support, which enables you to add additional bandwidth to your system. Compliant with IEEE 802.3/u/ab standards, the network card provides full support for high-performance, four-channel networking and maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

The quad-port Gigabit network card makes it easy to access multiple networks. It offers a cost-effective solution for IT professionals in government, educational, corporate, health care, or business environments where access to multiple networks from numerous workstations is needed. The server adapter card gives you four redundant, independent Gigabit Ethernet ports and it supports advanced features such as Jumbo Frames and VLAN tagging.

Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is suitable for many business and enterprise applications - including virtualized environments with multiple operating systems, requiring multiple shared or dedicated NICs. The 4-port Gigabit network card is equipped with Intel® Virtualization Technology for Connectivity (Intel® VT-c) which reduces system latency and improves networking throughput. Four dedicated ports allow you to maximize your virtualized server’s networking efficiency and create a more agile data center. With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card is equipped with a full-sized bracket, and includes a low-profile/half-height installation bracket that you can use as needed.

Features

• Quickly adds four independent Gigabit Ethernet ports through an available PCI Express slot to server or desktop systems
• Intel I350-T4 chipset supports reliable and advanced network connectivity
• Compliant with IEEE 802.3, 802.3u, 802.3ab with full duplex and Wake-on-LAN support
• Features innovative power management including Energy Efficient Ethernet (EEE) and DMA Coalescing to increase efficiency and reduce power consumption
• Fits both standard and low profile system chassis with the included spare low profile bracket

Specifications

• Chipset: Intel I350AM4
• Bus Type: PCI Express* 2.1 (5GT/s) x4
• Connectors: 4 * 8-pin RJ45, Female
• Network Transfer Rate: 10/100/1000 Mbps
• Cabling
• Category-3 or higher for 10BASE-T operation
• Category-5 or higher for 100BASE-TX operation
• Category-5e or higher for 1000BASE-T operation
• Function: IPMI pass-through via SMBus or NC-SI, iSCSI boot, WoL, PXE remote boot, VLAN filtering
• IEEE Standard / Network topology
• IEEE 802.3/10BASE-T, 100BASE-TX, 1000BASE-T
• IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az - Energy Efficient Ethernet (EEE)

System Requirements

• Desktop PC with one available PCI Express (PCIe) slot
• Windows® 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit)
• Windows® Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2
• Linux kernel 2.3.2 and later
• Works with Linux but not supported

Package Contents

• Quad-Port Gigabit Ethernet PCIe 4-Lane Card - I350-T4
• Low Profile Bracket
• Driver CD
• Installation Guide
