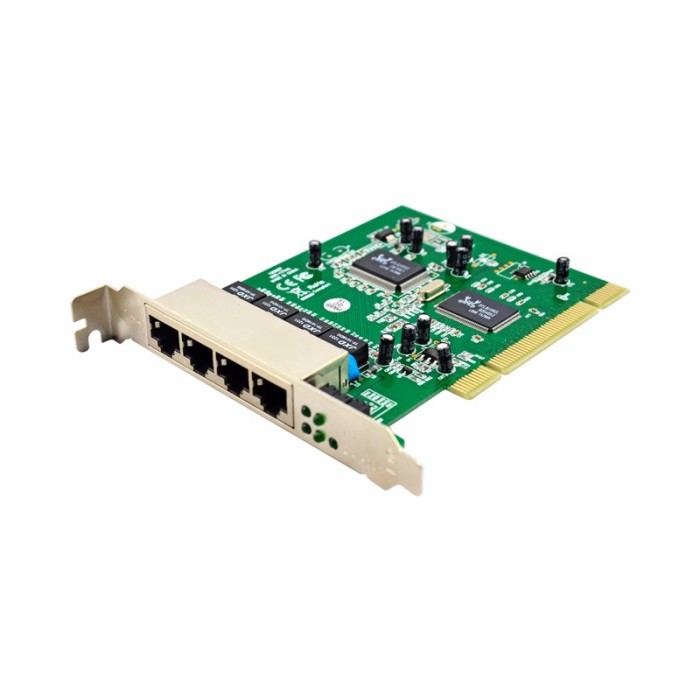

PCI 4-port RJ45 10/100Mbps Fast Ethernet Network Switch Card
- Product Code: PCI-FE-4T-8305
- Availability: In Stock
-
$20.00
Card Type: Fast Ethernet switch card
Application layer: 2
Transmission rate: 10Mbps/100Mbps
Network standard: IEEE 802.3 IEE 802.3u IEEE 802.3x
Port organization: Non-modular
Port: 4-Port
SATA: 10Base-T: 3/ UTP、100Base-TX: 5
Transport mode: full duplex/half-duplex
Swap mode: storage-transmit
Gbps: 0.4Gbps
Mpps: 10Mbps: 14880pps; 100Mbps: 148800pps
MAC size: 8K
Indication panel: Link / Act、100Mbps
| Specifications | |
| Chipset | RTL8305SC + 8100CL |
| Bus Connector | PCI |
| Ports | 4 * RJ45 |
| Max Data Rate | 100Mbps |
| Networking Protocol | IEEE 802.3 IEE 802.3u IEEE 802.3x |
| Cabling Type | 10Base-T, 100Base-T |
| OS Compatibility | Windows, Linux |
