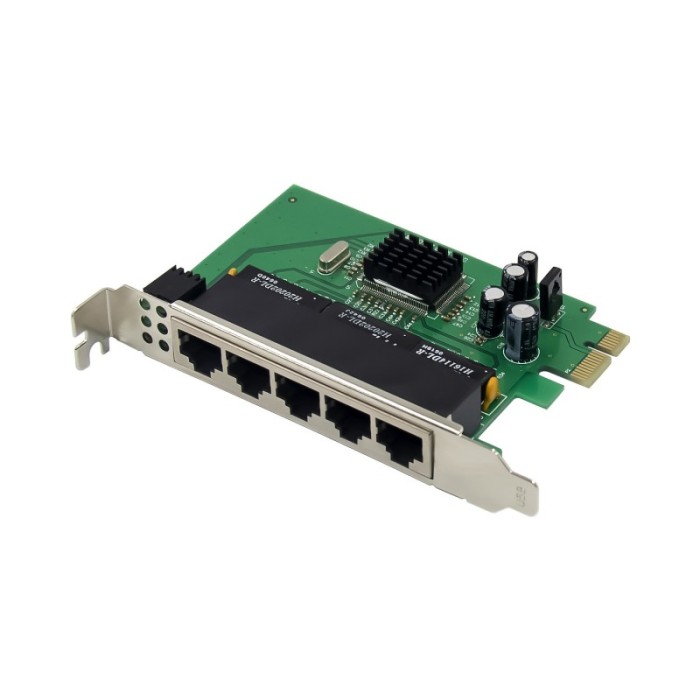

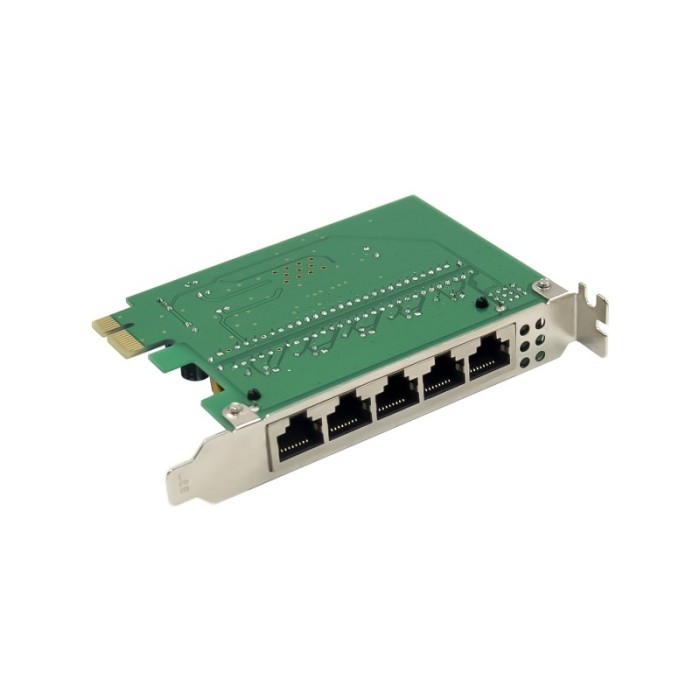

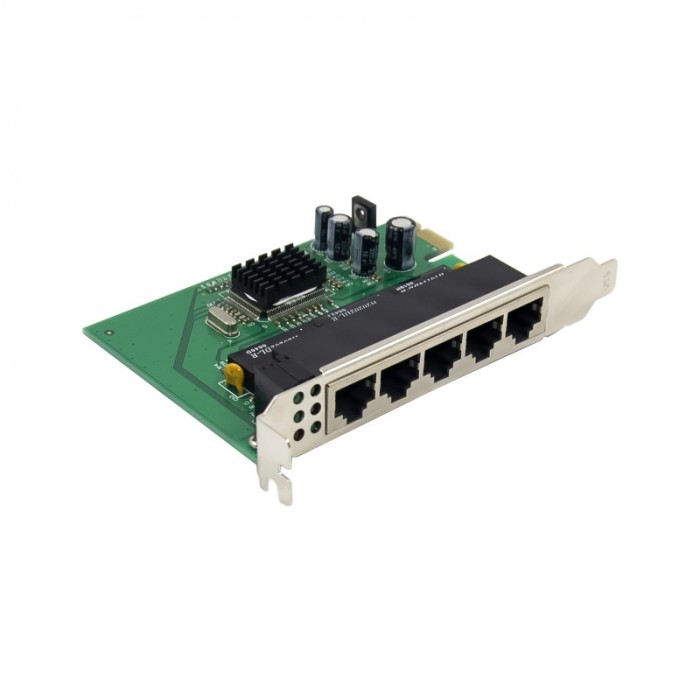

PCIe x1 5-port RJ45 10/100Mbps Fast Ethernet Network Switch Card

The PCIe IPC175C 5-Port 100M Switch Card is integrated a 5-port switch controller and 10/100 Ethernet transceivers. Each of the transceivers complies with the IEEE802.3, IEEE802.3u,and IEEE802.3x specifications. The DSP approach is utilized for designing the transceivers with 0.18um technology so that they have high noise immunity and robust performance. Each port can be configured to auto-negotiation or forced to 10M/100M full/half duplex mode.

Specification

• Built in 6 MAC and 5 PHY
• Each port can be configured to be 10Base-T,100Base-T
• 2K MAC address
• 384k bits packet buffer memory
• Support auto-polarity for 10Mbps
• Filter/forward reserved address option
• Broadcast storm protection
• Support three MII/RMII Port
• Support tagging & un-tagging
• Support port base VLAN &tag VLAN
• Support CoS
• Support port security option
• Support spanning tree protocol
• Max packet length 1552/1536 bytes
• Support 8-level bandwidth control
• Support Link quality LED for 100Mbps

Package Contents

• 1 x PCIe IP175C 5-Port Switch card
• 1 x User Manual
