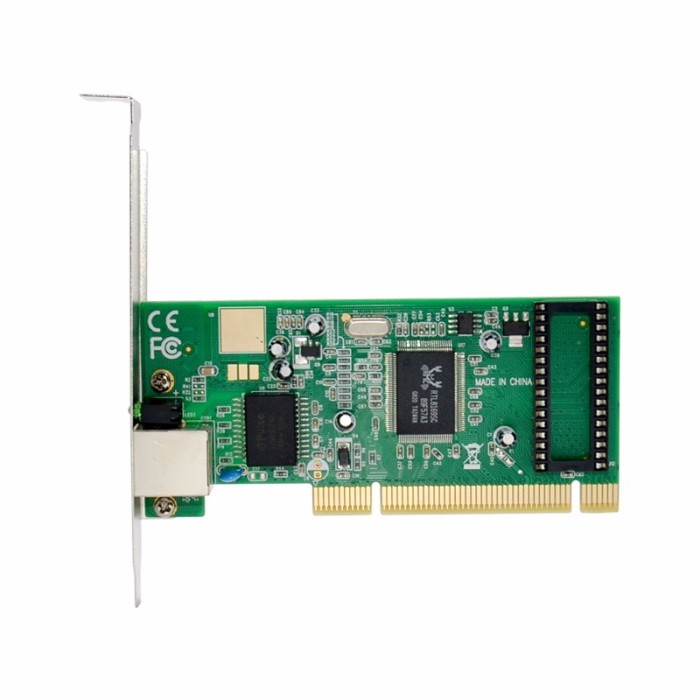

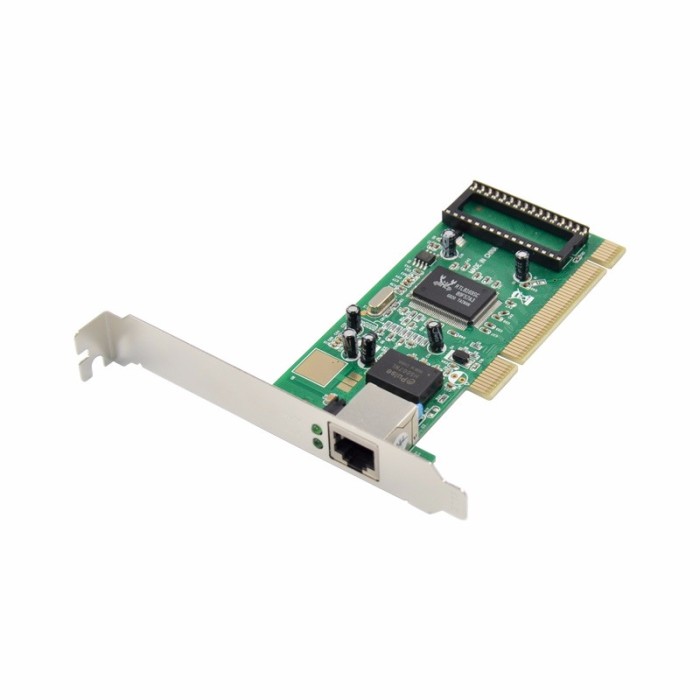

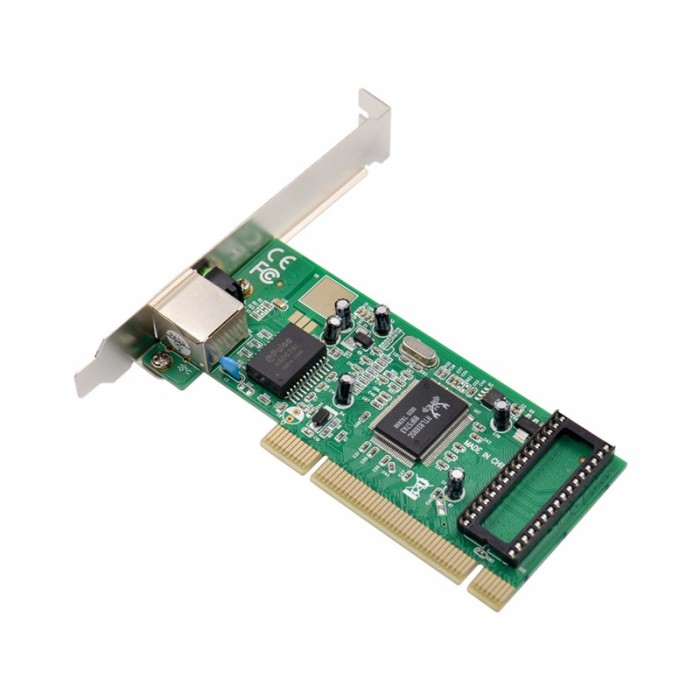

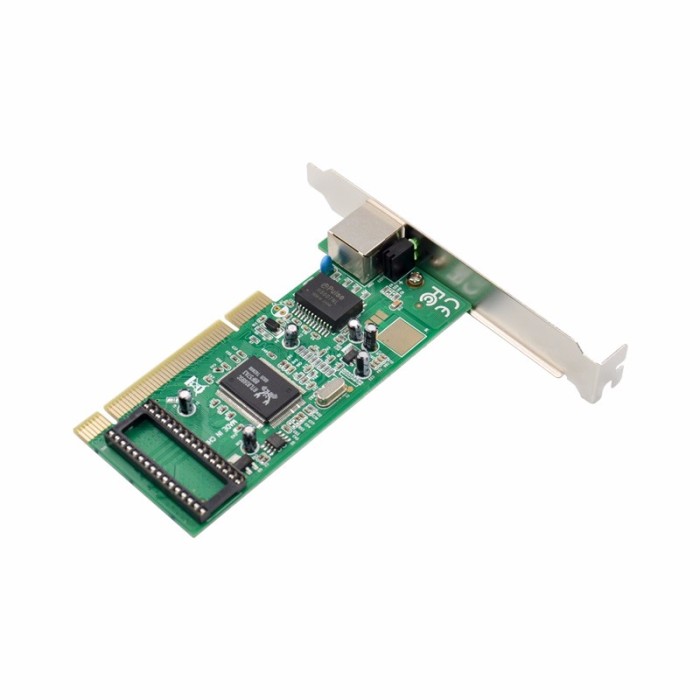

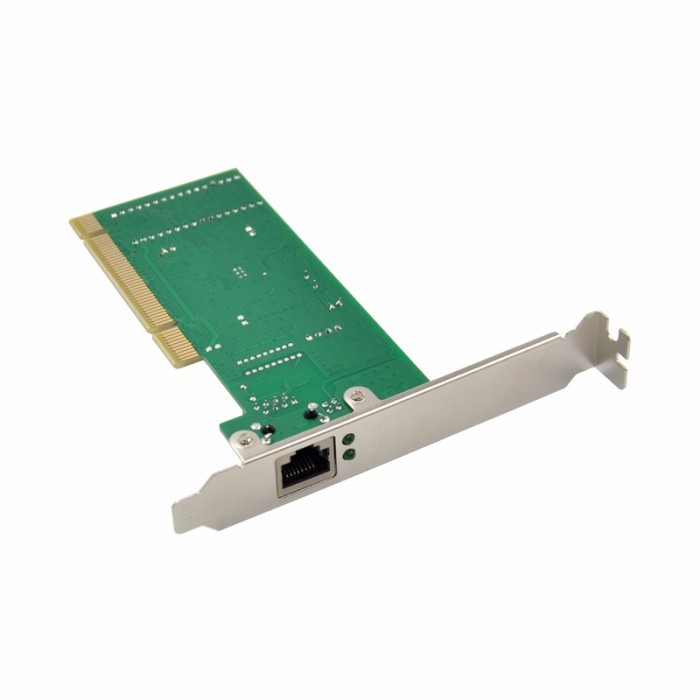

PCI 1-port RJ45 1GbE Gigabit Ethernet Network Interface Card

This PCI-based 10/100/1000 Mbps Gigabit Ethernet Network Adapter Card provides a simple connection to a Gigabit Ethernet network, and is fully compatible with IEEE 802.3, 802.3u, 802.3ab and 802.3x standards.

Suitable for any PCI-enabled client, server or workstation, the Gigabit Ethernet Network Adapter Card supports high performance dual channel networking and maximum data transfer speeds of 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

Compatible with a broad range of operating systems, including Linux, Windows 10, 8/8.1, ME, 2000, XP, XP-64bit, Vista, Vista-64bit, 7, 7-64bit as well as Mac OS 10.4, this high quality PCI Gigabit NIC includes an optional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.

Features

• Complies with PCI Revision 2.2
• Supports standard and low profile chassis
• A high performance 1000BASE-T Ethernet controller card
• Backward compatible to 10/100BASE-T networking
• Supports jumbo frame to 9K bytes
• 10/100/1000Mbps data rate auto negotiation operation
• Compatible to existing CAT-5 UTP cabling
• Fully compliant with IEEE802.3,IEEE802.3u, IEEE802.3ab
• Supports half / full duplex mode and 802.3x Flow Control
• Supports IEEE802.1P Layer2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Transmit /Receive on-chip buffer support
• Crossover Detection and Auto Correction operation
• Supports power down/link down power saving
• Wake-on-LAN and remote wake-up function support

Specifications

• Chipset: Realtek RTL8169SC
• Bus Type: PCI * Rev2.2
• Connector: 1 * RJ-45 (Copper)
• Transmission rate: 10/100/1000 Mbps
• Cabling
• 1000Base-T Cat 5E, Cat6 or higher: up to 100m
• 100Base-Tx Cat5, Cat5E, Cat6 or higher: up to 100m
• 10Base-T Category 3, 4, 5, 5E, 6 or higher: up to 100m
• IEEE Standard / Network topology
• 1000BASE-T Gigabit Ethernet
• IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az - Energy Efficient Ethernet (EEE)
• System Requirements
• Windows XP / ME / Server 2000 / Server 2003 / Server 2008 /
• Vista / Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
• Applicable fields: Home or office use
