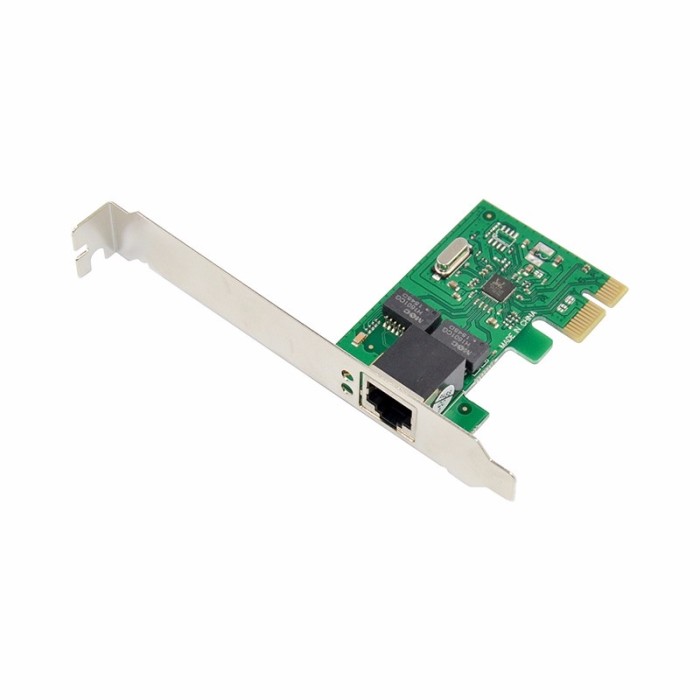

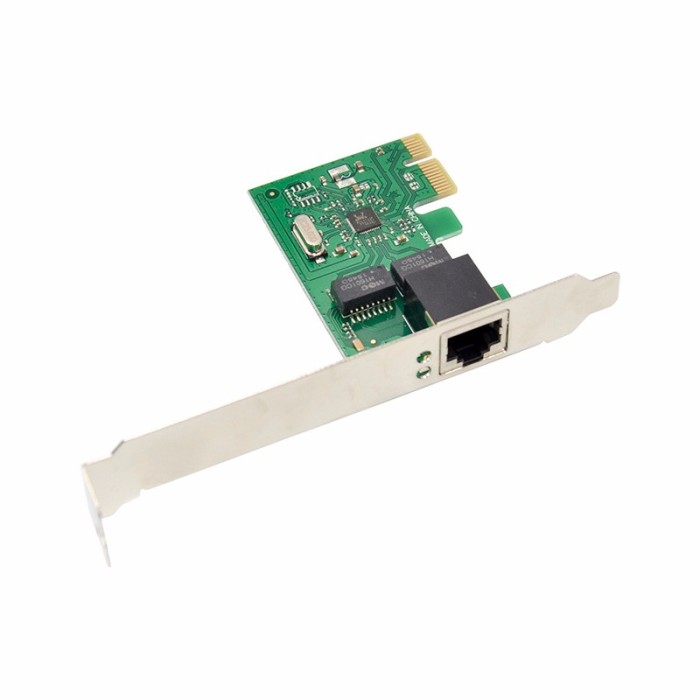

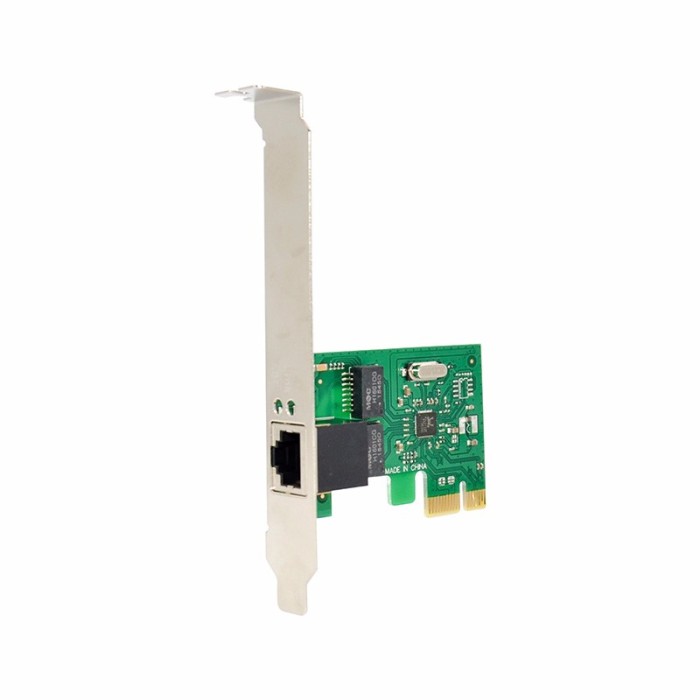

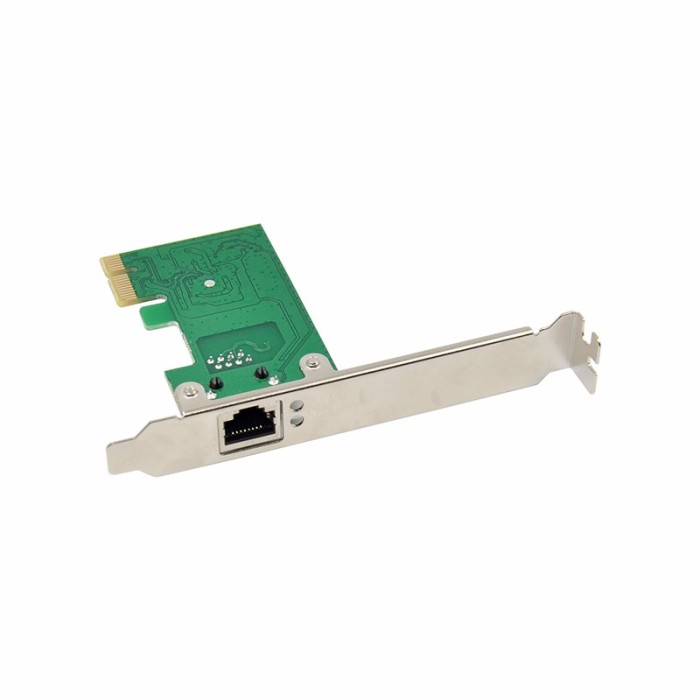

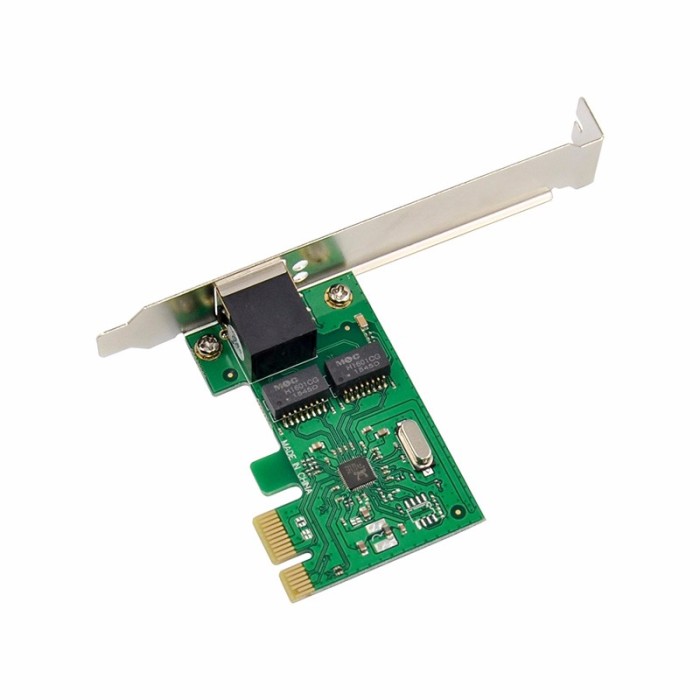

PCIe x1 1-port RJ45 1GbE Gigabit Ethernet Network Interface Card

PX1-GE-1T-8111F is a PCI Express x1 Gigabit Ethernet desktop network adapter based on RTL8111F chipset. The Gigabit adapter adopts a compact design and does not reduce the performance of the NIC. The adapter adopts Ethernet power management technologies such as Energy Efficient Ethernet and DMA Merge. It has 4 transmit and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission. Manage latency data packets efficiently by combining parallel and pipe-lined logical architectures. The adapter has high-performance network data transmission on the machine bus architecture, compatible with Ethernet and fast Ethernet to greatly reduce customer deployment and training costs.

Features

• Adds a high-speed Gigabit Ethernet port into PCI Express (PCIe) enabled computers
• Supports crossover detection & auto-correction
• Supports full duplex mode that doubles the network connection speed
• Supports Wake On LAN (WOL) power management
• Checksum and Segmentation Task-offload reduce CPU workloads for enhanced system response and network scalability
• Automatic MDI/MDIX crossover at all speeds
• Supports Flow Control, Layer 2 Priority Queuing, VLAN Tang and Jumbo Frames
• LEDs indicate the Link/Activity status and 10/100/1000 Mbps
• Easy plug-n-play installation
• Works in any available PCI Express slot
• Dual Profile design to work with standard height and low profile chassis

Specifications

• Chipset: Realtek RTL8111F
• Bus Type: PCI Express* 1.1 (2.5GT/s) x1
• Connector: 1 * RJ45 (Copper)
• Transmission Rate: 10/100/1000 Mbps
• Cabling
• 1000Base-T Cat 5E, Cat6 or higher: up to 100m
• 100Base-Tx Cat5, Cat5E, Cat6 or higher: up to 100m
• 10Base-T Category 3, 4, 5, 5E, 6 or higher: up to 100m
• IEEE Standard / Network topology
• 1000BASE-T Gigabit Ethernet, IEEE 802.3az - Energy Efficient Ethernet (EEE)
• IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588
• System Requirements
• Windows XP / ME / Server 2000 / Server 2003 / Server 2008 /
• Vista / Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit
• Applicable fields: Home or office use
