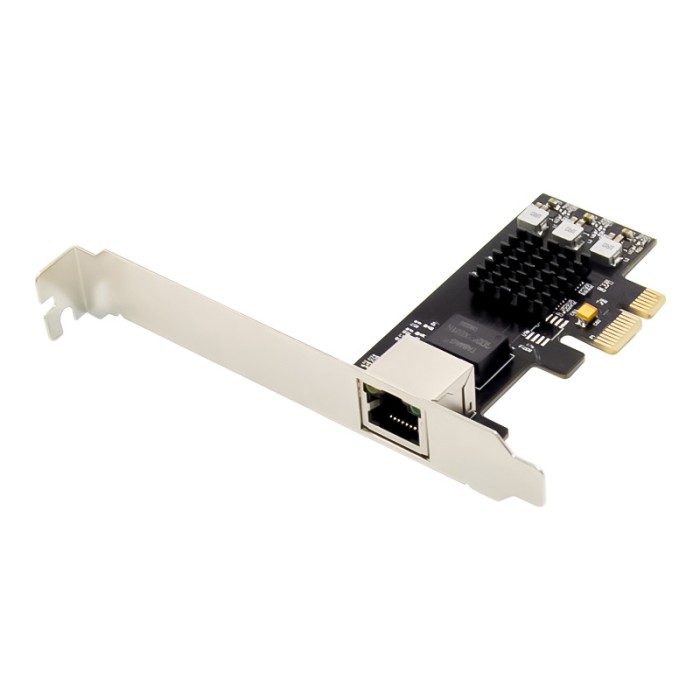

PCIe x1 1-port RJ45 2.5G Ethernet Network Interface Card

PX1-2-5G-1T is a PCIe 2.0 x1 2.5G Ethernet network adapter, based on the Realtek RTL8125B chipset. This adapter card has a universal and low-cost way to deploy 2.5GbE Ethernet network connections. It can provide the network with four speed links: 2.5 Gbps, 1G, 100Mbps, 10Mbps. This network card is designed to be used a Gigabit network port, which can solve the computer's link demand for network speed.

This network adapter card adds a 2.5GBASE-T technology Ethernet port to the computer through the PCIe x1 slot. It can be widely used in industrial control computers, embedded computers, single board computers, digital multimedia and other network equipments. Through the existing Gigabit Ethernet network, 2.5 Gigabits, which is up to 250% higher than the Gigabit network speed, an efficient, energy-efficient and cost-effective multi-gigabit Ethernet solution is realized.

Features

• Integrated 10/100/1000M/2.5G transceiver
• Supports 2.5G and 1G Lite mode
• Auto-Negotiation with Extended Next Page capability
• Support PCI Express Specification Revision 2.1
• Supports pair swap/polarity/skew correction
• Crossover Detection& Auto-Correction
• Supports 1-Lane 2.5/5Gbps PCI Express Bus
• Supports hardware ECC(Error correction code)function
• Supports hardware CRC(Cyclic Redundancy Check)function
• Supports PCI MSI (Message Signaled Interrupt)and MSI-X
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
• Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up)supports
• Compatible with IEEE802.3,IEEE802.3u,IEEE802.3ab
• Supports IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization
• Supports IEEE802.1Qav credit-based shaper algorithm
• Supports IEEE802.1P Layer 2 Priority encoding
• Supports IEEE802.1Q VLan tagging
• Supports IEEE802.3az-2010
• Supports IEEE802.3bz-2016(NGBASET)
• Supports full duplex flow control(IEEE802.3x)
• Supports jumbo frame to 16K bytes
• Supports Virtual Machine Queue(VMQ)
• Supports quad core Receive –Side Scaling(RSS)
• Drivers for Win 7 / Win 8 / Win 10 / Vista / Sever 2008 / Sever 2012 / Linux / DOS

Specifications

• Controller: Realtek RTL8125
• Bus Type: PCIe 2.0 x1
• Data rate supported per port: 10/100/1000/2500MbE
• Connector: 1*2.5G RJ45

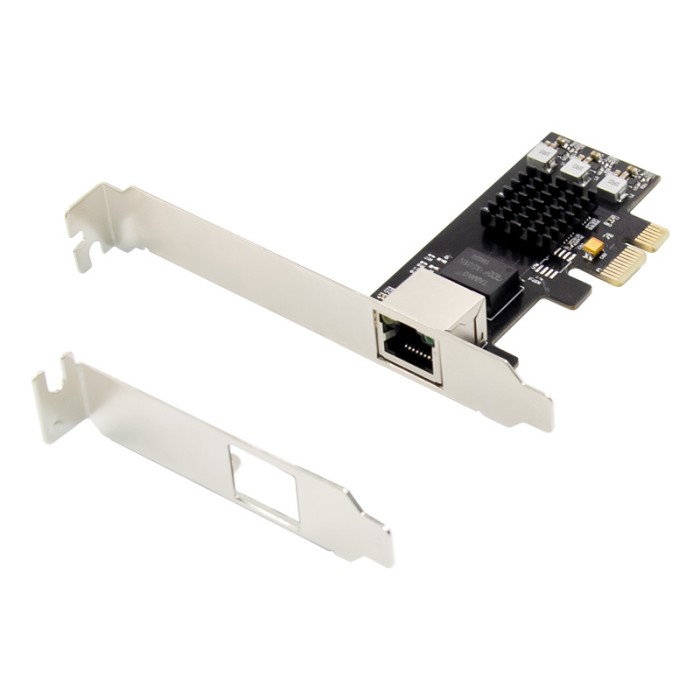

• Bracket Height: Full height & half height
• Transmission Medium: Copper
• Cable Type
• 2500Base-T/1000Base-T Cat 5E/6 or higher,up to 100m
• 100Base-Tx Cat5/5E/6 or higher,up to 100m
• 10Base-T Category 3/4/5/5E/6 or higher,up to100m
• Power Consumption: 1.0W
• System Support
• Windows 7/8/8.1/10
• Windows Server 2008 R2/2012 R2/2016 R2/2019 /2019 R2;
• Linux Stable Kernel version 2.6.32/3.x/4.x or later;
• Linux CentOS/RHEL 6.5 / 7.x or later;
• Ubuntu 14.x/15.x/16.x or later;
• VMware ESX/ESXi 4.x/5.x/6.x or later

Technical Features

• Standards compliant
• IEEE 802.3bz (2.5GBASE-T)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3i 10BASE-T
• IEEE 802.3x Full Duplex and flow control
• IEEE 802.3ad Link aggregation for parallel links
• IEEE 802.1Q VLAN
• IEEE 1588
• IEEE 802.3az - Energy Efficient Ethernet (EEE)
• iSCSI: No
• WoL: Yes
• Jumbo Frames: YES
• DPDK: Yes
• PXE: Yes
• FCoE: No

Package Contents

• 1 * PCIE RTL8125 2.5G Network Adapter
• 1 * User Manual
• 1 * Driver CD
• 1 * Low Profile Bracket
