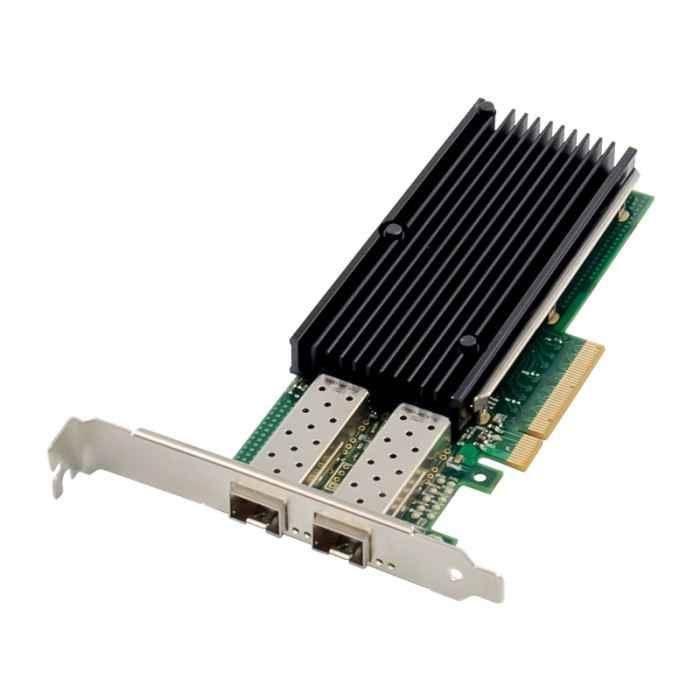

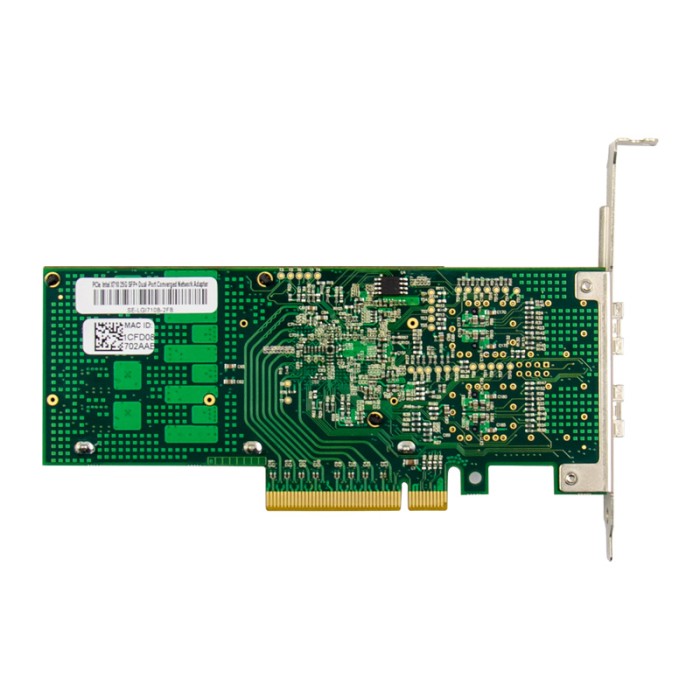

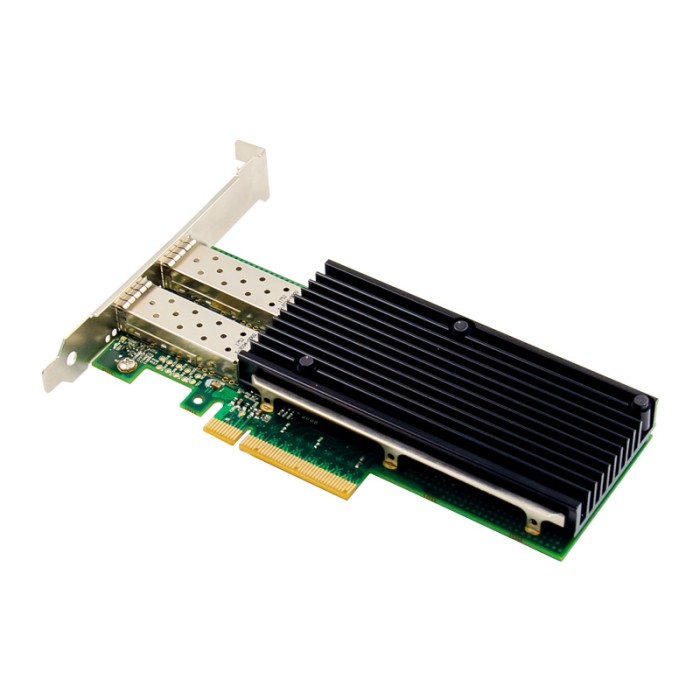

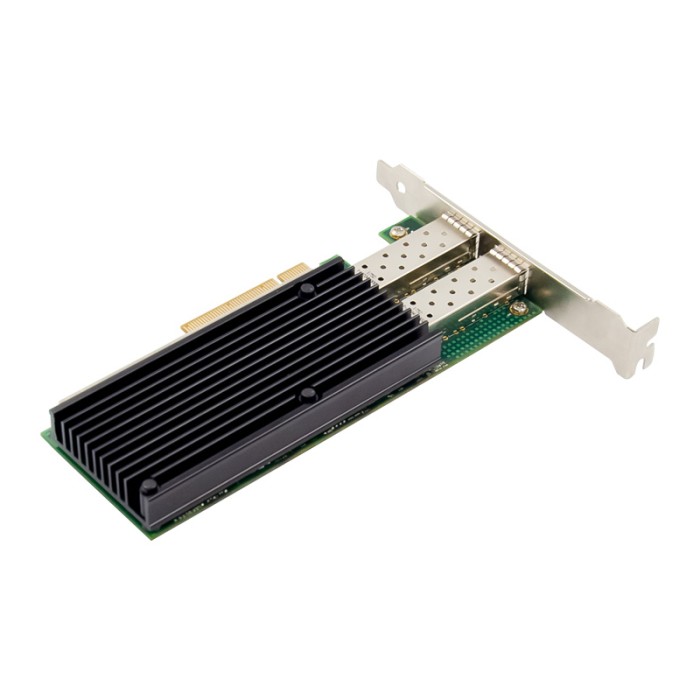

PCIe x8 Dual SFP28 Port 25GbE Network Card with Intel XXV710-AM2 Chip

The Dual SFP28 Port 25 Gigabit Ethernet Network Card is with Intel Virtualization Technology for Cloud and Enterprise data centers. The Intel Ethernet Controller XXV710 is a new addition to the Intel Ethernet 700 Series supporting 1/10/25GbE, providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.

Features

• Dual-port 25GbE Fiber Server adapter
• PCI Express* (PCIe) v3.0, x8
• Network Virtualization offloads including VXLAN, GENEVE, NVGRE, MPLS, and VXLAN-GPE with Network Service Headers (NSH)
• Intel® Ethernet Flow Directorfor hardware based application traffic steering
• Dynamic Device Personalization (DDP) enables increased packet processing efficiency for NFV and Cloud deployments
• Data Plane Development Kit (DPDK) optimized for efficient packet processing
• Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
• Intelligent offloads to enable high performance on servers with Intel® Xeon® processors
• I/O virtualization innovations for maximum performance in a virtualized server

Specifications

• Controller: Intel XXV710-AM2
• Bus Type: PCI Express 3.0 x8, compatible with x16
• Connector: 2 * SFP28 ports
• Data Rate: 10000 / 25000 Mbps

• Jumbo Frame: up to 9.5 KB
• Network Topology

• IEEE 802.3az Energy Efficient Ethernet, VXLAN / NVGRE, 802.1q VLAN
• IEEE 802.1Qbb, IEEE 802.1az, IEEE 802.1Qbg, IEEE 802.1Qbh
• SFP28 Fiber 25Gigabit Ethernet, 25Gbase-SR (850nm LAN PHY)
• SFP28 Fiber 25Gigabit Ethernet, 25Gbase-LR (1310nm LAN PHY)
• Advanced Features: VXLAN, NVGRE, GENEVE, VXLAN-GPE+NSH, MPLS
• Physical Interfaces: Support PXE, Jumbo frame, iSCSI, DPDK, FCo, EWOL
• Additional Features

• VLAN Support
• Enhanced Transmission Selection (draft IEEE 802.1az)
• Jumbo Frame Support—Up to 9.5 KB (9728 Bytes)
• Priority Flow Control (draft IEEE 802.1Qbb)
• Data Center Bridging (DCB/DCB-X) Support; up to 8 traffic classes
• LED Indicators: 25G: Yellow LINK on; Blue ACT-blink
• Operating Systems

• Server 2003 / Server 2008 / Vista / Win 7 / Win 8 / Win 10 32-64bit
• Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2
• FreeBSD, Linux Stable Kernel, VMware ESX/ESXi

Package Contents

• 1 * PCIe Dual 25GbE SFP28 Server Fiber NICs XXV710-AM2
• 1 * User Manual
• 1 * Driver CD
• 1 * Low Profile Bracket
