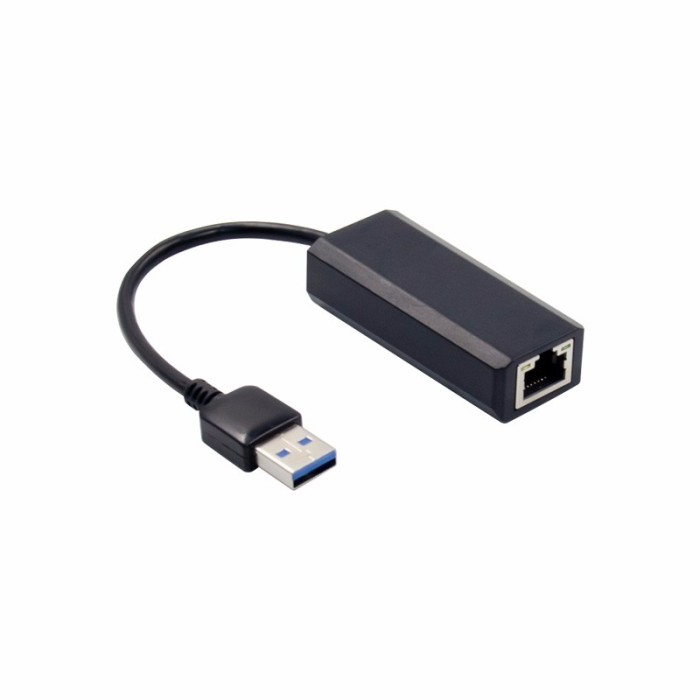

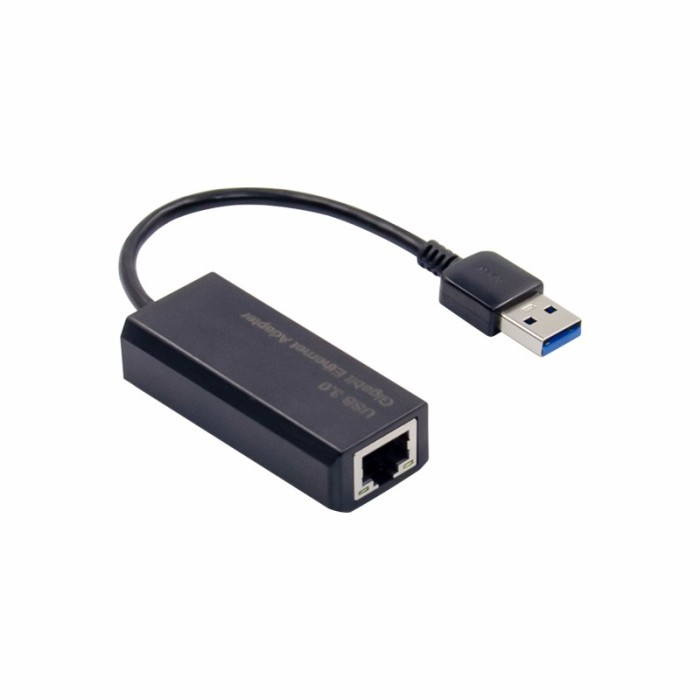

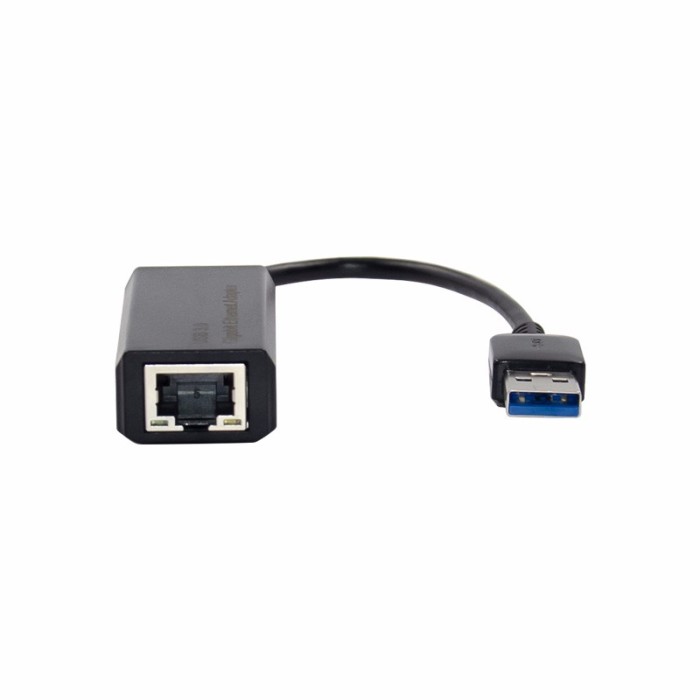

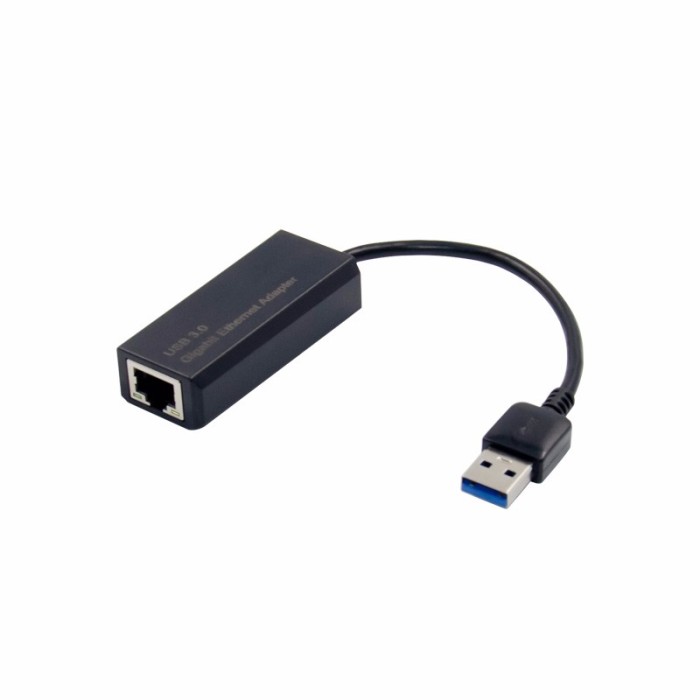

    • USB 3.0 Type A to RJ45 Gigabit Ethernet Network Adapter with Plastic Shell

    • Product Code: U3A-GE-1T-P
    • Availability: In Stock

    • $12.00

  • 0 reviews
  • Write a review

    • The U3A-GE-1T-P USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth, unlike USB 2.0 adapters.

    This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers a versatile Gigabit network solution for home and business users alike.

    Features

    • Integrates 10/100/1000Mbps Gigabit Ethernet MAC/PHY
    • Supports 10BASE-T ,100BASE-TX ,1000BASE-T with auto-negotiation
    • Fully compliant with IEEE 802.3/802.3u/802.3az-2010 (Energy Efficient Ethernet)
    • Supports full duplex operation with IEEE 802.3x flow control
    • Supports half duplex operation with back pressure flow control
    • Supports IEEE 802.1q VLAN Tagging
    • Supports 4KB jumbo frame
    • Bus-Powered, no need to connect external power source
    • Supports IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU loading, including IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 checksum check & generation
    • LEDs indicating for Speed and Link status
    • Fully Plug and Play, Hot Swap compatible

    Specifications

    • Chipset: AX88179
    • Host Interface Type: USB Type-A (9 pin) USB 3.0 (5 Gbps)
    • Connector: 1 * RJ45
    • Date Rata: 10/100/1000Mbps
    • Power Source: USB Powered
    • Topology
      • 10BASE-T ,100BASE-TX ,1000BASE-T, IEEE 802.1Q VLAN, IEEE 802.3x flow control
      • IEEE 802.3, 802.3u and 802.3ab compatible, IEEE 802.3az (Energy Efficient Ethernet)
    • LED Indicator: Green :  Power LED ；   Yellow :  Link/Act LED
    • Material: Black Plastic Case

    OS Compatibility

    • Windows® XP, Vista, 7, 8, 8.1, 10
    • Windows® Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
    • macOS 10.6 to 10.15VLAN tagging is currently not supported in macOS
    • Linux Kernel 2.6.25 to 4.11.x LTS Versions only
    • ChromeOS 55+

    Package Contents

    • USB 3.0 Gigabit Adapter AX88179
    • Driver CD
    • Instruction Manual
    Specifications
    Chipset AX88179
    Bus Connector USB Type-A (9 pin) USB 3.0 (5 Gbps)
    Ports 1 * RJ45
    Max Data Rate 1000 Mbps
    Networking Protocol IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.1q VLAN tagging
    Cabling Type 10BASE-T ,100BASE-TX ,1000BASE-T
    OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10 Windows® Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15VLAN tagging is currently not supported in macOS Linux Kernel 2.6.25 to 4.11.x LTS Versions only ChromeOS 55+
