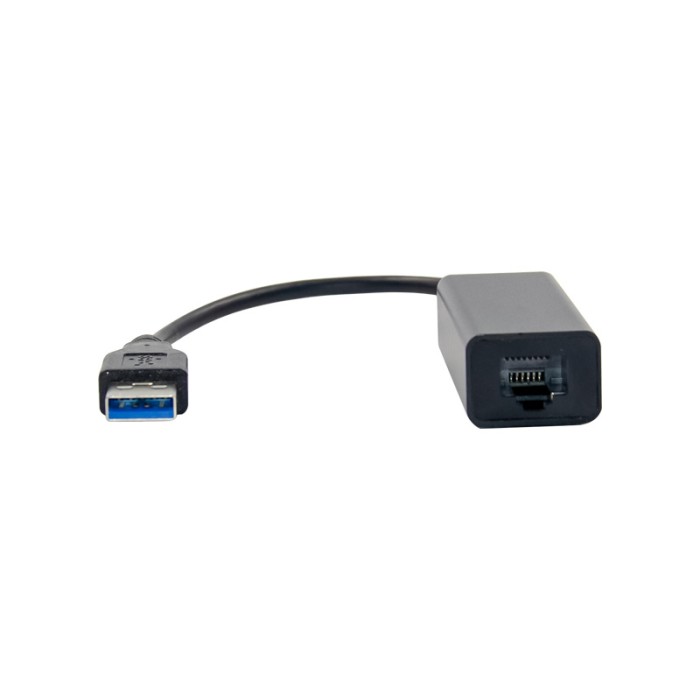

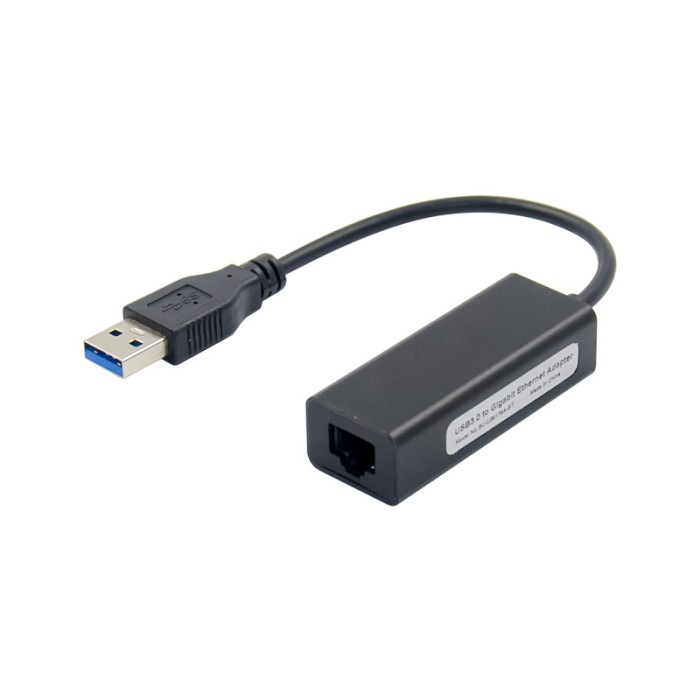

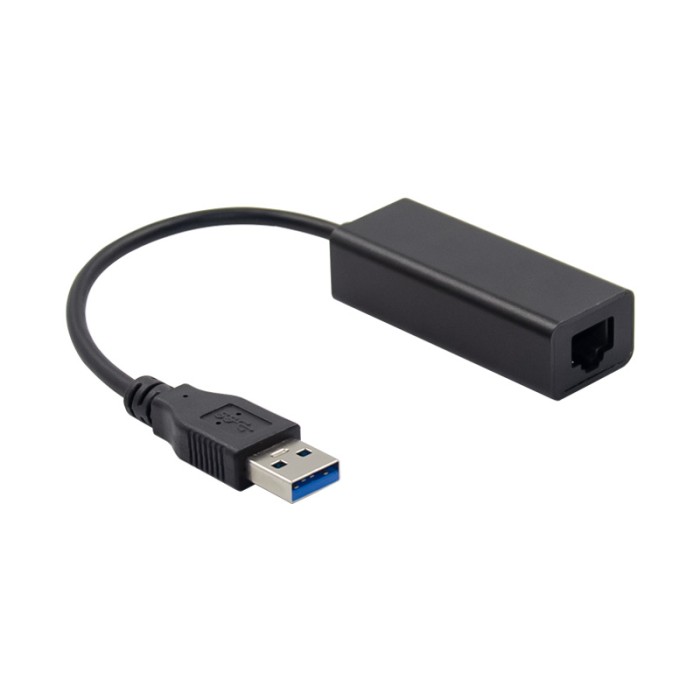

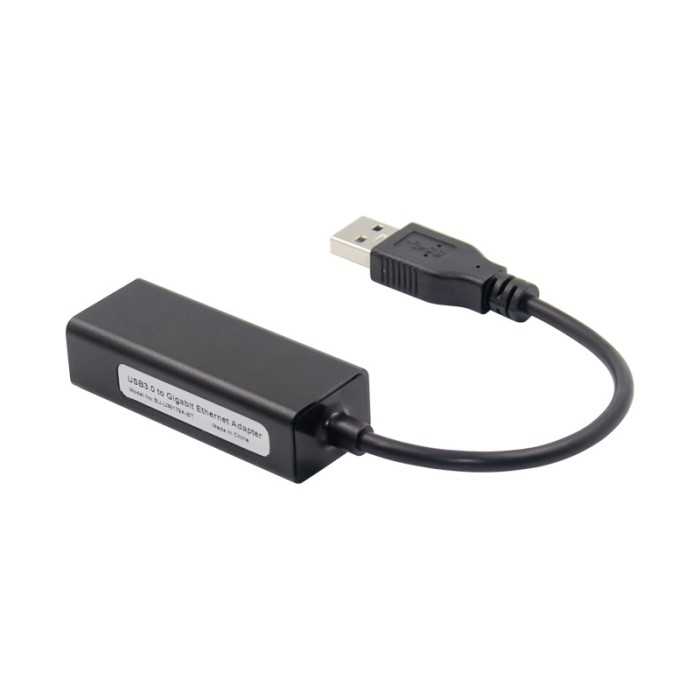

USB 3.0 Type A to RJ45 Gigabit Ethernet Network Adapter

The U3A-GE-1T-8153 USB 3.0 to Gigabit Ethernet Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth, unlike USB 2.0 adapters.

This compact USB 3.0 network adapter is backward compatible with older USB 2.0/1.x computer systems (speed limited by USB bus), making it the ideal portable replacement network adapter or laptop accessory. Plus, with support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), the adapter offers a versatile Gigabit network solution for home and business users alike.

Features

• Easily adds a Gigabit Ethernet connection (RJ45) to your computer through a USB 3.0 port, offers a fast and reliable network connection
• Stowable cable and light weight design makes it a perfect LAN accessory to take with you on-the-go, provides instant wired Ethernet connection
• Supports full duplex with flow control, half duplex with back pressure operation, and high performance packet transfer rate
• Supports MDI/MDIX auto-crossover, Wake-on-LAN, IEEE 802.3az (EEE) and Jumbo Frame
• Built-in power and data diagnostic LEDs for quick monitoring of connection and performance

Specifications

• Chipset: Realtek RTL8153
• Bus Type: 1x 9-pin, USB 3.0, A-Type, Male
• Connector: 1x 8-pin, RJ45, Network, Female
• Compliant with Universal Serial Bus 3.0 Specification and backward compatible with USB 2.0
• Standard: Compatible with IEEE 802.3 and 802.3u
• Network transfer rate: 10/100/1000 Mbps
• Product
• Overall length (including the embedded USB cable): 5.12" (130mm)
• Dimensions (housing only): 2.76" (L) x 0.63" (H) x 1.03" (W)
• Weight: 0.07 lbs
• Color: Black
• Housing material: Plastic
• Environmental conditions:

• Operating temperature: 32 to 122 degrees F
• Storage temperature: 14 to 140 degrees F
• Relative humidity: 5 to 85% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
