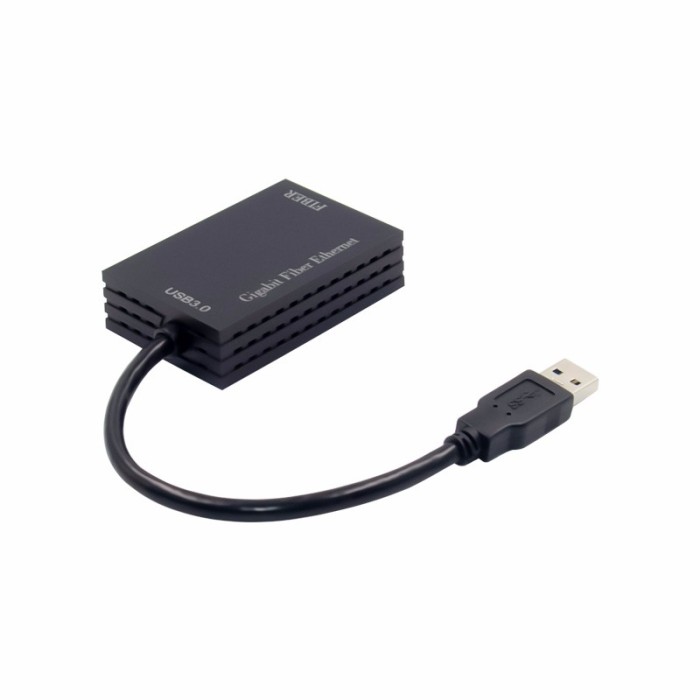

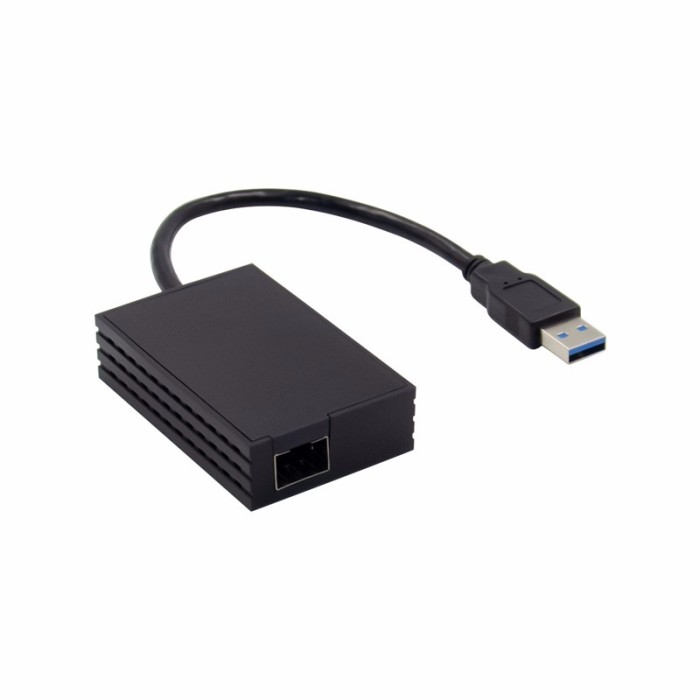

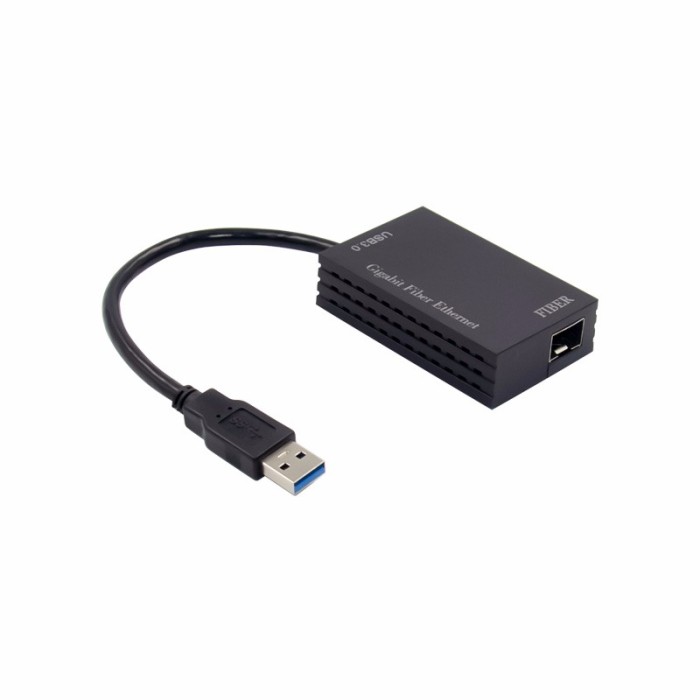

USB 3.0 Type A to SFP Gigabit Ethernet Adapter, USB 3.0 to Fiber Optic Converter

This USB 3.0 to fiber-optic converter lets you utilize the USB 3.0 (Type-A) port on your laptop or tablet to provide a secure fiber network connection. Windows® and Mac compatible, the network adapter provides a Gigabit Ethernet (1000Mbps) optical network connection for portable laptops or tablets, or systems without expansion slots.

The open SFP slot enables you to use your preferred SFP transceiver module to meet your networking needs - use an SFP with your desired wavelength, distance, and connection type to achieve an efficient network solution. (SFP sold separately.)

This USB to fiber-optic converter provides reliable fiber connectivity while protecting your network from problems with electronic interference - a common issue with copper Ethernet networks. Fiber-to-the-desk connectivity (FTTD) maximizes network security, reducing the risk of data leaks for sensitive information, without compromising network speed and reliability.

Get up and running quickly. The USB to fiber-optic converter supports certified drivers for Windows, Mac and Linux®. Once the adapter is plugged into a USB port, you simply install the drivers and the adapter is ready to transmit over a fiber network.

Features

• Adds a Fiber SFP Gigabit Ethernet connection through a USB 3.0 Type-A port of your Windows or Mac system
• USB 3.0 compatibility ensures high performance packet transfer rate
• Compatible with 1000Base-SX/LX and SFP Multi-Sourcing Agreement (MSA) standards
• Fiber optics protects your network connection from electronic interference which is common with RJ45 CAT cabling
• Full duplex with flow control and half duplex with back pressure operation
• MDI/MDIX auto-crossover, Wake-on-LAN, IEEE 802.3az (EEE) and Jumbo Frame
• Supports LPM (Link Power Management) with power down/link down power saving

Specifications

• Chipset: Realtek RTL8153
• Bus Type: 1 * 9-pin, USB 3.0, Type-A, Male
• Connector: 1 * SFP slot
• Compatible with IEEE802.3az-2010 & IEEE 802.1Q
• Network Transfer Rate: 10/100/1000 Mbps
• Supports CDC-ECM
• Power Source: USB-Powered
• Supports power Down / Link down power saving

Performance

• Maximum Data Transfer Rate: 1000 Mbps
• Compatible Networks: 1000 Mbps (1 Gbps)
• Full Duplex Support: Yes
• Jumbo Frame Support: 9K max.
• Promiscuous Mode: Yes

OS Compatibility

• Windows® 7, 8, 8.1, 10
• Windows® Server 2008, 2012, 2016, 2019
• macOS 10.9 - 10.14, 11.0
• Linux® kernel 3.5 to 4.11.x, LTS versions only

Product

• Overall length (including the embedded USB cable): 10.03"
• Dimensions: 2.80" (W) x 0.71" (H) x 1.77" (D)
• Weight: 0.11 lbs
• Color: Black
• Housing material: Plastic
• Environmental conditions:
• Operating Temperature: 0°C ~ 60°C (32° ~ 140°F)
• Storage Temperature: -10° ~ 70°C (14° ~ 158°F)
• Relative Humidity: 5% ~ 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 1 year
• Country of Origin: China

Package Contents

• USB 3.0 to SFP Gigabit Ethernet Adapter
• Quick Start Guide
• Driver CD
