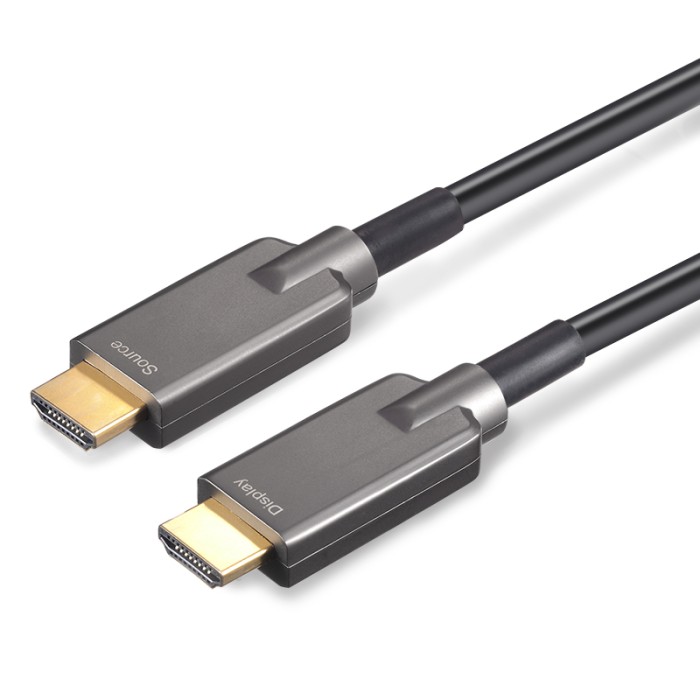

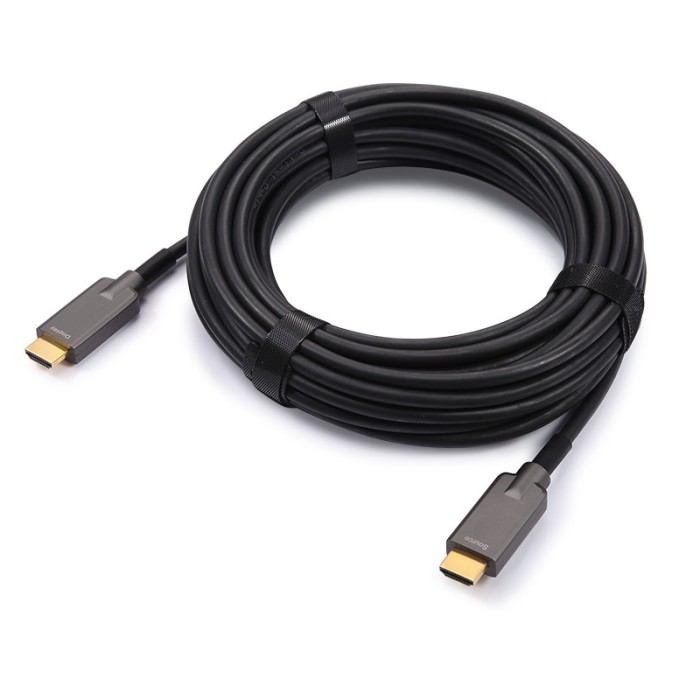

Armored HDMI 2.0 AOC, Type A to Type A, Hybrid 18Gbps 4K60 HDMI 2.0 Active Optical Cable

The armored HDMI 2.0 Active Optical Cable is designed for robust use in challenging environments. Stainless steel tubing with kevlar elements provides a 500Kg crush-resistant armor and strength that can stand up to the most robust applications. Industrial grade TPU jacket offers an operating temperature of -40℃ ~80℃. Ideal for Displays in Medical Surgeries, Military, Shipboard, Temporary Staging, or anywhere an extended HDMI cable exists in a challenging environment.

The armored HDMI 2.0 AOC supports HDMI Data Rate 6Gbps per channel, total 18Gbps with light weight, flexible and ultra-small long-term bending radius (45mm) hybrid cable. With our advanced optical engine embedded, this HDMI Hybrid Cable provides full HDMI signal integrity, support up to 100M/328FT maximum length.

Our HDMI active optical cables are open to all custom possibilities, from interior to exterior to packaging. All cables are tested with our advanced in-house equipment for the best performance and durability.

Key Features

• Up to 100m Maximum Length (Custom Length Available)
• Low Power Consumption: 250mW (max)
• Plug and Play
• Compatible with HDMI 2.0 standard
• Support ARC up to 100M/328FT
• Support HDCP1.4/2.2
• Self-detecting function for EDID information
• No loss of signal – delivering crystal clear digital images instant
• Supports computer resolutions to 1080P and 4K2K(60P)
• Hybrid optical cable with fiber and copper wire
• Zinc Alloy Shell Anti-electromagnetic interference increase wear resistance and improve service life
• With helical steel tape armored protective layer,the cable has excellent side compression resistance,excellent flexibility and bending performance
• It adopts polyurethane(TPU) outer sheath, which is resistant to ultraviolet radiation,acid,alkali,oil,fire and flame retardant
• Make cables suitable for harsh environmental applications
• With good waterproof function,prevent outdoor rain water from entering into the joint,resulting in electrical defects
• With good cable pulling function,the cable will not be damaged to the connector internal fiber and copper cable

Applications

• Permanent and Temporary Staging
• Medical Equipment Displays
• Shipboard Displays
• Aerospace Displays
• Digital or LED Signage
• TV Broadcast Station
• Security systems

Certifications

Warranty

• 1 Year Warranty

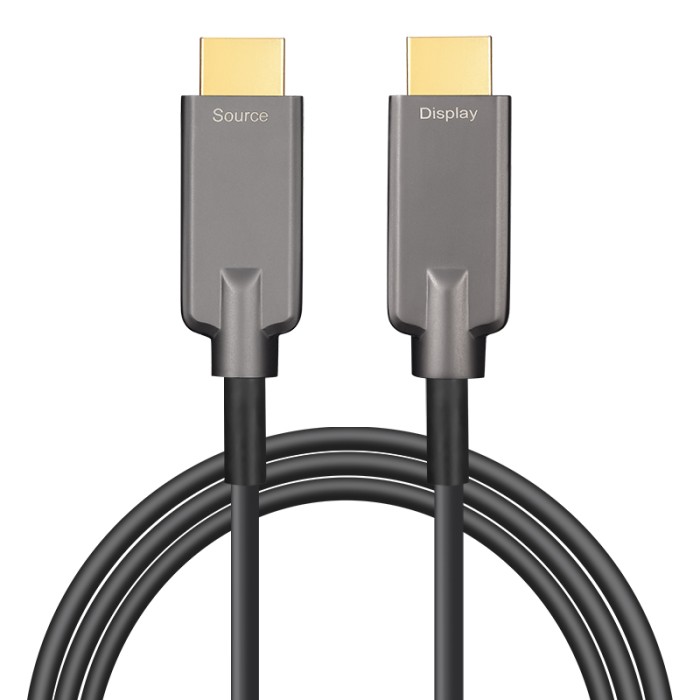

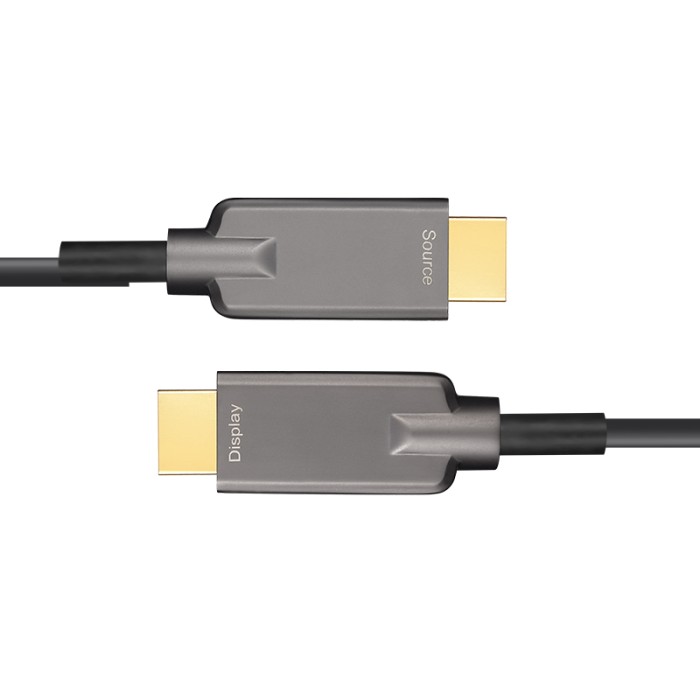

NOTE: This Armored HDMI 2.0 active optical cable is directional. Each end of the cable is marking “Source” and “Display” to indicate the direction of the signal flow. Always test the cable to be sure that the signal flow is correct and for device compatibility before permanently installing in a wall or ceiling.
