HDMI 2.1 AOC, Type A to Type A, Hybrid 48Gbps 8K60 HDMI 2.1 Active Optical Cable

The HDMI 2.1 AOC is an active optical HDMI 2.1 cable, designed for transmission of the next generation of 8K video content. It is able to transmit resolutions up to 8K (7680 x 4320p) 4:4:4 at 60 Hz with a bandwidth of 48 Gbps via OM3 optical fiber technology, eliminating the possibility of electronic interference. It is backward compatible with HDMI 2.0 and HDMI 1.4, guaranteeing an optimal and future proof solution for any kind of installation.

The HDMI 2.1 active optical cable is ready for future HDCP 2.3 content encryption, compatible with all current and emerging HDR standards (HLG, HDR-10 and HDR-10+, Dolby Vision, Perceptual Quantizer and SL-HDR-1) and compatible with eARC HD audio standard.

Features

• HDMI2.1 specification with 48Gbps mass-capacity bandwidth. Backward compatible
• Up to 100m Maximum Length
• Designed for transmitting up to 8K@60Hz unparalleled visual, as well as VR and 3D display signal in a lossless way even a long distance
• Refresh rate at 120Hz while under 4K, ultra-fast motion UHD images to be crisp and razor-sharp, and higher refresh rate when using lower resolution
• With Dynamic HDR, contrast, depth, brightness and wider color gamut are shown at ideal values on a frame-by-frame basis
• With eARC, connectivity is enhanced and simplified for greater ease of use of multiple components discovery and audio optimization
• Support the high-bitrate audio formats up to192kHz, 24-bit, and uncompressed 5.1 and 7.1, Dolby specific lossless audio formats, and 32-channel uncompressed audio
• With VRR, gameplay will be more fluid and better detailed with nearly zero lag, judder and frame tearing
• Support EDID incl. self-detecting function, ALLM, QMS and QFT
• Made with strong zinc-alloy housing and corrosion-resistant gold-plated connector
• Plug and Play
• High resistance against surrounding electromagnetic interference. Safe for everyone via the nil-radiation environment
• Hybrid optical cable with fiber and copper wire

Applications

• Digital Signage
• LED signboards in streets and in stadiums
• Medical Imaging Equipment
• Airplane On-board Video System
• Home Theater
• Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer
• TV Broadcast Station
• Conference Room Video Equipment
• Security systems

Certifications

Warranty

• 1 Year Warranty

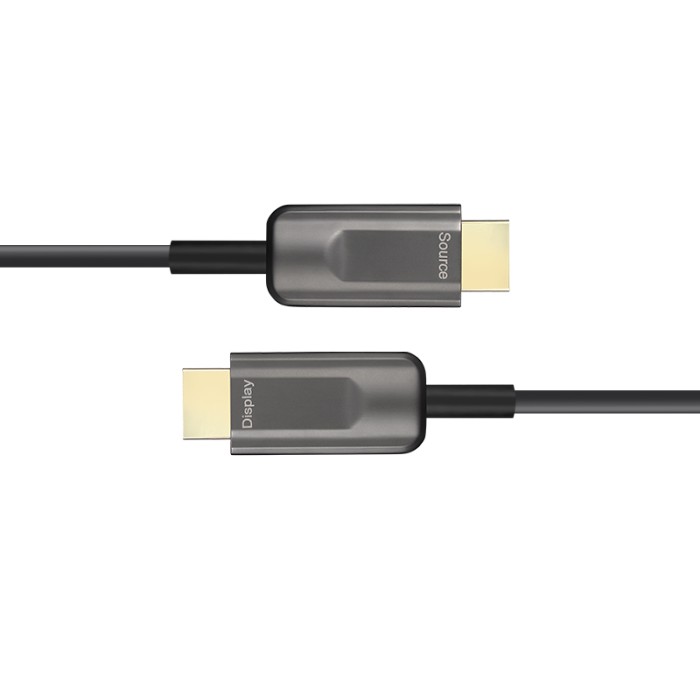

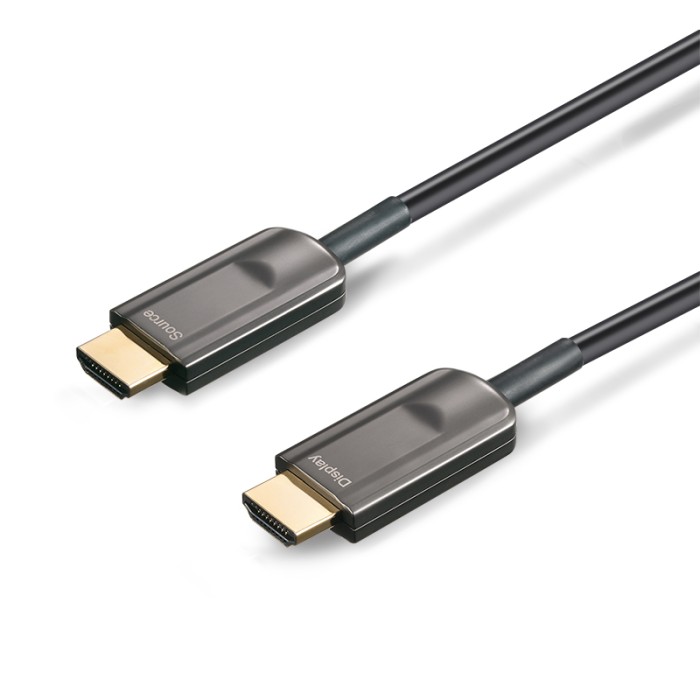

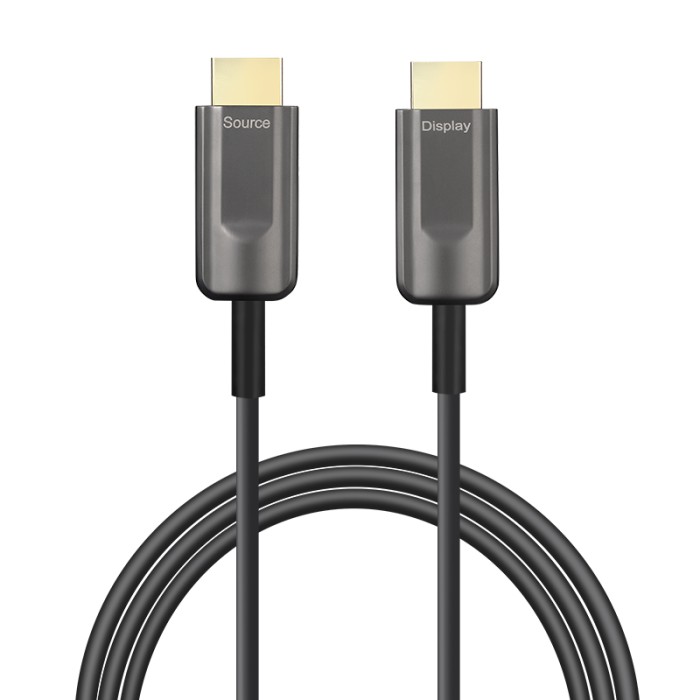

NOTE: This HDMI 2.1 active optical cable is directional. Each end of the cable is marking “Source” and “Display” to indicate the direction of the signal flow. Always test the cable to be sure that the signal flow is correct and for device compatibility before permanently installing in a wall or ceiling.
