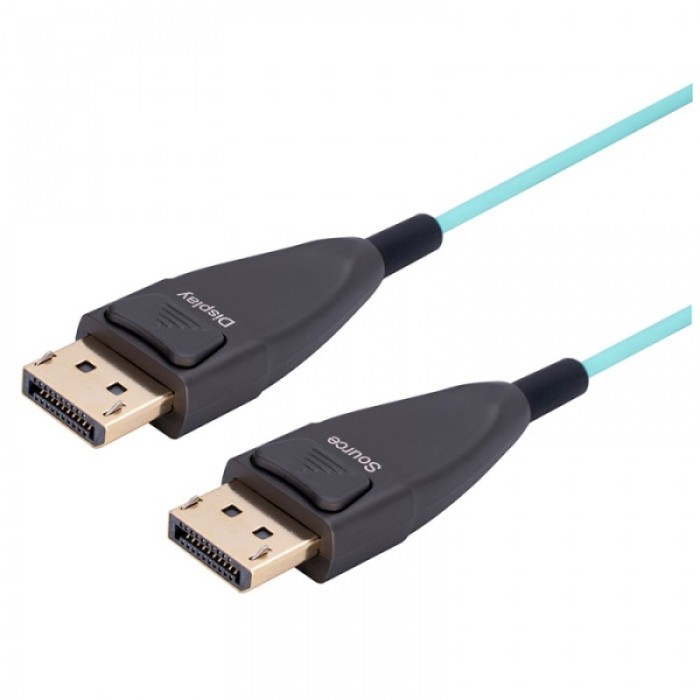

Pure Fiber DisplayPort 1.4 Active Optical Cable


  • Product Code: AOC-PF-DP14
  • Availability: In Stock

  • $295.00


Available Options




This AOC-PF-DP14 is a pure fiber DisplayPort 1.4 active optical cable (AOC) with high performance, low power consumption. Using optical fiber to replace copper wire as the high-speed signal transmission medium, the AOC-PF-DP14 can perfectly transmit 8K UHD image up to more than 100 meters. Compared with the traditional copper wire, this AOC-PF-DP14 AOC is much longer, softer, lighter, with better signal quality and perfect EMI/EMC feature. Compared with other DisplayPort optical fiber transmission solution, the AOC-PF-DP14 AOC is easy to use and has perfect compatibility.

Features
  • Support 8K@60Hz, Supports HBR3, HDCP 1.4 / 2.2; very good compatibility
  • Support DP1.4 standard, bandwidth can reach 8.1 Gbps per chanel, 32Gbps total
  • Support length up to 100m max, length custom is available
  • Pure Fiber, much more slim and light
  • OD 3.0 mm, very flexible
  • No RFI / EMI profile for sensitive applications
  • Request two side devices self-powered

Specifications
  • Connector Type: DP Type A
  • Transmission Bandwidth: 32.4Gbps
  • Resolution: 720P, 1080i, 1080P 3D,4K @120Hz, 8K @60Hz 4:4:4
  • Wire Specifications: 6 Optical fibers:50/125 um OM3
  • LD/PIN: 850nm VCSEL/PIN
  • Power: DP1.4 +3.3V provide by device
  • Power Consumption: ≤1W
  • Transmission Length: Over 100m
  • Flame Retardance (A single vertical): Meet UL13 standards
  • Environmental Protection Requirements: Comply with RoHS directive
  • Stretch (Short-term) (N): 400
  • Stretch (Long-term) (N): 200
  • Squash (Short-term) (N/100mm): 600
  • Squash (Long-term) (N/100mm): 300
  • Minimum Bending Radius (dynamic) (mm): 20D
  • Minimum Bending Radius (static) (mm): 10D
  • Storage Temperature: -20 ~ 70°C
  • Operating Temperature: 0 ~ 70 °C

Applications
  • Home Theater
  • High definition Video Meeting System
  • Medical Video System
  • High definition Video Surveillance System
  • Digital Signage and TV Wall
