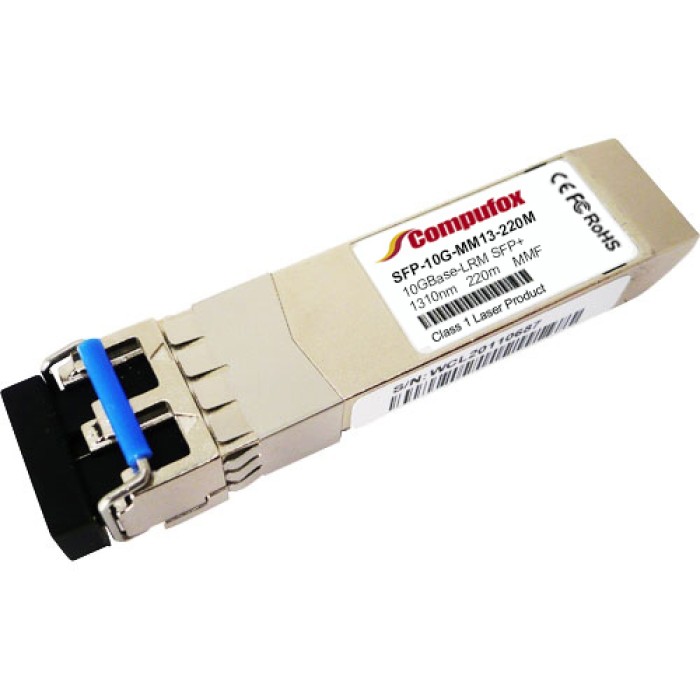

10GBASE-LRM SFP+ Optical Transceiver (MMF/SMF, 1310nm, 220m/300m, LC, DOM)
- Product Code: SFP-10G-MM13-220M
- Availability: In Stock
-
$22.00
Available Options
10GBASE-LRM SFP+ Optical Transceiver Module (MMF/SMF, 1310nm, 220m/300m, LC, DOM).
Features
- Form Factor: SFP+
- Data Rate (max): 10.5 Gb/s
- Distance (max): 220M
- Transmitter: FP 1310nm
- Receiver: PIN
- Digital Diagnostic: Yes
- Connector: Duplex LC
- Cable Type: MMF
- Wavelength: 1310nm
- Operating Temperature: Commercial (COM) / Industrial (IND)
| Specifications | |
| Form Factor | SFP+ |
| Max Data Rate | 10.3125Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 220m @ OM3 MMF, 300m over SMF |
| Connector | Duplex LC |
| Media | MMF/SMF |
| Transmitter Type | FP 1310nm |
| Receiver Type | PIN |
| TX Power | -6.5~-0.5dBm |
| Receiver Sensitivity | < -8.4dBm |
| Digital Diagnostic | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | SFP+ MSA Compliant, CPRI, Ecpri |
| Warranty | 1 Year Warranty |
