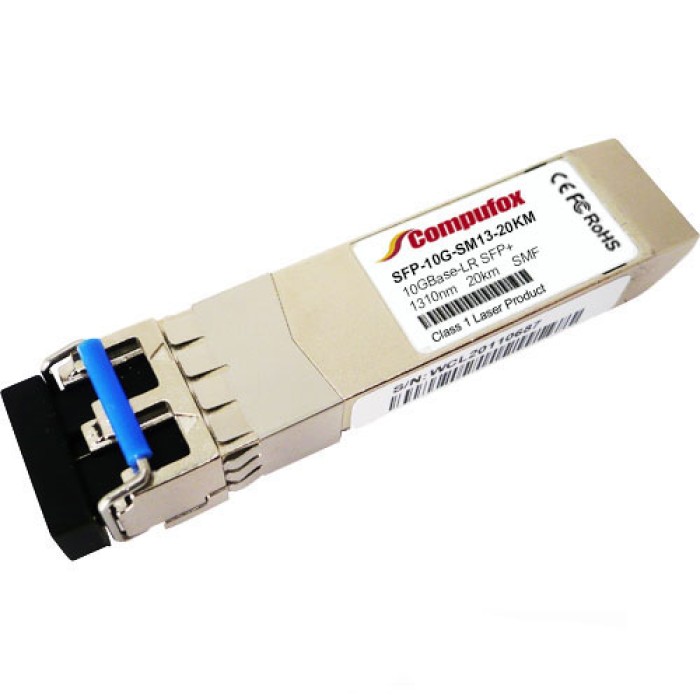

10GBASE-LR SFP+ Optical Transceiver (SMF, 1310nm, 20km, LC, DOM)
- Product Code: SFP-10G-SM13-20KM
- Availability: In Stock
-
$27.00
Available Options
10GBASE-LR SFP+ Optical Transceiver Module (SMF, 1310nm, 20km, LC, DOM).
Features
- Form Factor: SFP+
- Data Rate (max): 10.5 Gb/s
- Distance (max): 20KM
- Transmitter: 1310nm DFB
- Receiver: PIN
- Digital Diagnostic: Yes
- Connector: Duplex LC
- Cable Type: SMF
- Wavelength: 1310nm
- Operating Temperature: Commercial (COM) / Industrial (IND)
| Specifications | |
| Form Factor | SFP+ |
| Max Data Rate | 10.3125Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 20km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB 1310nm |
| Receiver Type | PIN |
| TX Power | -8.2~0.5dBm |
| Receiver Sensitivity | <-14.4dBm |
| Digital Diagnostic | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
| Warranty | 1 Year Warranty |
