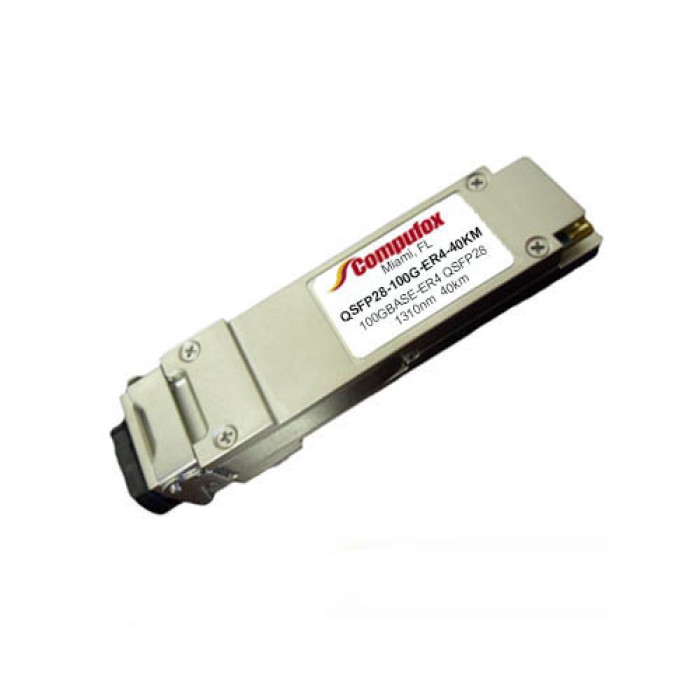

100GBase-ER4 QSFP28 Optical Transceiver (SMF, 1295nm to 1309nm, 40km, LC, DOM)
- Product Code: QSFP28-100G-ER4-40KM
- Availability: In Stock
-
$1,995.00
Available Options
100GBase-ER4 QSFP28 Optical Transceiver Module (SMF, 1295nm to 1309nm, 40km, LC, DOM).
Very Important: Requires the use of FEC on the host platform. Without FEC, the reach is 30km.Please Note: When transmit distance is less than 40km, please use appropriate attenuator according to the transmit distance to assure the transceivers work.
Features
- Form Factor: QSFP28
- Data Rate (max): 100Gb/s
- Wavelength: 1310nm
- Max Cable Distance: 40km
- Connector: LC duplex
- Cable Type: SMF
- Transmitter Type: 4x EML
- Receiver Type: APD
- TX Power: -2.9~4.5dBm
- Receiver Sensitivity: <-20.9dBm
- DDM/DOM: Yes
- Commercial Temperature Range: 0 to 70°C (32 to 158°F)
- Protocols: 100G Ethernet, MSA Compliant
