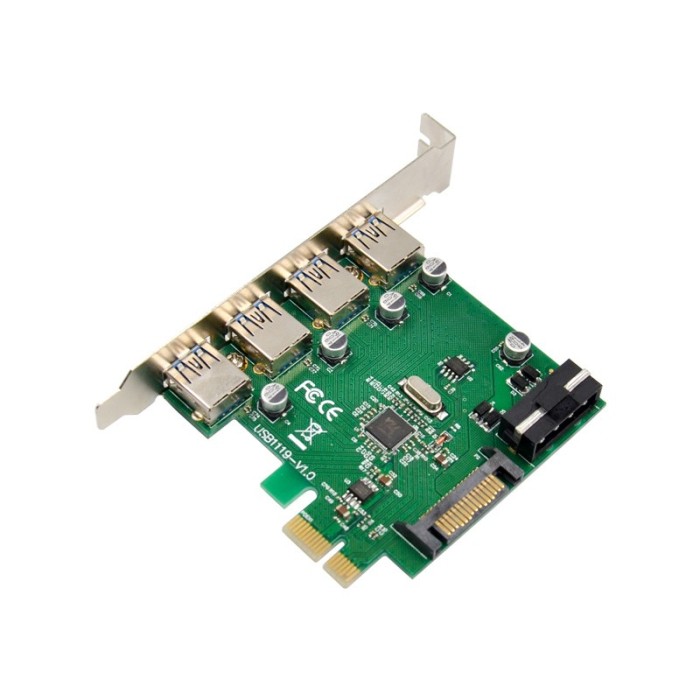

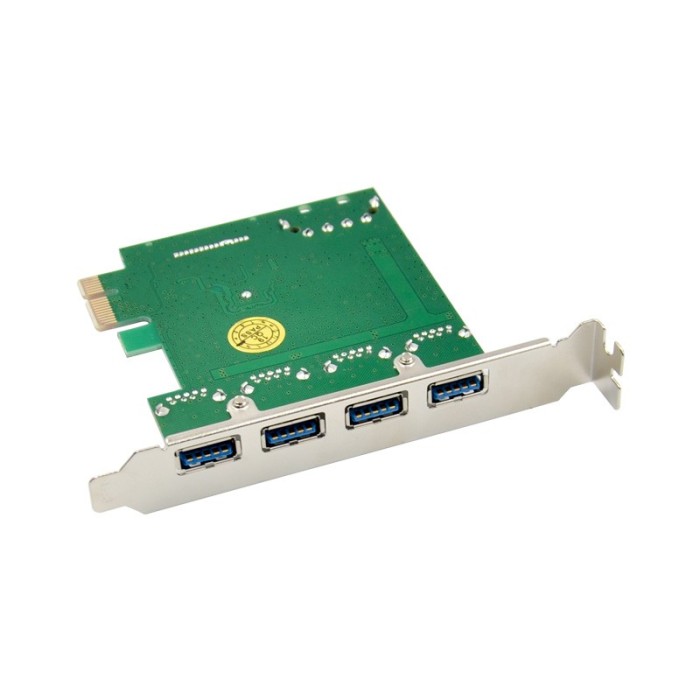

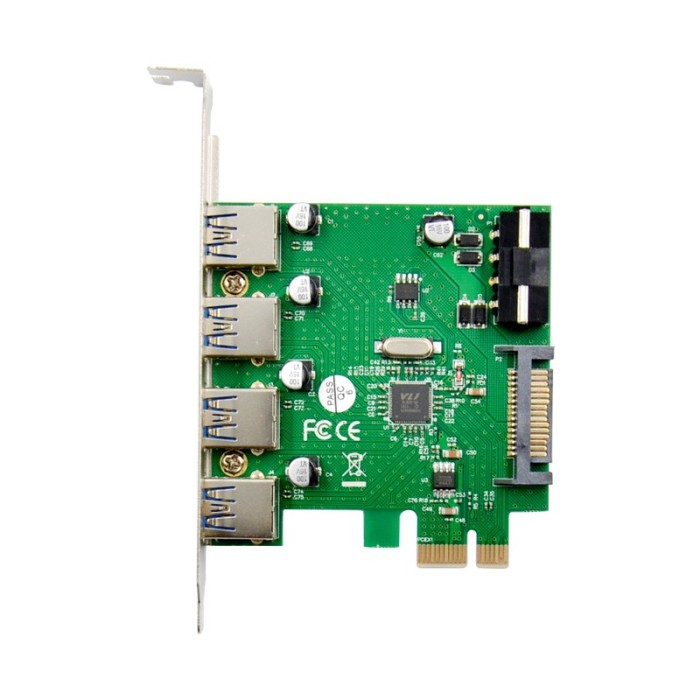

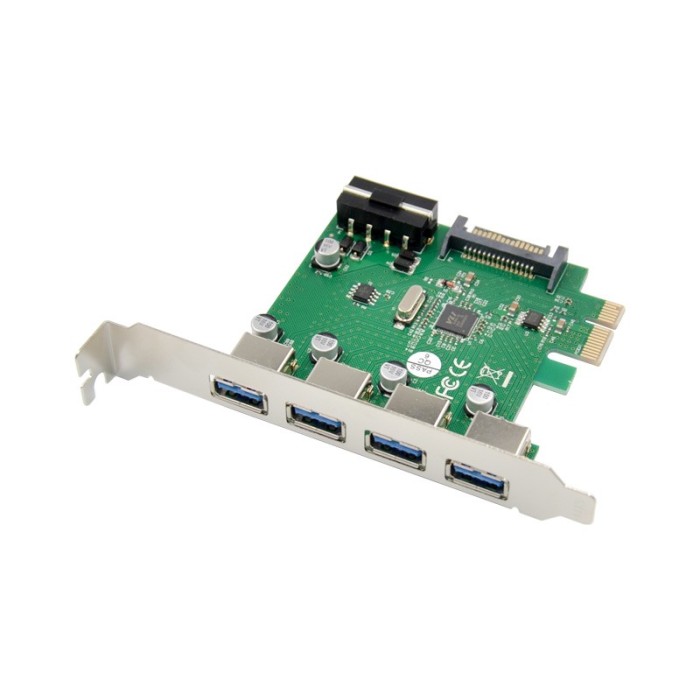

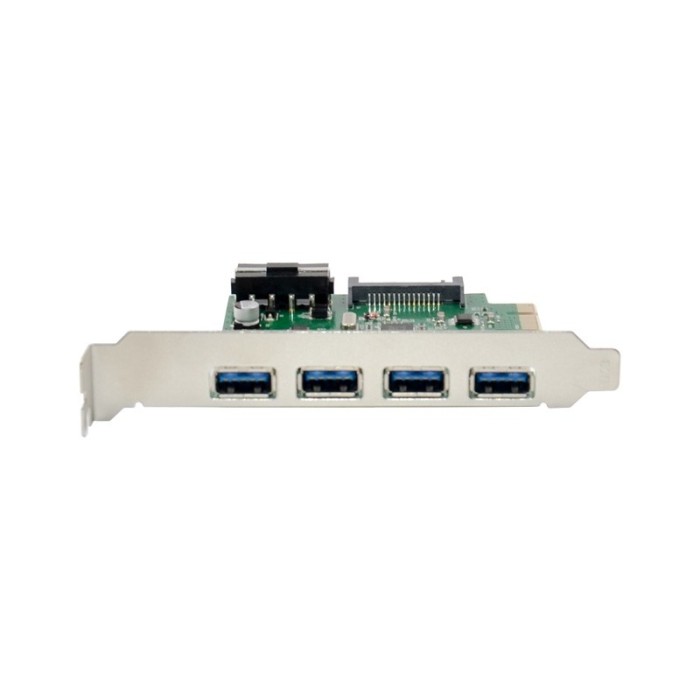

PCIe x1 4-port USB 3.0 Type-A USB Host Card with VIA VL805 Chipset

The PX1-U30-4A-805 PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices. With a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.

Features

• Add four SuperSpeed USB 3.0 ports to your PCIe-enabled desktop PC
• Works with high-bandwidth USB 3.0 devices, such as external hard disks, high resolution webcam, video surveillance cameras, digital video cameras, multi-channel audio and more
• Supports data rate up to 5Gb/s and backward compatible with USB 2.0/1.1 devices
• Supports per port over-current protection

Specifications

• Chipset: VL805
• Bus Type: PCI-Express (PCIe) 2.0 x1
• External Ports: 4 * External USB Type-A (9 pin) USB 3.0 (5 Gbps)
• Internal Ports: SATA Power (15 pin)
• Data Rate: Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
• Function
• Max. 5V/900mA power output to each USB 3.0 Port
• Hot-swapping feature allows you to connect / disconnect devices without powering down the system
• OS Compatibility: Windows® 2000 / XP / 2003 / Vista / Windows 7/Windows8.x/Windows 10 32/64bit, Linux
• Environmental Conditions
• Operating temperature: 32 to 140 degrees F
• Operating humidity: 10% to 90% RH (non-condensing)
• Storage temperature: 14 to 176 degrees F
• Storage humidity: 10% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
