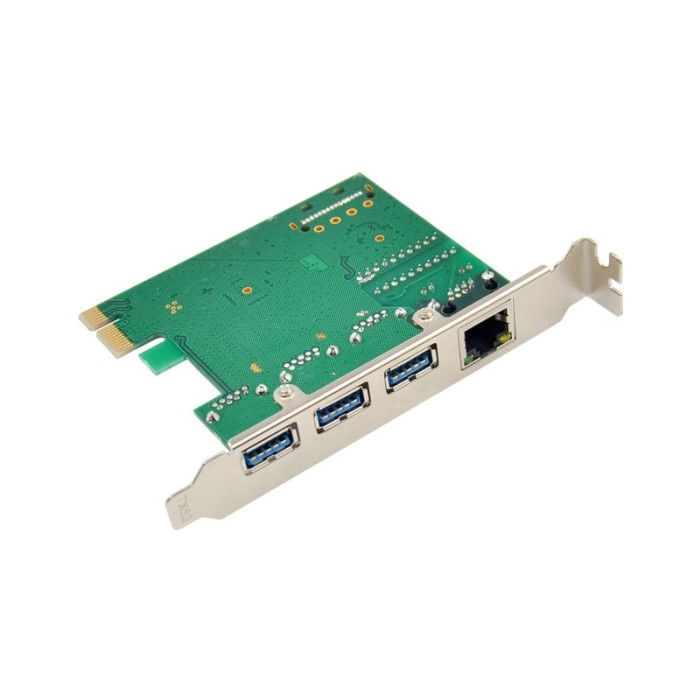

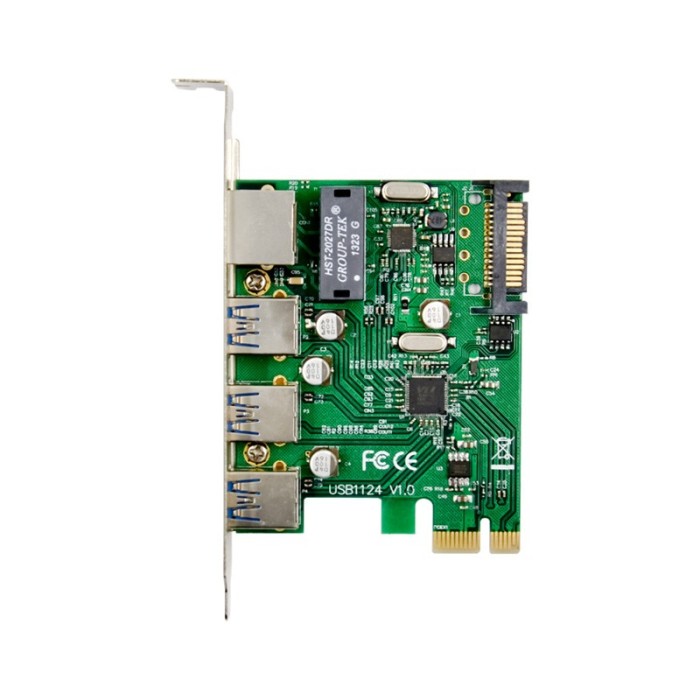

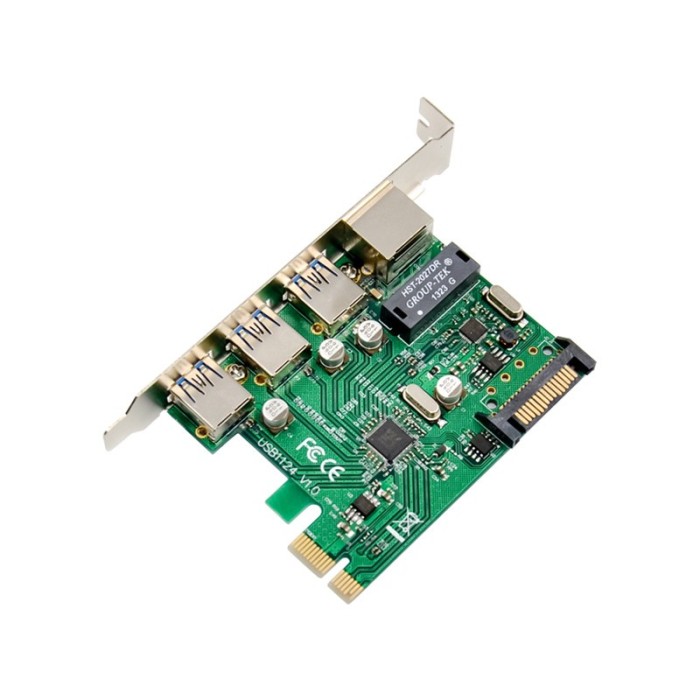

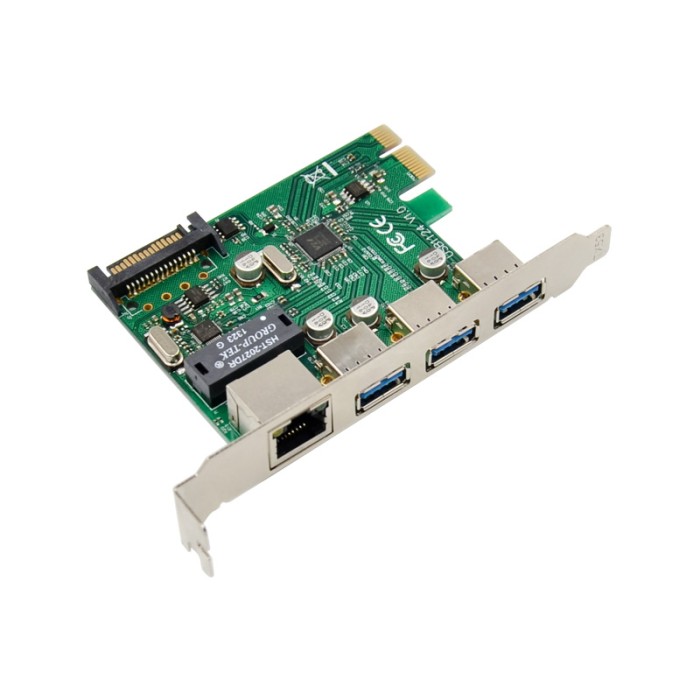

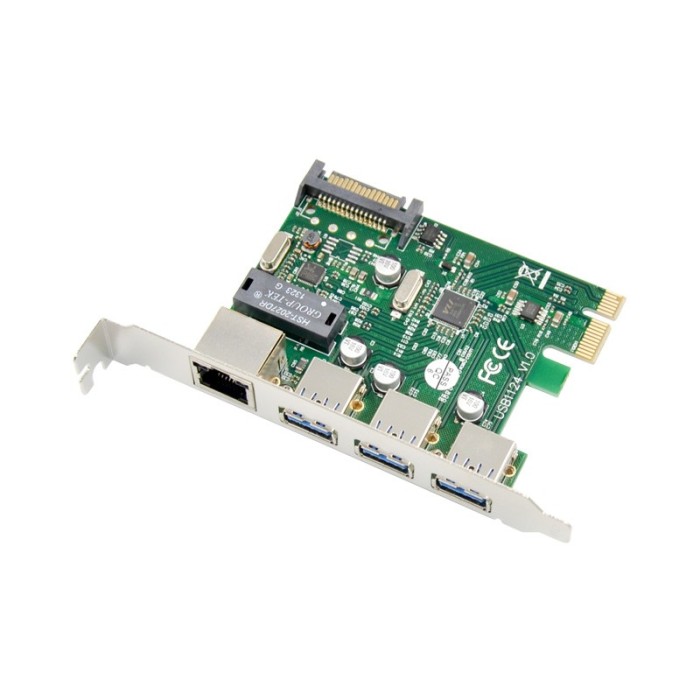

PCIe x1 3-Port USB 3.0 Type-A USB Host Card with Gigabit Ethernet LAN Card

This PCIe USB 3.0 card couples your peripheral and network connections into a single, scalable solution. By combining three USB 3.0 ports and one RJ45 port onto a single card, you only need a single PCIe slot for installation, which lets you free up space for other add-ons or upgrades and get more out of your desktop or server.

If you have separate cards for your USB and network connections, this versatile card overcomes the aggravation of running out of PCIe slots while helping to reduce clutter inside your PC. This dual-purpose card is perfect for building or upgrading your computer. It helps you save money by avoiding the additional costs of purchasing separate USB 3.0 and Gigabit Ethernet adapters.

The combo card makes it easy to connect peripherals such as your external hard drives or mobile devices. Plus, it’s backward compatible with USB 2.0 and 1.x, so you won’t have to replace all of your existing USB devices.

Features

• Adds three USB 3.0 ports and one Gigabit Ethernet (RJ45) port through an available PCI Express slot
• Supports USB data transfer rates up to 5Gb/s shared among the 3 USB ports, and backward compatible with USB 2.0/1.1 devices
• Provides reliable wired network connection with speeds up to 1000Mbps
• Supports UASP (USB Attached SCSI Protocol), dramatically increases data transfer speed when used with UASP supported storage enclosures with SSD media
• Each USB 3.0 port provides power output up to 5V/900mA
• Multi-port feature allows connecting up to 3 USB devices simultaneously avoiding frequent swapping in and out of your devices

Specifications

• Chipset
• USB 3.0: VIA VL805
• Ethernet: RTL8153
• Bus connector: PCI Express x1
• Compliant with PCI Express 2.0 specification
• Connectors
• 3 x 9-pin USB 3.0 Type A, Female
• 1 x 8-pin with LED, RJ45, Connector
• 1 x 15-pin SATA Power Connector
• Compliant with USB 3.0 Specification
• USB data transfer rate: Up to 5Gbps
• LAN data transfer rate: Up to 1Gbps
• USB power output: Up to 900mA
• Product
• Dimensions: 2.60" (L) x 0.79" (H) x 4.72" (W)
• Weight: 0.11 lbs
• Color: Black
• OS Compatibility
• Windows® XP, Vista, 7, 8, 8.1, 10
• Windows Server® 2008 R2, 2012, 2016, 2019
• Linux 2.6.31 to 4.11.x LTS Versions only
• Environmental conditions:
• Operating temperature: 32 to 140 degrees F
• Storage temperature: 14 to 158 degrees F
• Relative humidity: 5% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS
• Warranty: 1 year limited
• Country of origin: China

Package Contents

• 3 Port PCI Express USB 3.0 Card w/ Gigabit Ethernet
• Low-Profile Bracket
• Driver CD
• Instruction Manual
