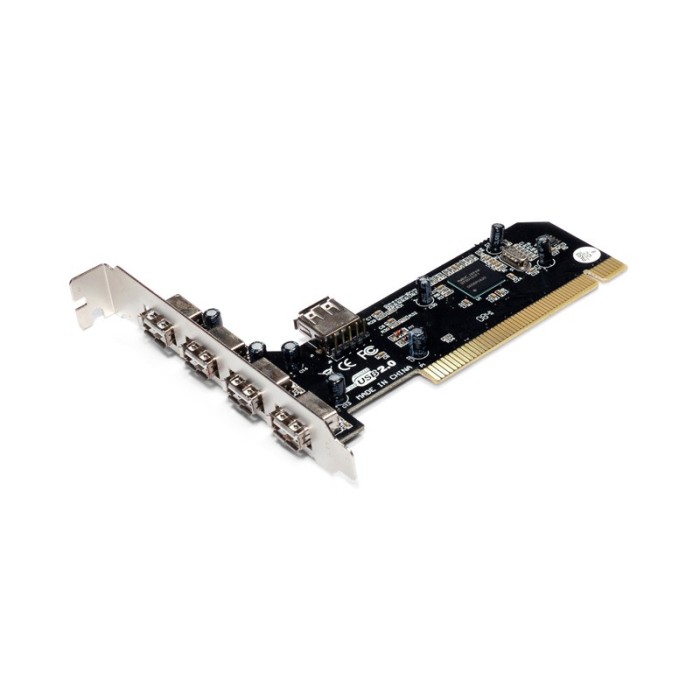

PCI 5-port USB 2.0 Host Card, 4 External USB-A & 1 Internal USB-A Port

This PCI-based High Speed USB 2.0 Adapter Card adds five USB 2.0 Type-A Female ports (1 internal, 4 external) to your PCI-capable PC.

Supported by popular operating systems including Windows 98/SE/ME/2000/XP/Vista, the PCI USB 2.0 card is a versatile solution that lets you add USB 2.0 connections without having to upgrade the system motherboard.

A convenient and time-saving solution, the PCI USB card is WHQL certified to simplify driver installation in Windows XP operating environments, and supports USB device hot-swapping - allowing you to connect/disconnect USB peripherals without having to power down the computer.

Features

• Provides four external USB 2.0 ports and one shared internal port
• Fully compliant with USB 2.0 specifications, with support for transfer rates up to 480 Mbps
• Backwards compatible with USB 1.0/1.1 devices
• Compliant with PCI revision 2.2 specification
• Supports up to 127 USB devices per port (requires additional USB hubs)
• Plug-and-Play and Hot-Swap compatible

Specifications

• Chipset: NEC 720201
• Bus Type: PCI / PCI-X (5 / 3.3V)
• Ports
• 1 * Internal Ports: USB Type-A (4 pin) USB 2.0
• 4 * External Ports: USB Type-A (4 pin) USB 2.0
• Maximum Data Transfer Rate: 480 Mbps
• Bracket: Standard Profile
• Industry Standards: EHCI, OHCI, PCI 2.2
• OS Compatibility
• Windows® 2000, XP, Vista, 7, 8, 8.1, 10
• Windows Server® 2008 R2, 2012, 2016
• Mac OS X® 10.6 to 10.10
• Linux 3.5.x to 4.11.x LTS versions only
• Environmental
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Humidity: 10~90% RH

Package Contents

• PCI USB card
• Instruction Manual
