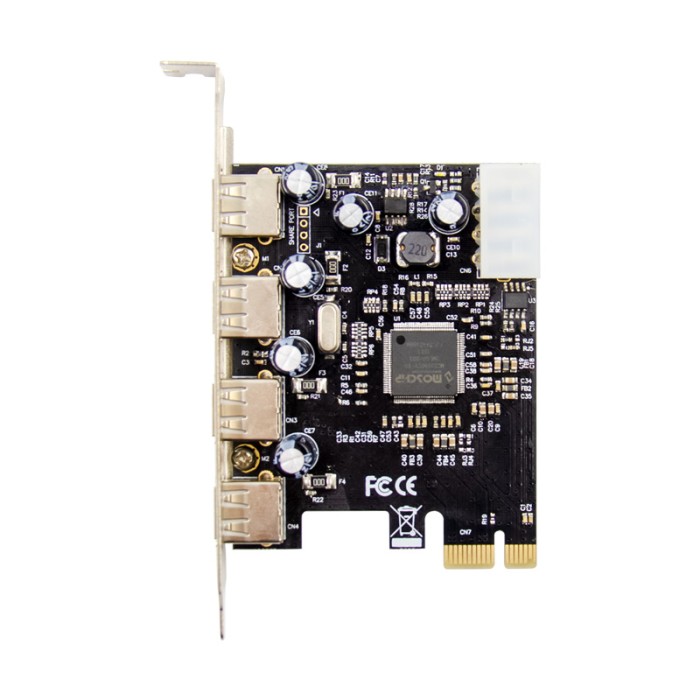

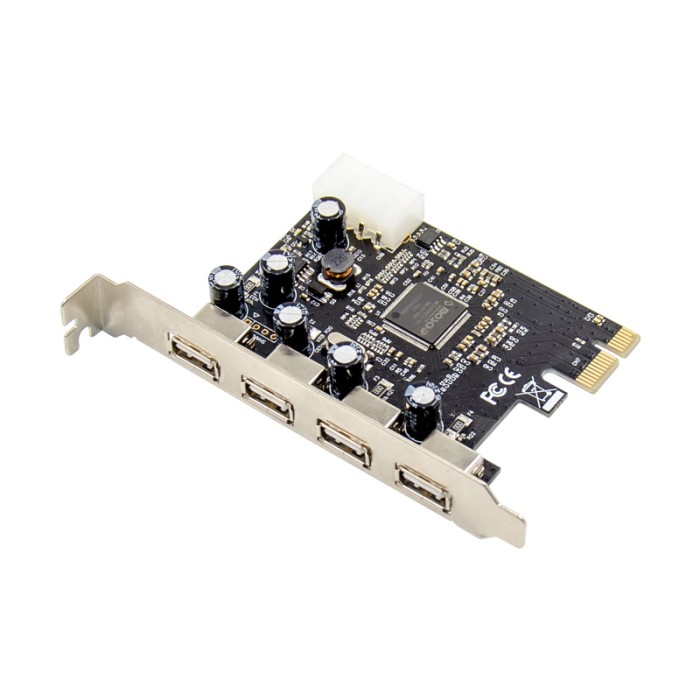

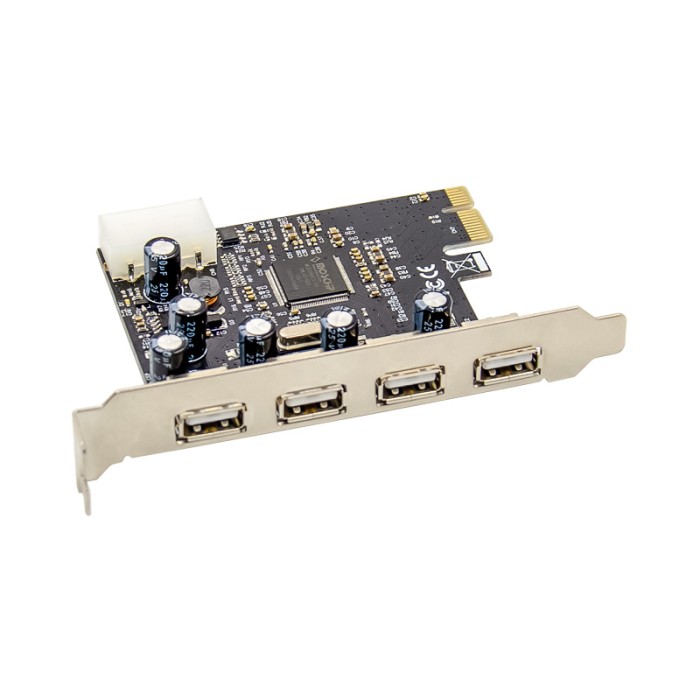

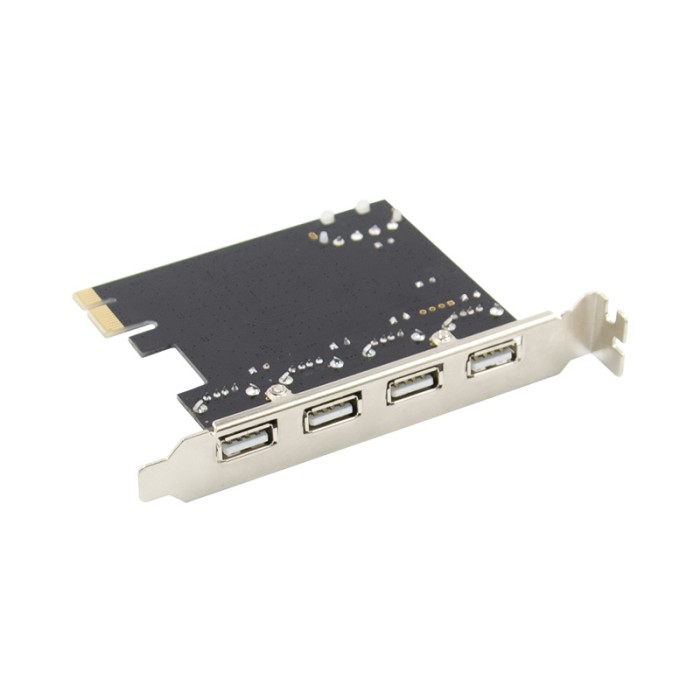

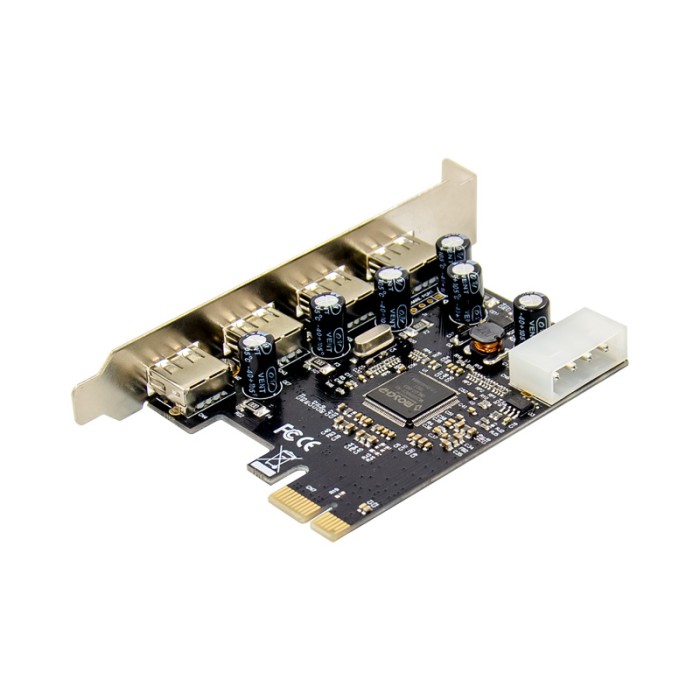

PCIe x1 4-port USB 2.0 Type-A USB Host Card

This PX1-U20-4A-V 5-port PCI Express USB 2.0 Adapter Card lets you connect up to five USB 2.0 peripherals (4 external and shared 1 internal) to your computer, with support for high speed USB data transfer rates of up to 480 Mbps. Plus, the PCI Express USB card is backward compatible with USB 1.1, so you can continue using your older USB peripherals. Featuring easy plug and play installation, this adapter card provides convenient, hassle-free connections without having to reboot the host computer.

Features

• Provides four external USB 2.0 ports and one shared internal port
• Fully compliant with USB 2.0 specifications, with transfer rates up to 480 Mbps
• Backwards compatible with USB 1.0/1.1 devices
• Supports up to 127 USB devices per port (requires additional USB hubs)
• Plug-and-Play and Hot-Swap compatible

Specifications

• Chipset: ASIX MCS9990
• Bus Type: PCI Express x1
• Connector
• 1 * Internal Ports: USB Type-A (4 pin) USB 2.0
• 4 * External Ports: USB Type-A (4 pin) USB 2.0
• Max Data Rate: 480 Mbit/s
• Bracket: Standard Profile
• OS Compatibility
• Windows® 8 / 8.1 (32/64bit), 7 (32/64), Vista (32/64), XP (32/64), 2000
• Windows Server® 2012, 2008 R2, 2003
• Environmental
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage Temperature: -50°C to 150°C (-5°F to 302°F)
• Humidity: 5~95% RH

Package Contents

• PCI Express USB 2.0 card
• Instruction Manual
• Driver CD
