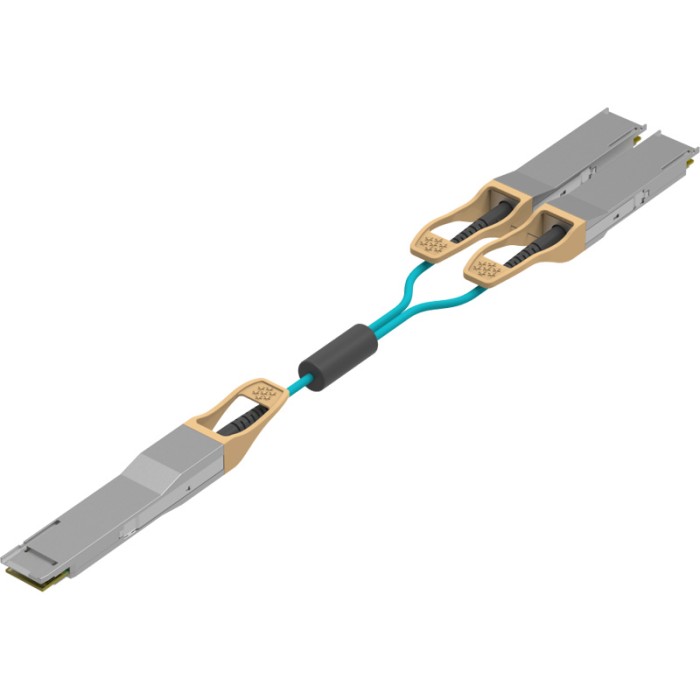

400G QSFP56-DD to 2x 200G QSFP56 Breakout Active Optical Cable
- Product Code: AOC-400GQ56DD-2Q56
- Availability: In Stock
-
$5,600.00
Available Options
This 400G QSFP56-DD to 2x 200G QSFP56 Active Optical Splitter Cable is used in 2 X 200 Gigabit Ethernet links over OM3/OM4/OM5 multimode fiber, which provides connectivity between system units with a 400GbE connector on one side and two separate 200GbE connectors on the other two sides. The cable connects data signals from each of the 8 MMF (Multi Mode Fiber) pairs on the single QSFP56-DD end to the dual pair of each of the QSFP56 multiport ends. This AOC is compliant with the QSFP-DD-MSA and with 200GBASE-SR4 specification. Digital diagnostics functions are available via the I2C interface as specified by CMIS V4.0. The transceiver is RoHS 2.0 compliant and lead-free per Directive 2011/65/EU.
Features
- High-density QSFP-DD and 2x QSFP56 MSA-compliant connectors
- 8 channels full-duplex active optical cables
- 8x 850nm VCSEL array and PIN photo-detector array
- Compliant with IEEE 802.3cd 200GBASE-SR4
- Data rate up to 425Gbps
- Length up to 70m (OM3) or 100m (OM4) over MMF
- Power consumption < 9W (400G QSFP56-DD), < 5W (200G QSFP56)
- Operating case temperature range from 0°C to 70°C
- 3.3V power supply voltage
- RoHS compliant (lead free)
Applications
- 400G to 2x 200G Ethernet
| Specifications | |
| Max Data Rate | 425Gbps |
| Connector A | 400G QSFP56-DD |
| Connector B | 2x 200G QSFP56 |
| Max Length | 100m (328ft) |
| Wavelength | 850nm |
| Media | OM4 MMF |
| Temperature | 0 to 70°C (32 to 158°F) |
| Power Consumption | < 9W (400G QSFP56-DD), < 5W (200G QSFP56) |
