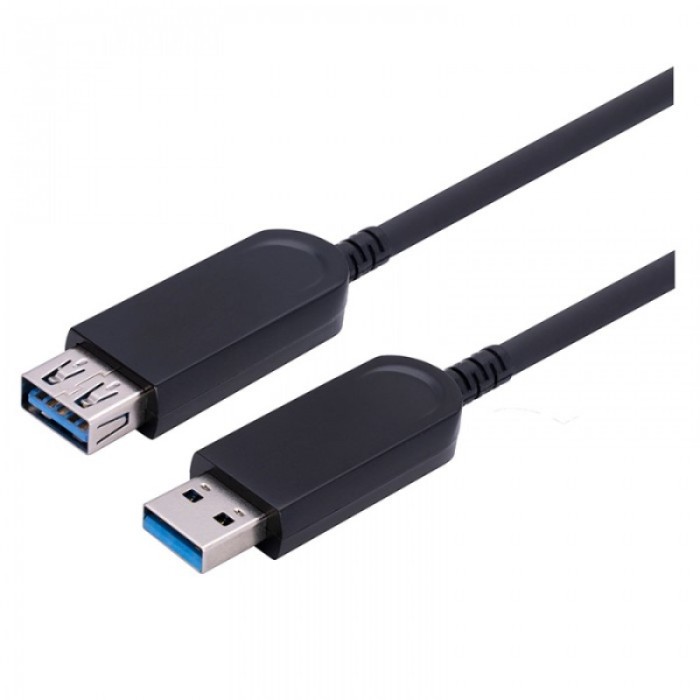

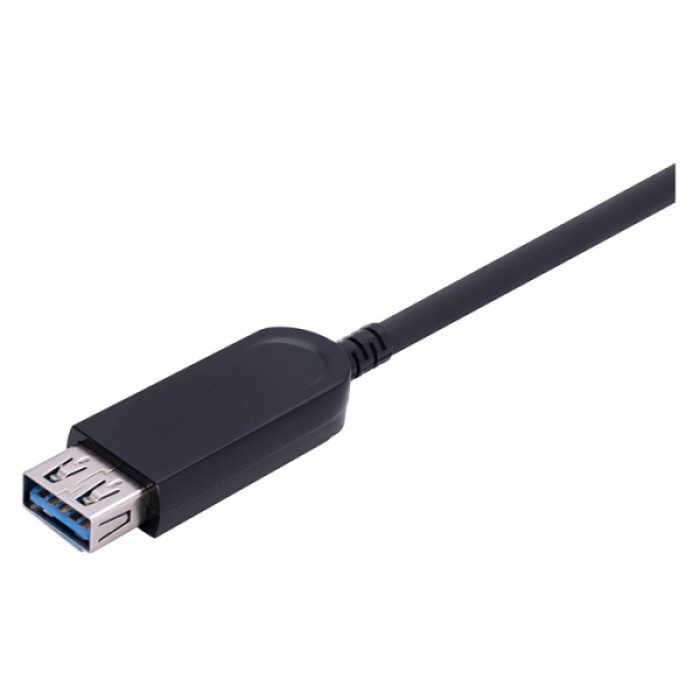

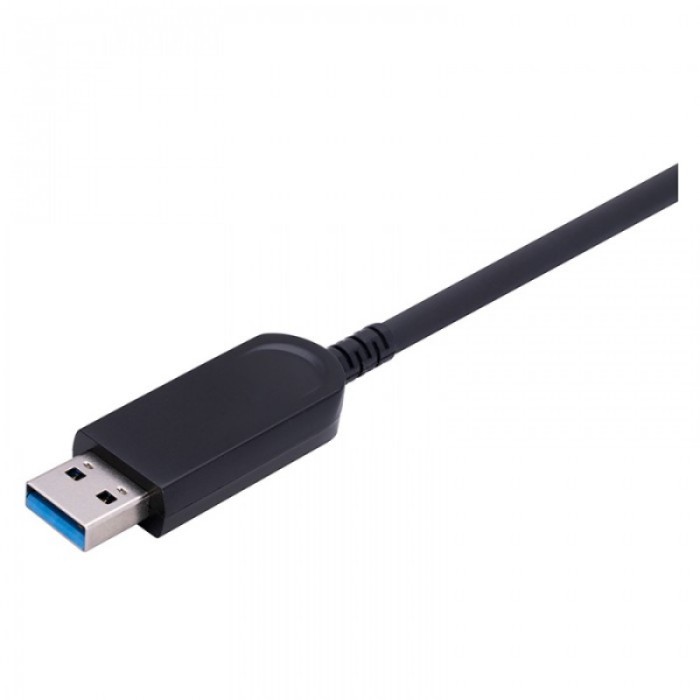

USB 3.1 Gen 2 Type-A Male to Type-A Female 10G Hybrid Active Optical Cable, Backward Compatible
- Product Code: AOC-U31-AM-AF
- Availability: In Stock
-
$180.00
Available Options
The AOC-U31-AM-AF USB 3.1 A male to A female AOC is a 10Gbps USB 3.1 GEN 2 active optical cable which is downward compatible with USB 2.0. It is designed for PC USB to peripheral devices with superior performance while providing a reliable plug-and-play user experience. It supports length up to 15m. Its suitable for applications that do not have on-site power supply. This optical fiber cable can be applicated to machine vision, Remote monitoring, etc.
Features
- Meet USB 3.1 GEN 2 Standard , bandwidth can reach to 10Gbps super speed
- Support length up to 15m
- Support 5V 900mA max
- Support two sides plug and play on type C connector
- Support downward compatible with USB2.0/1.1
- No RF interference , working stable in complex environments
Specifications
- Maximum length: 15m
- Connector
- Type: A (male) / A (female)
- Contacts: Gold plated, long-life design
- Wire
- Cable diameter: 4.85 mm
- Bend radius: 40 mm static / 80 mm dynamic
- Jacket: PVC
- Mechnanical
- Supply voltage: 4.75 – 5.25 V
- Power consumptio: < 0.50 W (both sides)
- Operating conditions: -20°C ~ 70°C, 0%-85% humidity
- Safety
- Device: CE
- EMI / EMC: FCC Class B, CISPR 32
