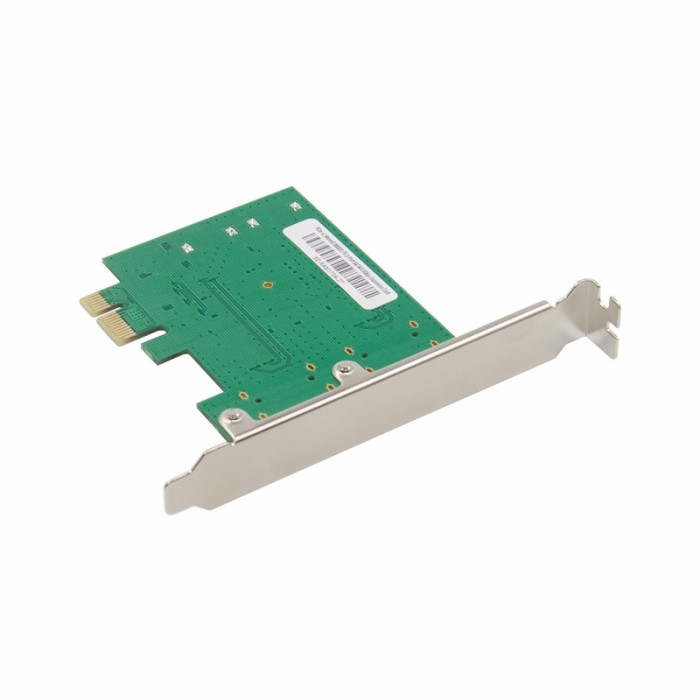

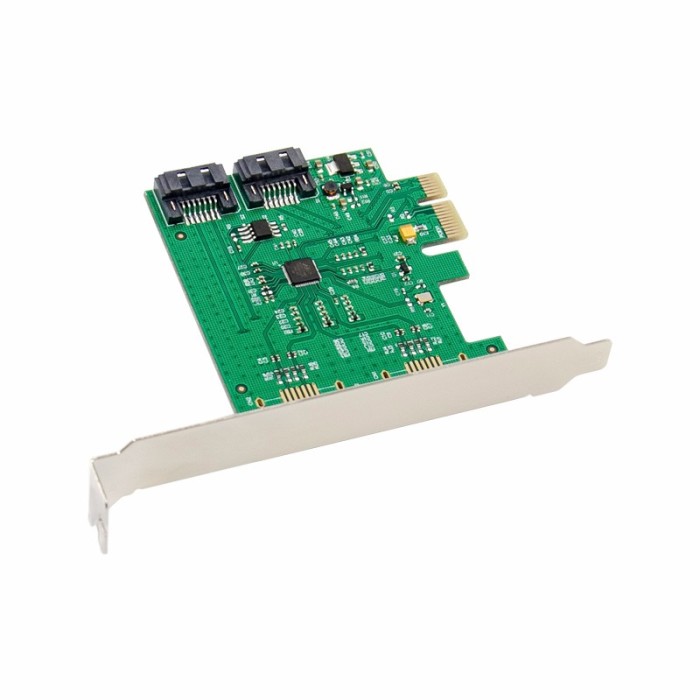

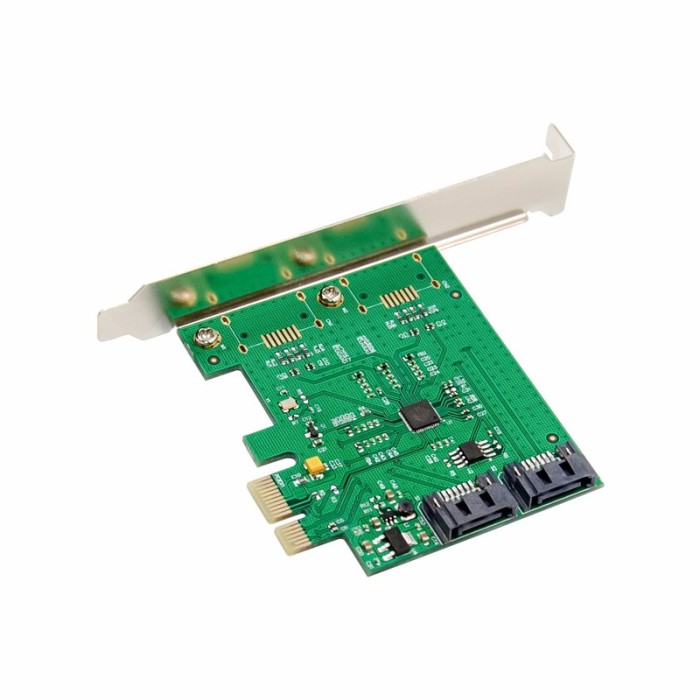

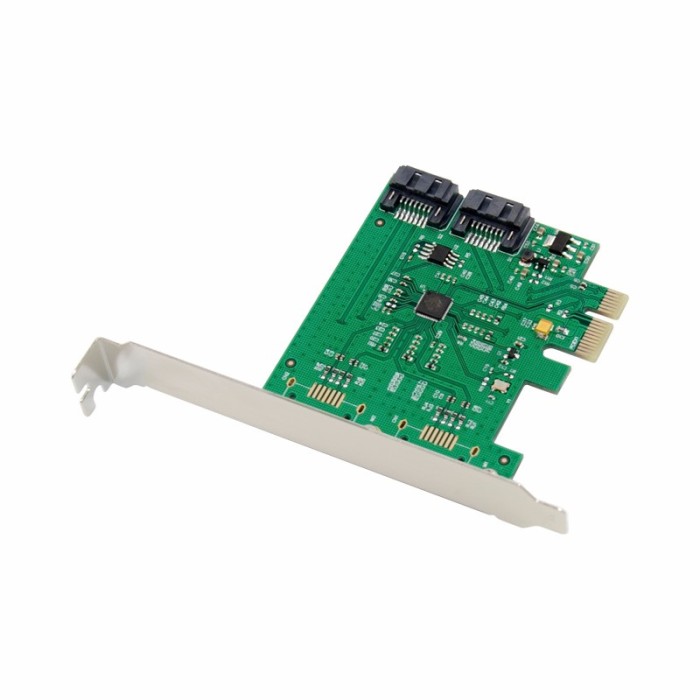

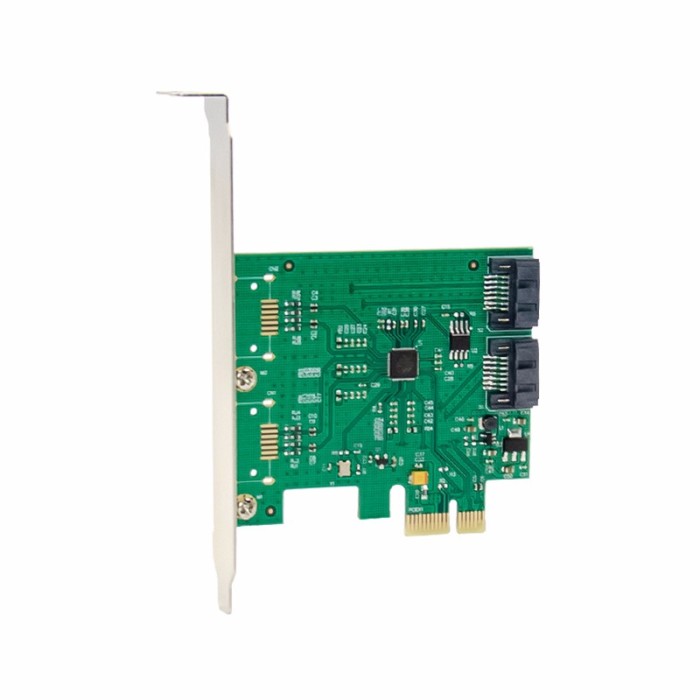

PCIe x1 2-port SATA III 6 Gbps Controller Card

The PX1-S3-2I-9170 PCIe x1 2-port SATA III 6 Gbps Expansion Card offers simple connectivity between a host computer and SATA 3.0 devices - a cost-effective solution for connecting high-speed storage, such as High RPM Hard Drives and Solid State Drives (SSD), which in turn allows for easier data backups and archiving. With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gbps, the adapter card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for external SATA 600 MB/s storage needs.

The controller card is backward compatible with SATA 2.0 devices, providing the versatility to use older storage, and features support for RAID 0 and 1 modes as well as port multiplier capability with command-based and FIS-based switching for connecting multiple external hard drives to a host PC through a single SATA connection.

Features

• Built in 2 SATA3.0 interfaces, Supports SATA Rev 3.0 transfer speeds up to 6.0Gbps and backwards compatible with SATA I/II at 1.5/3.0Gbps

• Support IDE or AHCI programming interface
• Compliant with Serial SATA version 3.0
• Compliant with PCI-Express Specification V2.0 and backward Compatible with PCI-Express 1.x
• PCI Express x1 interface and compatible with PCI Express x1, X4, X8 and X16 slots
• Supports communication speeds of 6Gbps,3Gbps,1.5Gbps
• Hot plug and Hot Swap
• Support Native Command Queue (NCQ)
• Support Port Multiplier FIS based switching or command based switching

• Connect 2 mass storage devices at the same time
• Compatible with Windows XP/Server 2003/Vista/7/8(32/64 bit)/10/MAC/Linux OS

Specifications

• Chipset: Marvell 88SE9170
• Bus Type: PCI Express 2.0 x1
• Connector: 2 * SATA (7 pin, Data)
• Maximum Data Transfer Rate: 6 Gbps
• Raid array: Non-Raid

• Bracket: Standard Profile
• OS Compatibility
• Windows® XP, Vista, 7, 8, 8.1, 10
• Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
• Mac OS® 10.6 to 10.14
• Linux 3.5.x to 4.11.x LTS Versions only
• Note: Connected drives cannot be used as System / Primary drive in Windows Server 2012, 2012 R2, 2016
• Environmental
• Operating Temperature: 5°C to 50°C (41°F to 122°F)
• Storage Temperature: -25°C to 70°C (-13°F to 158°F)
• Humidity: 15~90% RH

Package Contents

1 x PCIe x1 2-port SATA III 6 Gbps Expansion Card

1 x User manual

1 x SATA Cable

1 x Drive CD
