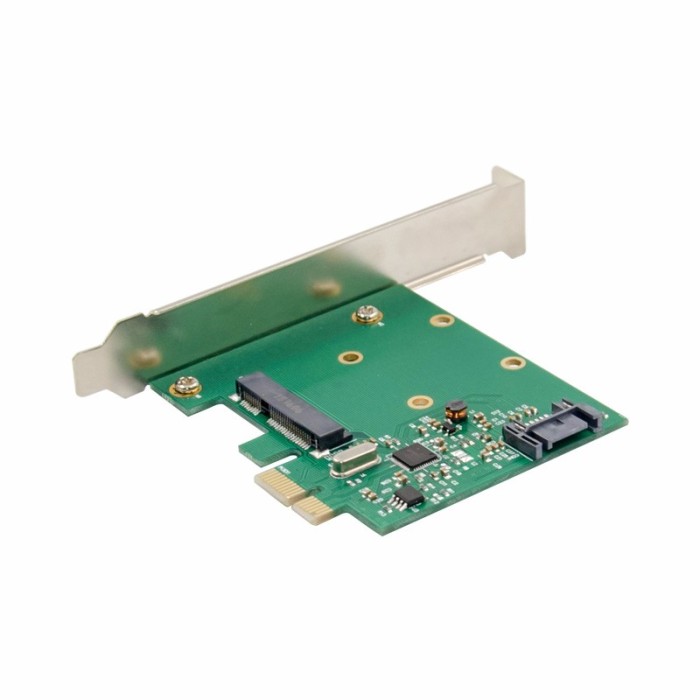

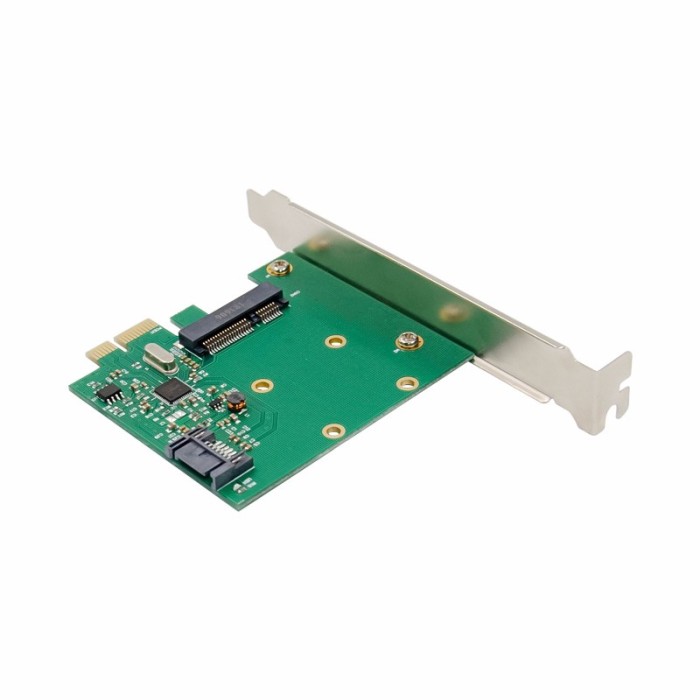

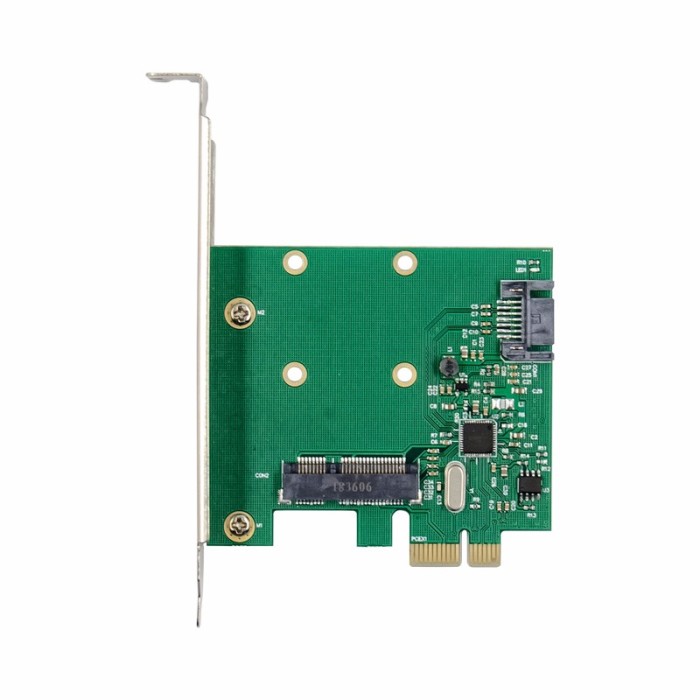

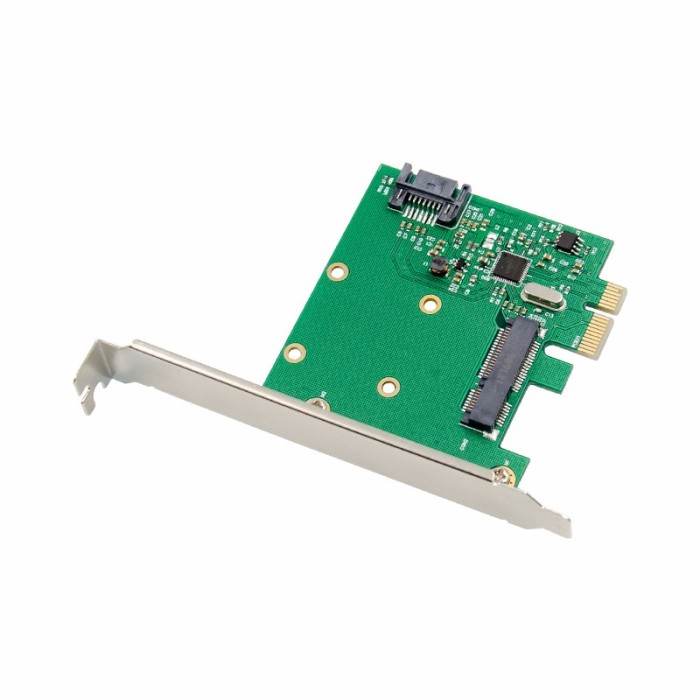

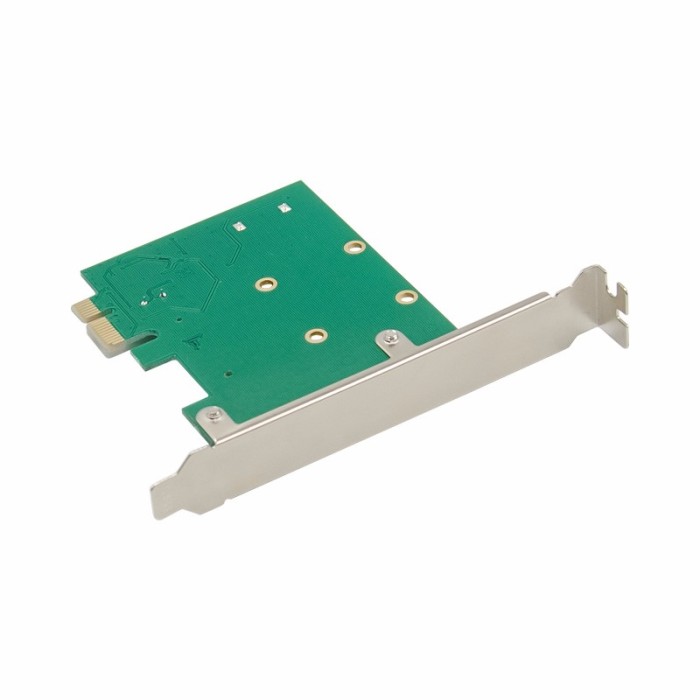

PCIe x1 2-ch SATA III 6 Gbps Controller Card with 1 SATA & 1 mSATA Port

The PX1-S3-1I1MPCIe 3.0 x1 2-ch SATA III 6 Gbps Controller Card with 1 SATA & 1 mSATA Port offers simple connectivity between a host computer and SATA 3.0 devices - a cost-effective solution for connecting high-speed storage, such as High RPM Hard Drives and Solid State Drives (SSD), which in turn allows for easier data backups and archiving. With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gbps, the adapter card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for external SATA 600 MB/s storage needs.

The controller card is backward compatible with SATA 2.0 devices, providing the versatility to use older storage, and features support for RAID 0 and 1 modes as well as port multiplier capability with command-based and FIS-based switching for connecting multiple external hard drives to a host PC through a single SATA connection.

Features

• 1 mSATA SSD slot and 1 AHCI SATA III (6Gbps) slot through PCI Express x2
• Supports SATA Rev 3.0 transfer speeds up to 6.0Gbps and backwards compatible with SATA I/II at 1.5/3.0Gbps
• Support IDE or AHCI programming interface
• Compliant with Serial SATA version 3.0; Compliant with PCI-E 2.0 specification
• Connect 2 mass storage devices at the same time
• Supports 27mm Half-height & 50mm Full-height mSATA SATA SSD

• Compatible with Windows XP/Server 2003/Vista/7/8(32/64 bit)/10/MAC/Linux OS

Specifications

• Chipset: Asmedia ASM1061
• Bus Type: PCI Express x1
• Connector
• 1 * SATA (7 pin, Data)
• 1 * mSATA (52 pin, Mini SATA) Slot
• Maximum Data Transfer Rate: 6 Gbps
• Raid array: Non-Raid

• Bracket: Standard Profile
• OS Compatibility
• Windows® XP, Vista, 7, 8, 8.1, 10
• Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
• Mac OS® 10.6 to 10.14
• Linux 3.5.x to 4.11.x LTS Versions only
• Note: Connected drives cannot be used as System / Primary drive in Windows Server 2012, 2012 R2, 2016
• Environmental
• Operating Temperature: 5°C to 50°C (41°F to 122°F)
• Storage Temperature: -25°C to 70°C (-13°F to 158°F)
• Humidity: 15~90% RH

Package Contents

1 x PCIe x1 2-ch SATA III 6 Gbps Controller Card with 1 SATA & 1 mSATA Port

1 x User Manual

1 x SATA Cable

1 x Drive CD
