PCIe 2.0 x2 4-ch SATA III 6 Gbps Controller Card with 4 SATA & 2 eSATA Port

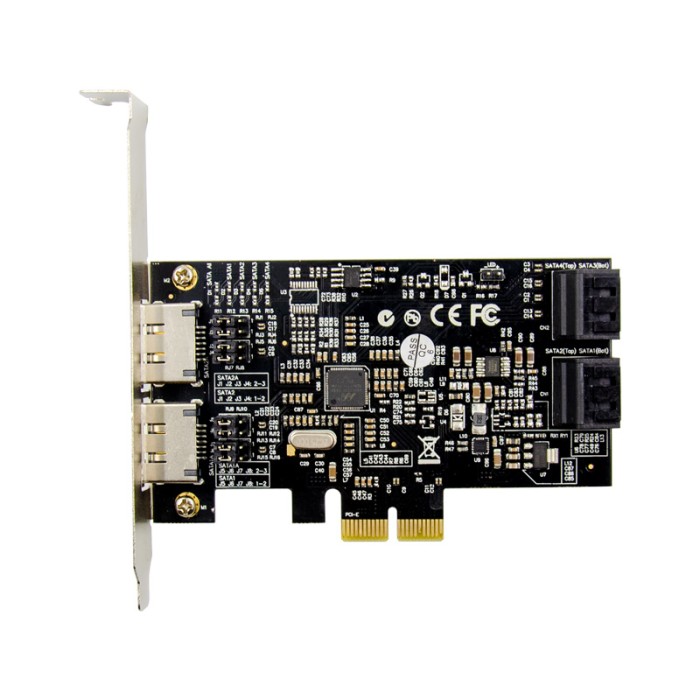

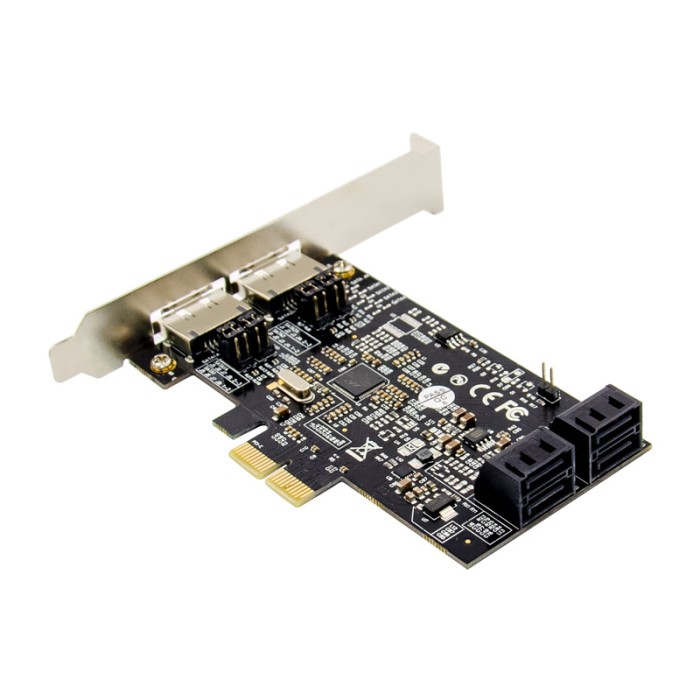

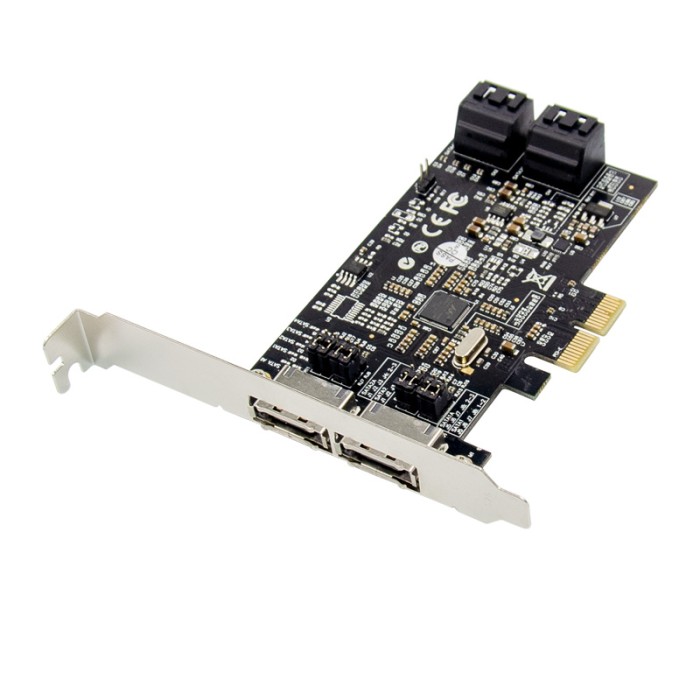

The PX2-S3-4I2E PCIe 2.0 x2 4-ch SATA III 6 Gbps Controller Card with 4 SATA & 2 eSATA Port features a Marvel 88SE9230 chipset and adds four SATA 3 and two e-SATA III ports to a computer through a PCIe 2.0 x2 slot, delivering multiple internal 6Gbps connections for SATA III hard drives and SSDs. Featuring Hyper Duo technology, the SATA card offers SSD auto-tiring which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining 2 SSD and 2 HDD drives into a single volume, Hyper Duo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput. The Hyper Duo automatic storage tiring feature is compatible with Windows XP, Vista, 7, 8 and above.

The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required. The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).

Features

• Add 4 SATA 6Gb/s channels to your PCIe system
• Flexible port configurations:
• 4 internal

• 2 external and 2 internal
• 1 external and 3 internal
• Compliant with PCI-Express Specification V2.0 and backward Compatible with PCI-Express 1.x
• Compliant with Serial ATA Specification 3.0
• PCI Express x2 interface and compatible with PCI Express X4 ,X8 and X16 slots
• Supports communication speeds of 6Gbps \ 3Gbps \ 1.5Gbps
• Support Native Command Queue (NCQ).
• Support Port Multiplier FIS based switching or command based switching
• Compatible with SATA6G,3G and 1.5G hard drives
• Support RAID function: RAID 0, RAID 1, RAID 10, and HyperDuo
• Hot plug and Hot Swap

Note: HyperDuo automatic storage tiering is only compatible with Windows XP, Vista, 7 and 8.  This feature is not fully supported in the Server OS.

Specifications

• Chipset: Marvell 88SE9230
• Bus Type: PCI Exrpess 2.0 x2
• Connector
• 4 * SATA (7 pin, Data)

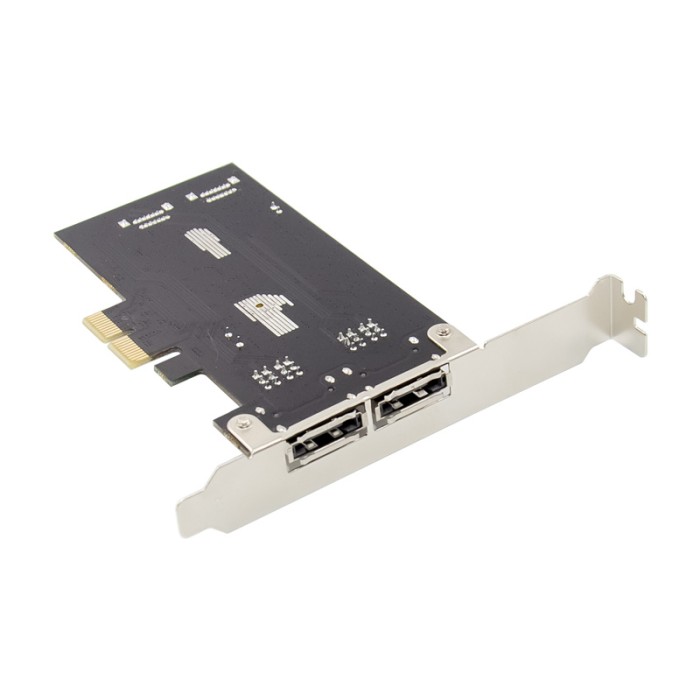

• 2 * eSATA (7 pin, Data)
• Data Rate: 6Gbps, 3Gbps, 1.5Gbps
• RAID Function
• RAID 0-Striping (Stripe Size: 32K, 64K)
• RAID 1-Disk Mirroring
• RAID 10-Stripe of Mirrors (Stripe Size: 32K, 64K)
• HyoperDuo Safe (Mirrored Protection) or Capacity-Cost (Optimized)
• OS Compatibility
• Windows® XP, Vista, 7, 8, 8.1, 10
• Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
• Environmental
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Humidity: 5% ~ 85% RH

Package Contents

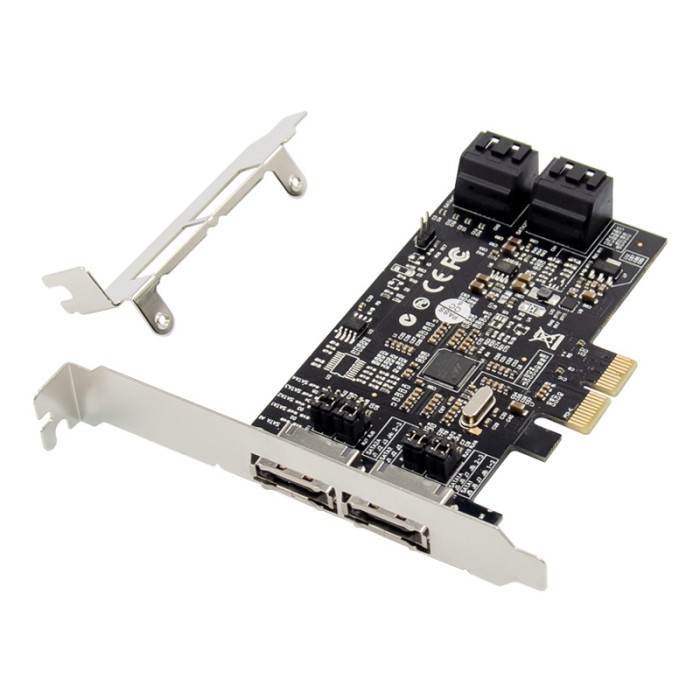

• 1 x PCIe SATA 6Gbps RAID Card
• 1 x User Manual
• 2 x SATA Cable
• 1 x Driver CD
• 1 x Low Profile Bracket
