    • PCIe 2.0 x2 2-port 2.5-inch SSD / HDD SATA III 6 Gbps RAID card

    • Product Code: PX2-S3-2D
    • Availability: In Stock

    • $60.00

  • 0 reviews
  • Write a review

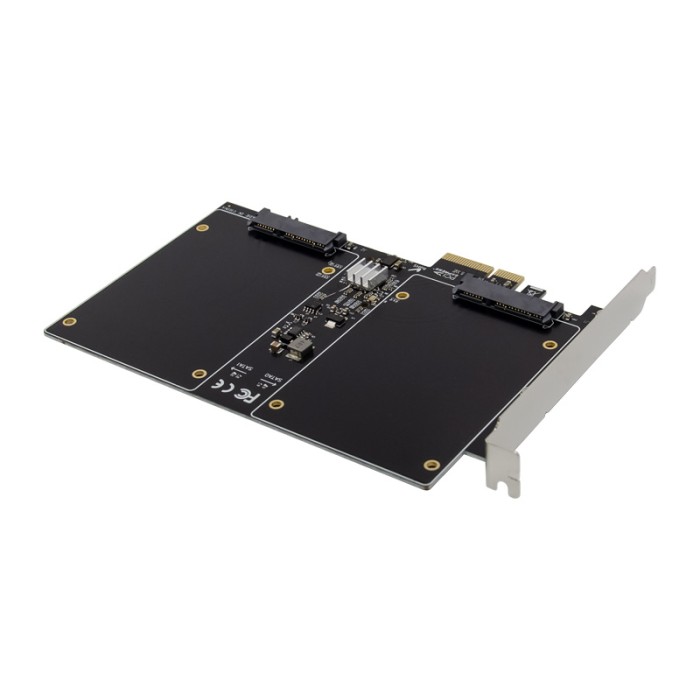

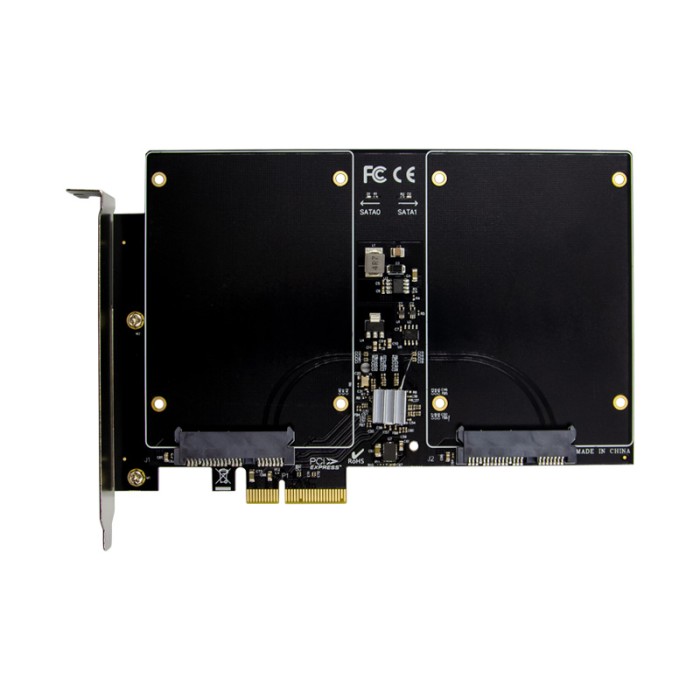

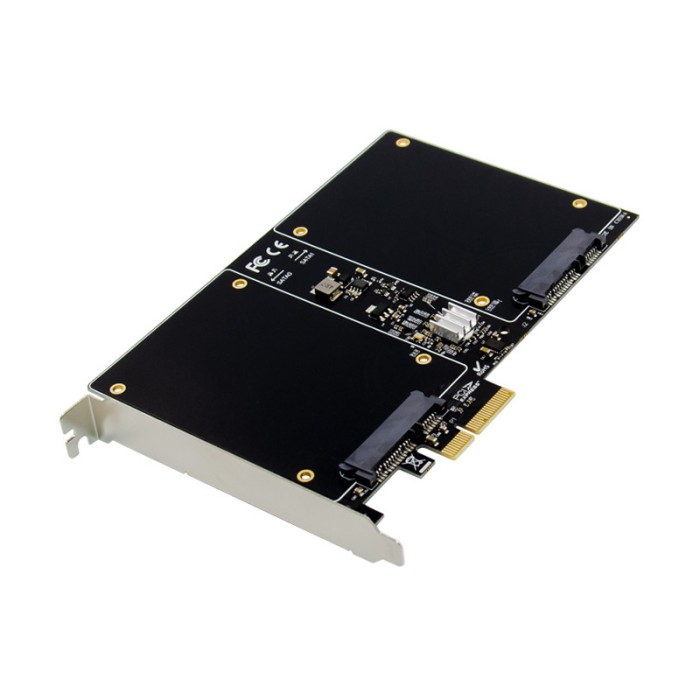

    • The PCIe 2.0 x2 2-port 2.5-inch SSD / HDD SATA III 6 Gbps RAID card has two SATA GEN III 6Gb/s ports which can host 2.5-inch full-size SSD/HDD, brings server-class features to the desktop computers. This adapter card enable the use of the industry's newest and fastest hard drivers at 6Gb/s while providing backward compatibility to legacy SATA 1.5Gb/s or 3Gb/s drives. It will enhance system performance for every type of computer user. Each PCIe 2.0 lane provides up to 500Mb/s of throughput. Using the RAID function , the SATA drivers attached to this card can be easily configured as 2 inpidual drives with NO RAID or with RAID0, RAID1, HyperDuo.

    Features

    • Compliant with PCI-Express Specification V2.0 and backward Compatible with PCI-Express 1.x
    • Supports communication speed of 2.5Gbps and 5Gbps
    • Compliant with Serial ATA Specification 3.1
    • PCI Express x2 interface and compatible with PCI Express X4 ,X8 and X16 slots
    • Supports communication speeds of 6Gbps, 3Gbps, 1.5Gbps
    • Supports Gen1i, Gen2i, Gen2m,Gen2x, and Gen3i
    • Hot plug and Hot Swap
    • Support two full size 2.5-inch SSD/HDD
    • Compatible with SATA 6G, 3G and 1.5G hard drives
    • Support Native Command Queue (NCQ)
    • Support Port Multiplier FIS based switching or command based switching
    • Support Partial and Slumber Power Management states
    • Support RAID Function: RAID 0, RAID1 and HyperDuo

    Specifications

    • Chipset: Marvell 88SE9230
    • Bus Connector: PCI Express 2.0 x4 (work at x2)
    • Drive Type: Full size 2.5-inch SSD / HDD
    • Compatible with SATA 6G, 3G, 1.5G Hard drives
    • Supports communication speeds of 6Gbps, 3Gbps, 1.5Gbps
    • Raid array: RAID 0, RAID 1,RAID 10, HyperDuo
    • Support Port Multiplier FIS based switching or Command based switching
    • Operating mode
      • Safe Mode: Mirror data from SSDs to mechanical hard drives for optimized data protection
      • Capacity Mode: Combine the capacity of solid state drives and mechanical hard disks 2-in-1
    • OS Compatibilty: Windows XP/Vista/Server 2003/Server 2008 /Win 7/Win 8/Win 10, DOS, Linux2.6.x and above

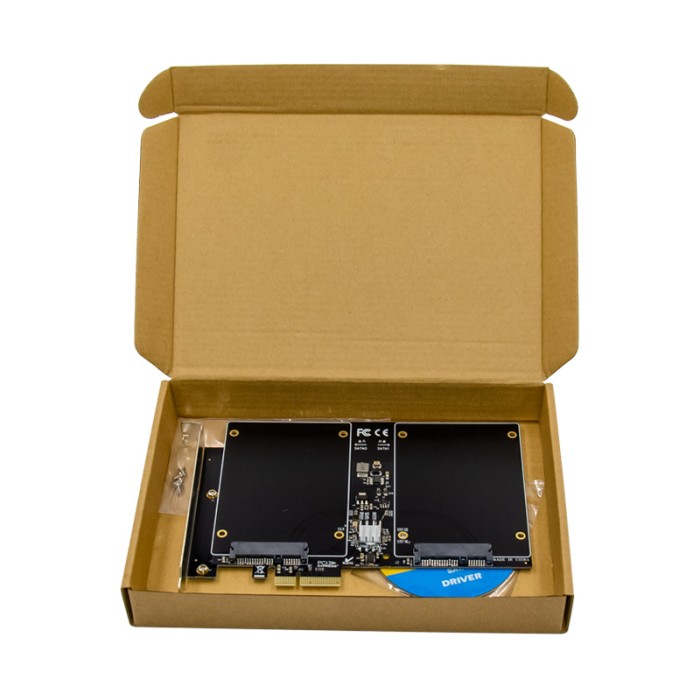

    Package Contents

    • 1 x PCIe SATA 3.0 2-Channel SSD Card 88SE9230
    • 1 x User manual
    • 2 x SATA Cable
    • 1 x Driver CD
