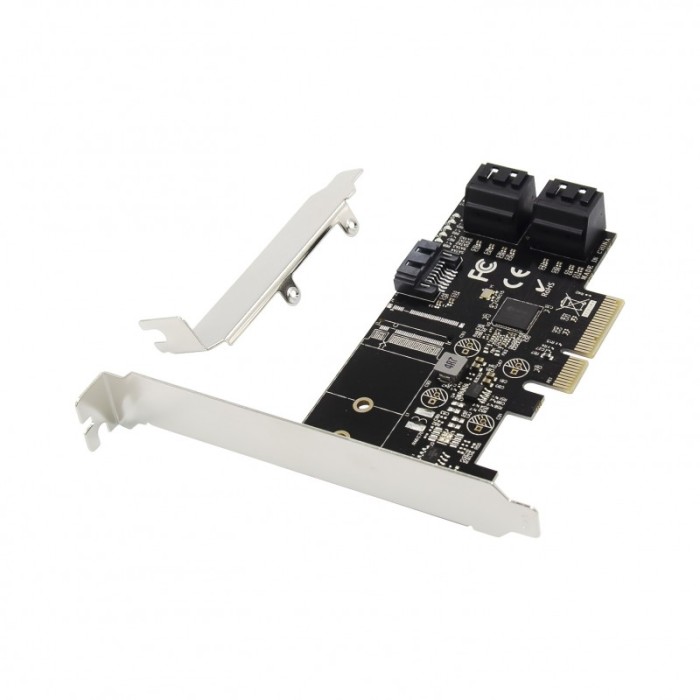

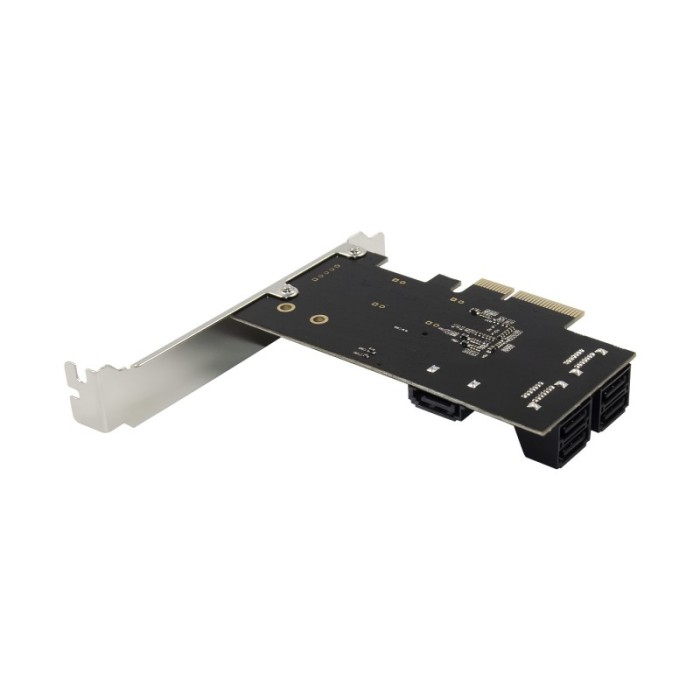

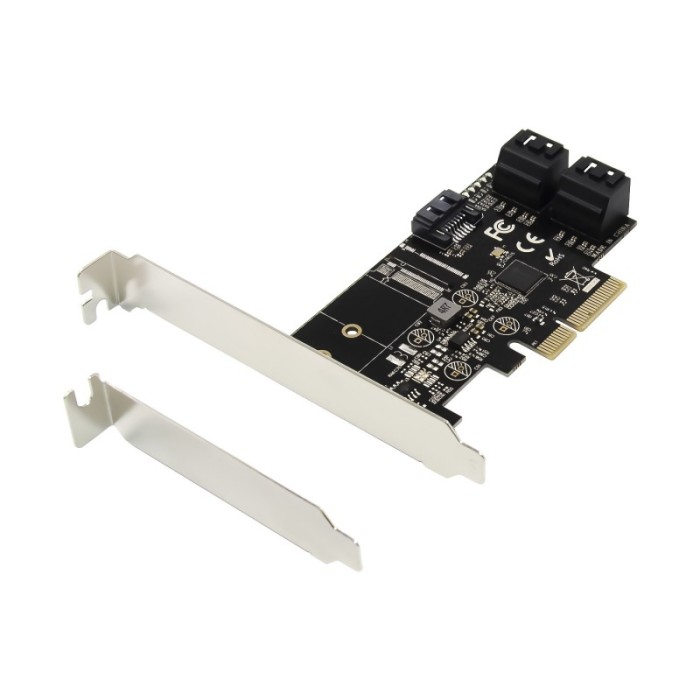

PCIe 3.0 x4 5-port SATA III 6 Gbps Expansion Card

Using the JMB585 chipset, the PX4-S3-5I can provide extra 5-port SATA III to any free PCIe x4 slot with PCIe Gen3 x2 bandwidth. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2.

Features

• Connect five SATA drives to any free PCIe x4 slot, providing up to 1700 MB/s speed
• Plug and play supported, no additional software installation or setting required
• Can support Port Multiplier that is not in a RAID configuration
• Compliant with PCI Experss specification V3.0 and backward compatible with PCI-Express 2.x and 1.x
• Compliance with Serial ATA Specification 3.0
• Bus Type: PCI Express x4 interface, compatible with PCI Express x4, x8 and x16 Slot
• Compatible with SATA hard drives and solid state drives and computer systems with SATA controllers
• Hot swap and heat exchange
• Support Windows XP / Vista / 7/8/10 / Server 2003/2008 / MAC, Linux 2.6.x version and above

Specifications

• Chipset: JMicron JMB585
• Bus Type: PCI Express 3.0 x4
• Connector: 5 * SATA (7 pin, Data)
• Data Rate: 6.0 Gbps, 3.0 Gbps and 1.5 Gbps

Package Contents

• PCIe 3.0 x4 5-port SATA III 6 Gbps Expansion Card
• Low Profile Bracket
• Driver CD
• Instruction Manual
• 5 SATA Cables
