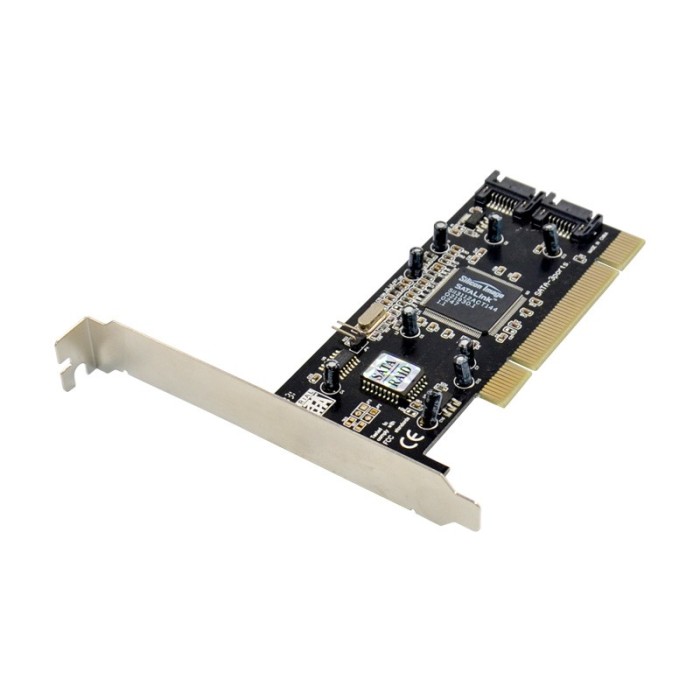

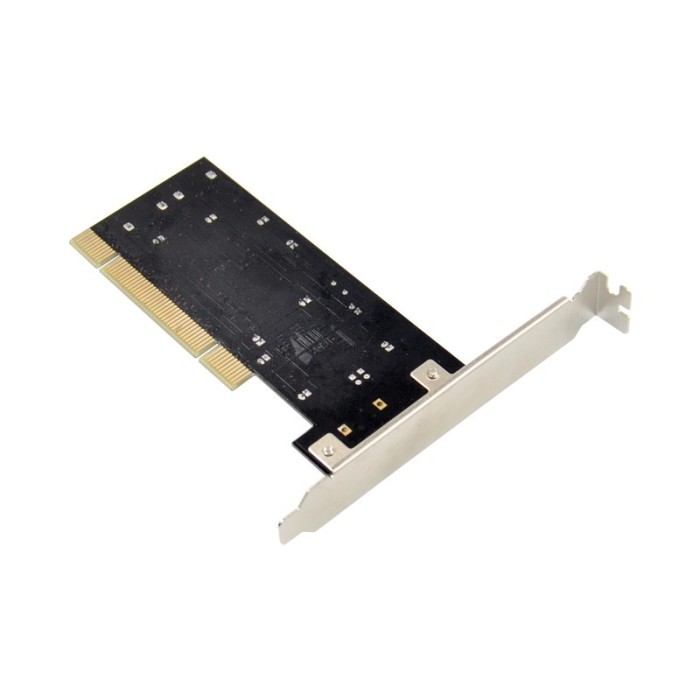

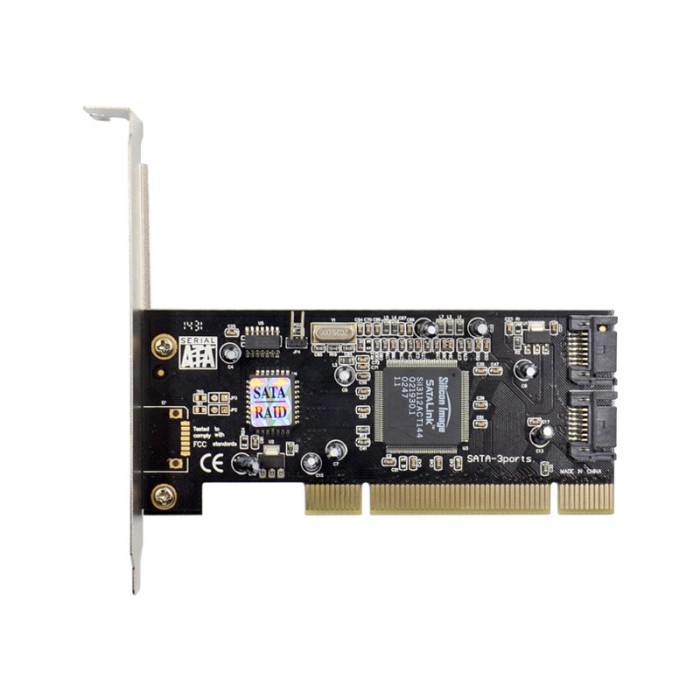

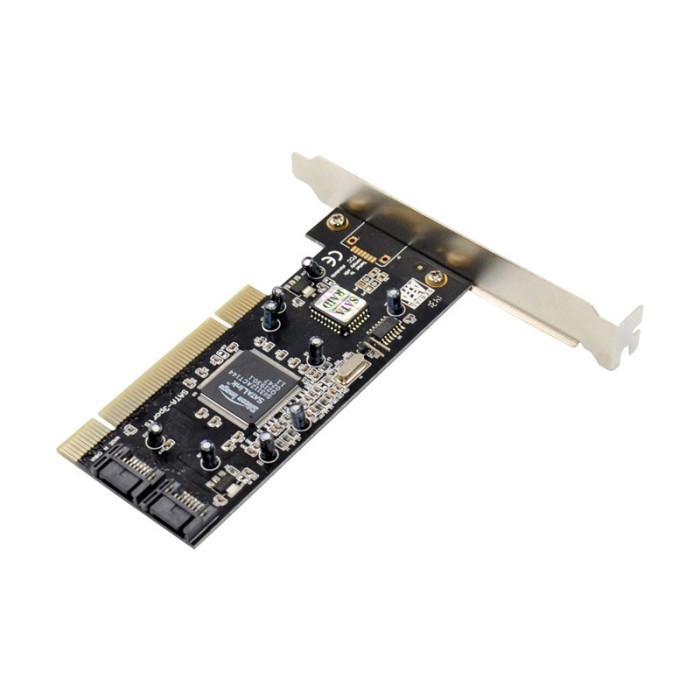

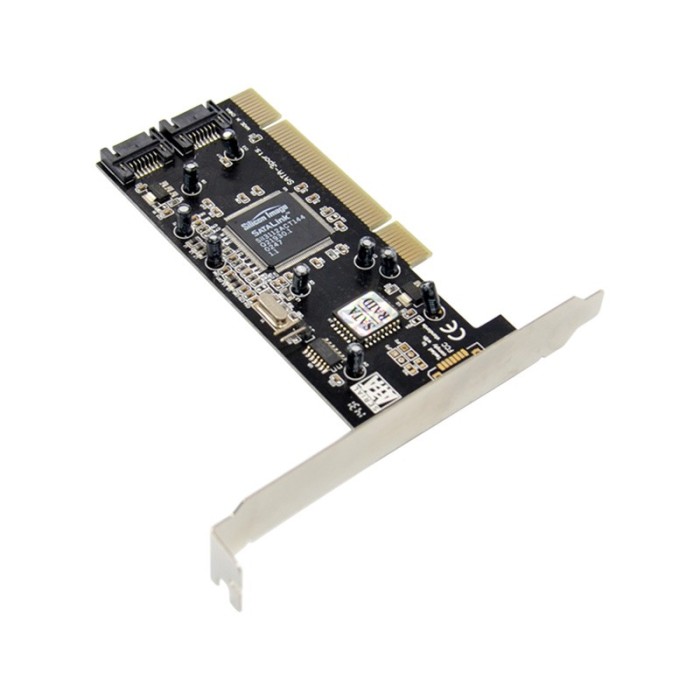

PCI 2-port SATA 150 1.5 Gbps RAID Expansion Card

This PCI 2-port SATA 150 1.5 Gbps RAID Expansion Card is designed to offer a high performance, cost effective and reliability solution to users who need to accommodate storage peripherals with the new Serial ATA interface. It adds two independent Serial ATA channels to the computer, each channel has its own Serial ATA bus and will support one Serial ATA device. The card supports the Serial ATA (Generation 1) transfer rats of 1.5Gbps (150MB/S).

Features

• Silicon Image SIL3112A Serial ATA(SATA) host controller chipset
• Compliant with Serial ATA Specification Revision 1.0
• Supports Serial ATA Generation 1 transfer rate of 1.5Gb/s (150MB/s)
• Compliant with PCI IDE Controller Specification Revision1.0
• Compliant with PCI Specification Revision 2.2
• Compliant with Programming Interface for Bus Masster IDE Controller Revision1.0
• Supports two independent Serial ATA channels
• Independent 256byte FIFO per Serial ATA channels for host read and write

Specifications

• Chipset: Silicon Image Sil3112A
• Bus Type: PCI Rev2.2
• Connector: 2 Internal SATA Port
• Connector Type: Serial ATA 1.0
• FIFO: 256 byte
• Data Rate: Max 1.5Gb/s (150MB/s)
• Raid Array
• RAID Functions (Optional)
• Allow HDD with different size to be configured in a RAID set
• Supports Raid0 or 1, Co-exist RAID set and Non-RAID HDD
• OS Support: Windows 98SE / ME / NT4.0/ 2000 / XP / 2003 / Vista/ 7 / 8 / 8.1 / 10, 64 bit system, Linux
• Certifications: CE, FCC, RoHS

Package Contents

• 1 x PCI Sil3112A 2-Channel SATA RAID card
• 1 x User manual
• 1 x SATA Cable
• 1 x Drive CD
