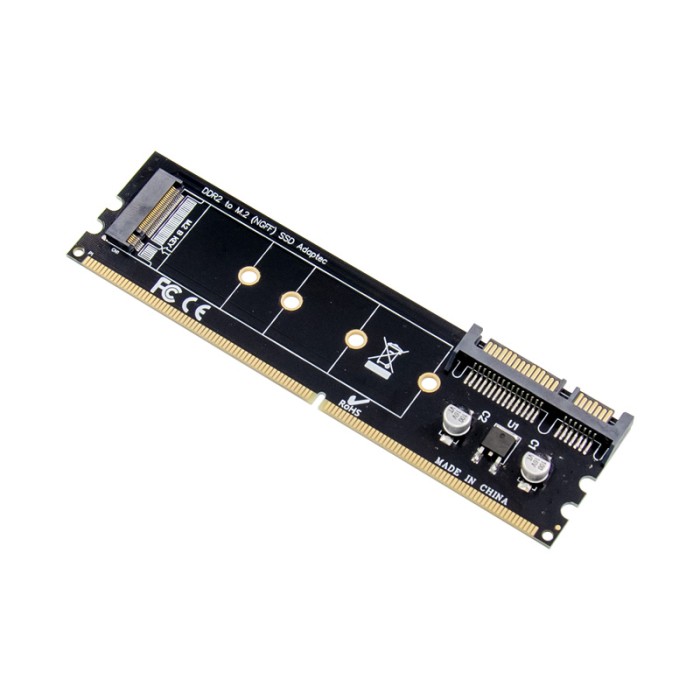

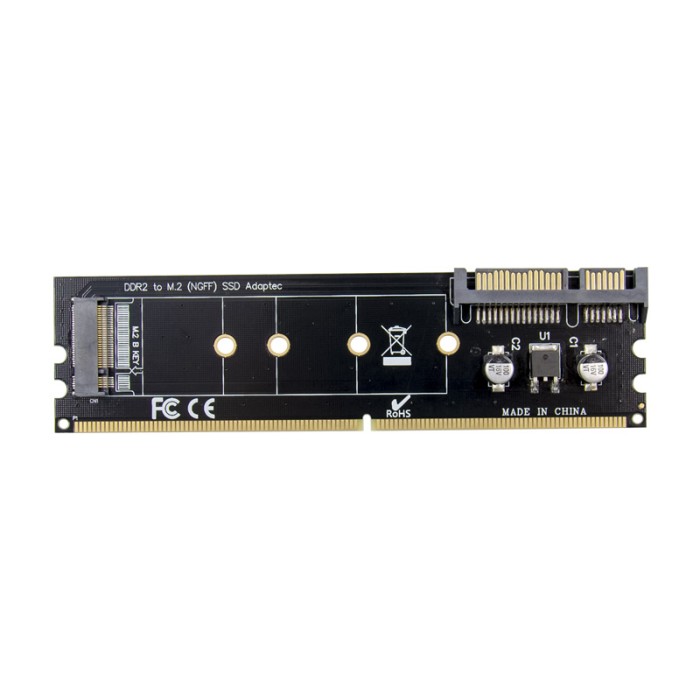

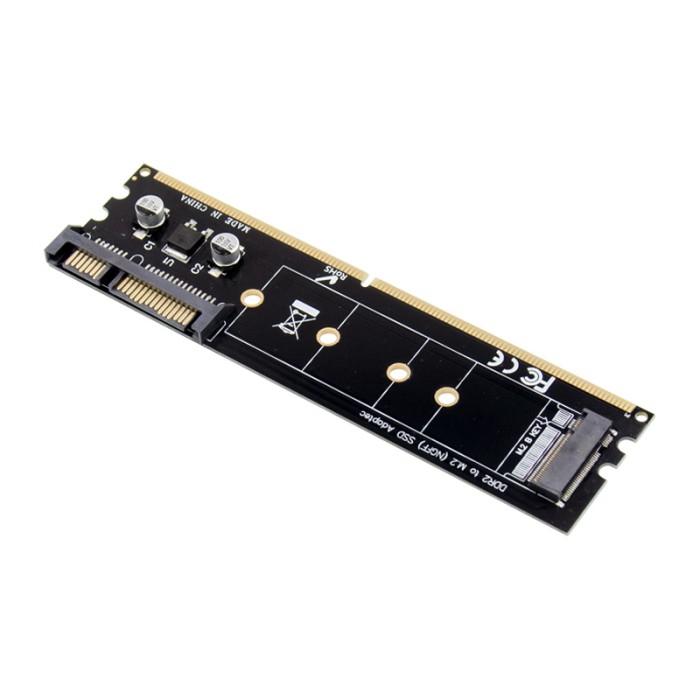

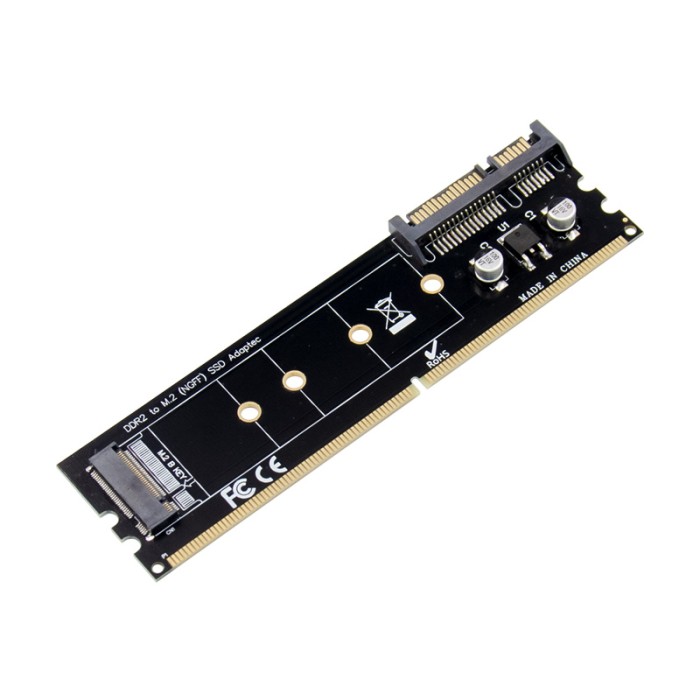

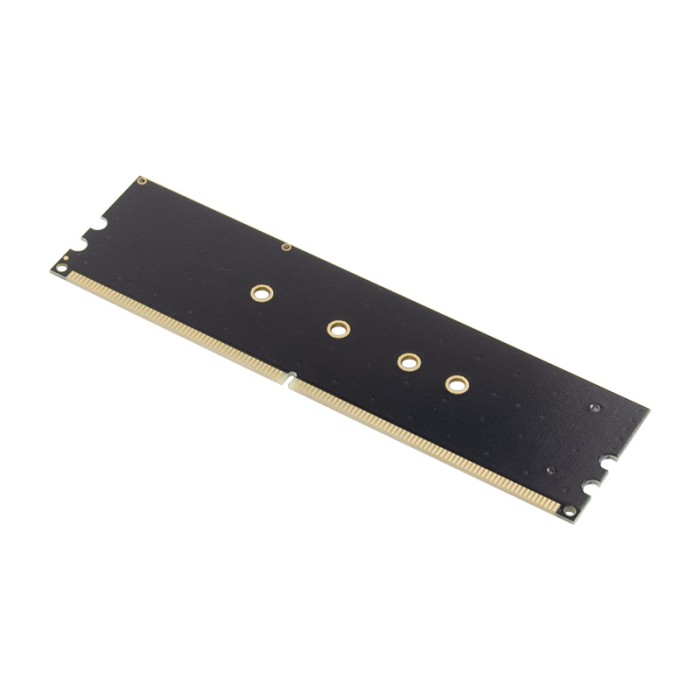

DDR2 to M.2 B-key NGFF SSD Adapter


  • Product Code: ADP-D2-M2
  • Availability: In Stock

  • $7.00




This ADP-D2-M2 DDR2 to M.2 B-key NGFF SSD Adapter adds a M.2 B-key slot to computers with a DDR2 slot to increase system performance. It turns an unused DDR2 slot to a M.2 B-key slot. Allow users to convert M.2 B-key SATA SSDs to SATA III through a DDR2 memory slot. The adapter uses 2 imported large solid capacitors to make the power supply more stable. Fixed SSD copper studs are removable for easy connection to a wide range of SSDs.

Features

  • Supports DDR2 desktop motherboards
  • DDR2 memory slot M.2 SSD to SATA expansion board
  • SATA 15-pin power and SATA 7-pin data port need to be connected to the motherboard
  • Support M.2 NGFF SSDs of 2230, 2242, 2260, 2280 size
  • Only M.2 SATA protocol key B SSD is supported, M.2 M Key SSD is not supported
  • OS independent; No software or drivers required

Specifications

  • Host Bus Interface: DDR2 memory slot
  • Connector
    • 1 x M.2 B-key Connector
    • 1 x 7+15Pin SATA Port
  • Drive Type: M.2 B-key SSDs
  • Max Transfer Rate: 6 Gbps
  • SSD Sizes: 2230, 2242, 2260, 2280
  • System Supported: Windows , Mac, Linux and above

Package Contents

  • 1 x DDR2 to M.2 NGFF SSD Adapter
  • 1 x User Manual
  • 3 x Screws
  • 1 x Screw Driver
