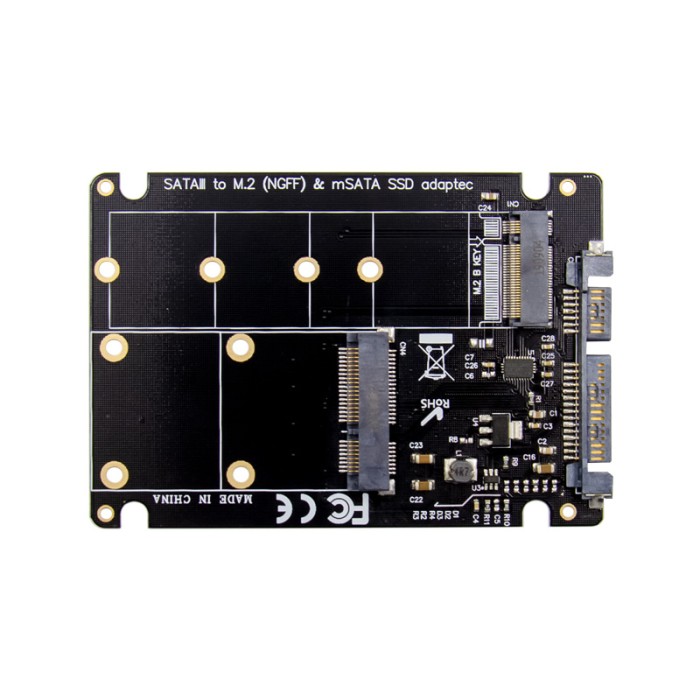

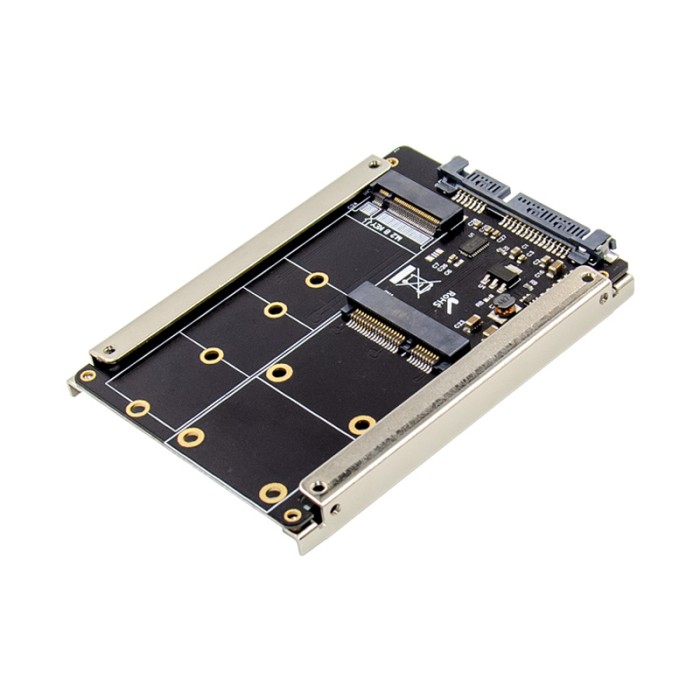

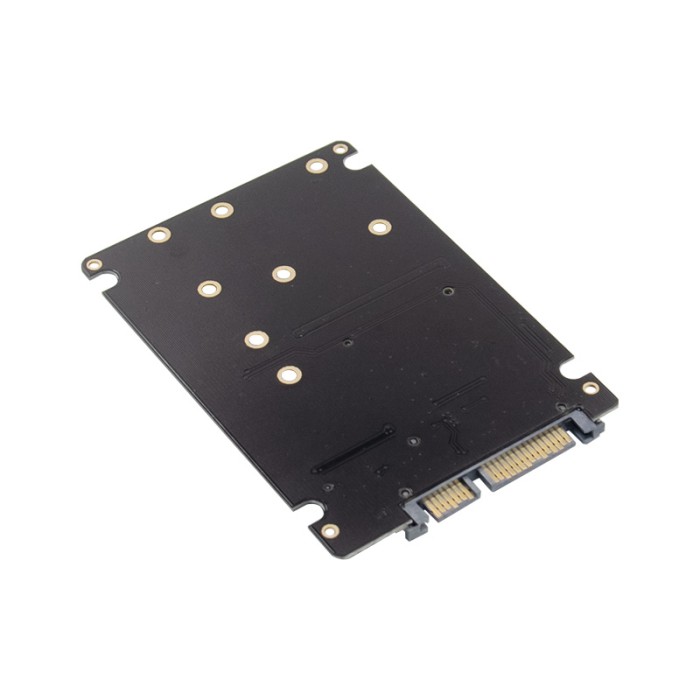

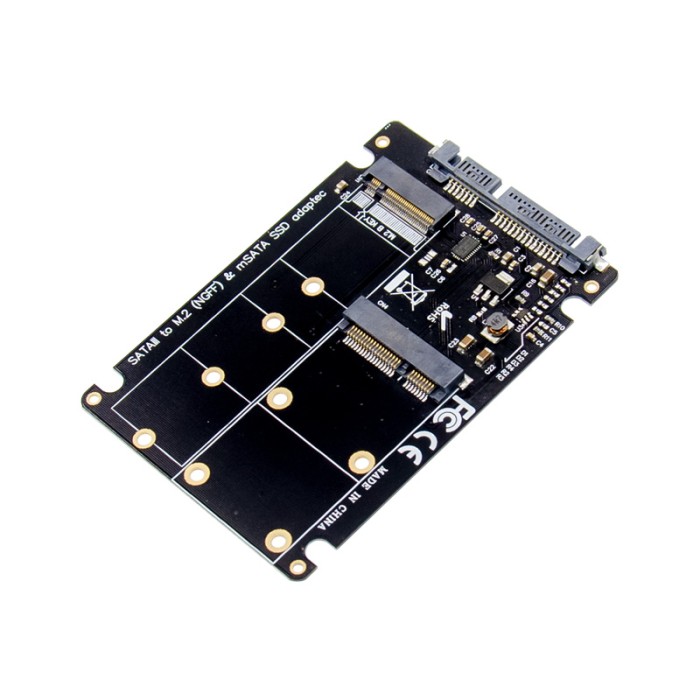

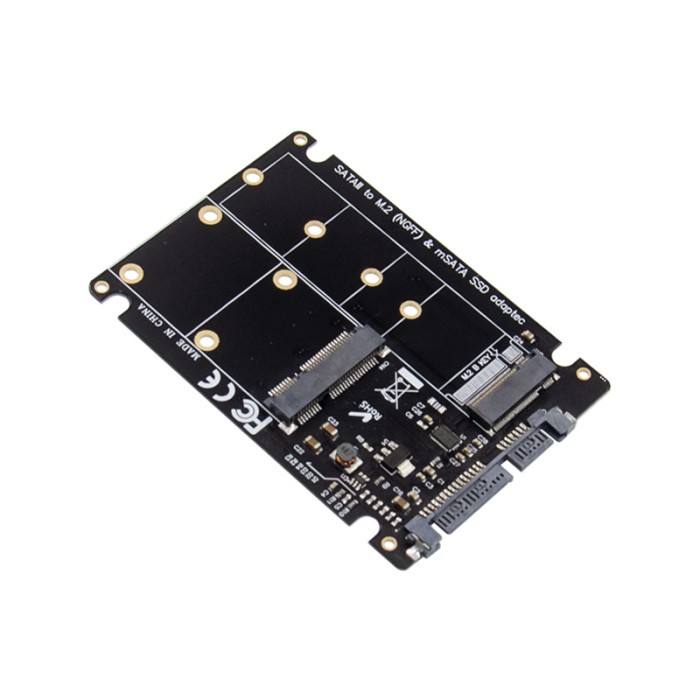

SATA to mSATA / M.2 B-key Adapter

The SATA to M.2 B-key or mSATA adapter is a 2.5-inch multifunctional SSD card, which supports a M.2 Key B SATA protocol SSD or a mSATA SSD. It complies with the Serial ATA rev3.0 specification, and backward compatible with SATA-II and SATA-I. The data transmission speed is up to 6 Gbps. The adapter can be used in laptops, desktop computers, small computers and other devices.

Features

• Compliant with Serial ATA Specification Rev. v3.0, backward compatible with SATA II and SATA I
• Supports M.2 Key B SATA protocol SSDs
• Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
• Supports for 2230, 2242, 2260, 2280 M.2 B-key SSDs
• Supports for mSATA SSD size: 26.8x30mm, 50.95x30mm
• M.2 Specification Rev. 0.9
• Supports ATA/ATAP-7 specifications
• Industrial working temperature range: -40 ~ 85 ° C
• OS independent; No software or drivers required
• Operating system: Windows, MAC OS, Linux operating system

Specification

• Bus Connector: 7+15-PIN SATA interface
• Drive Connector:
• 1 x M.2 B Key connector
• 1 x mSATA SSD connector
• Number of Drives: 1(You can install one drive only one time)
• Color: Black

Package Contents

• 1 x SATA to M.2 B Key or mSATA SSD adapter Card
• 1 x Screw package
