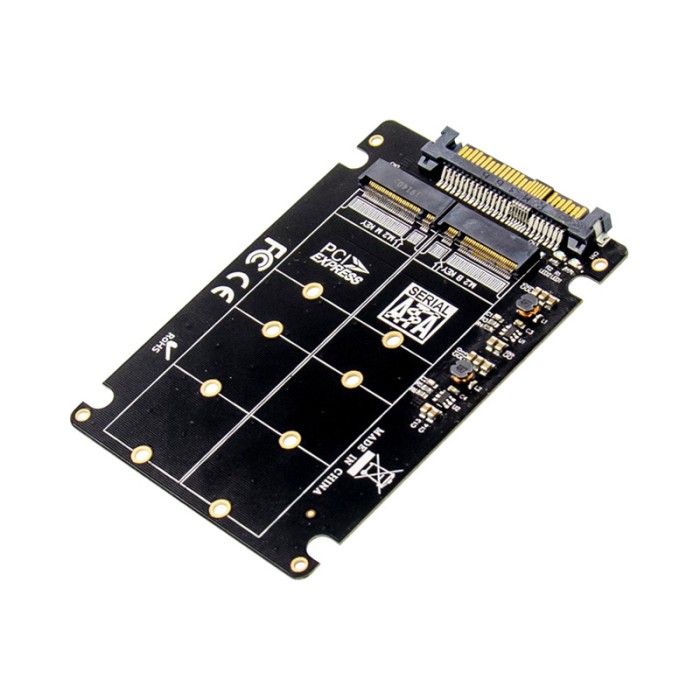

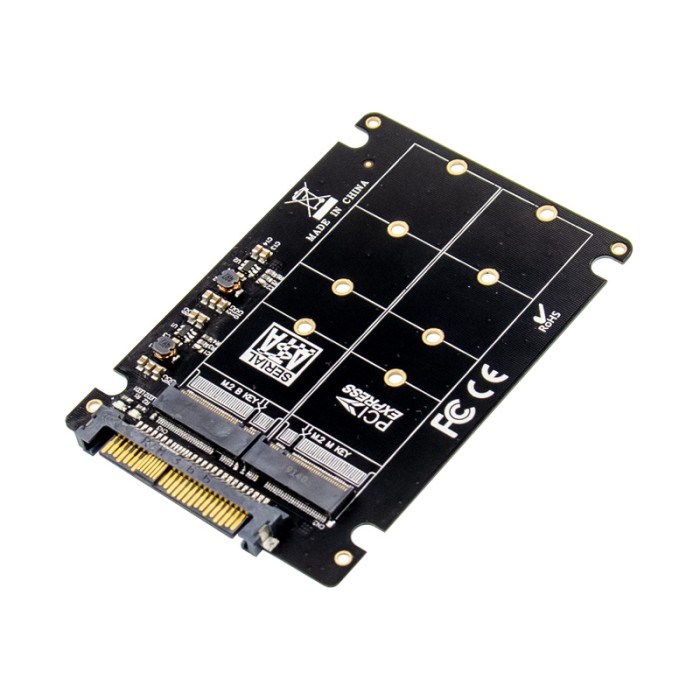

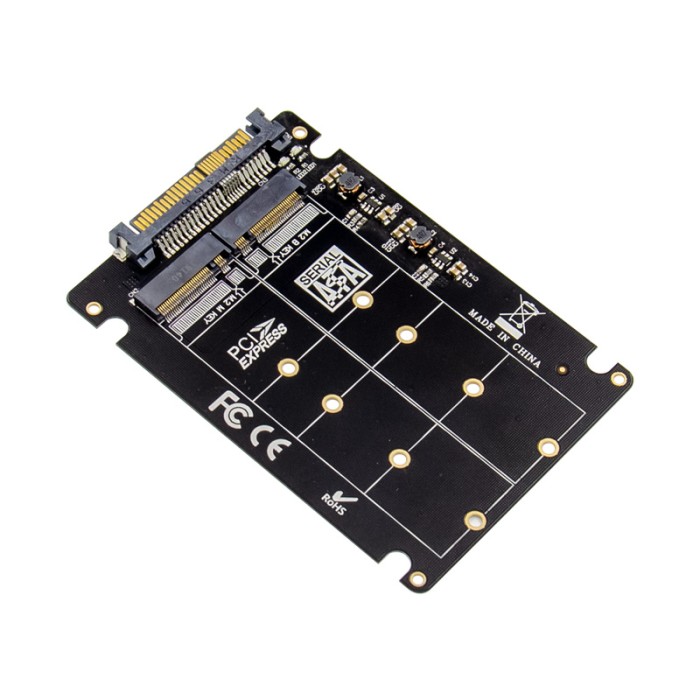

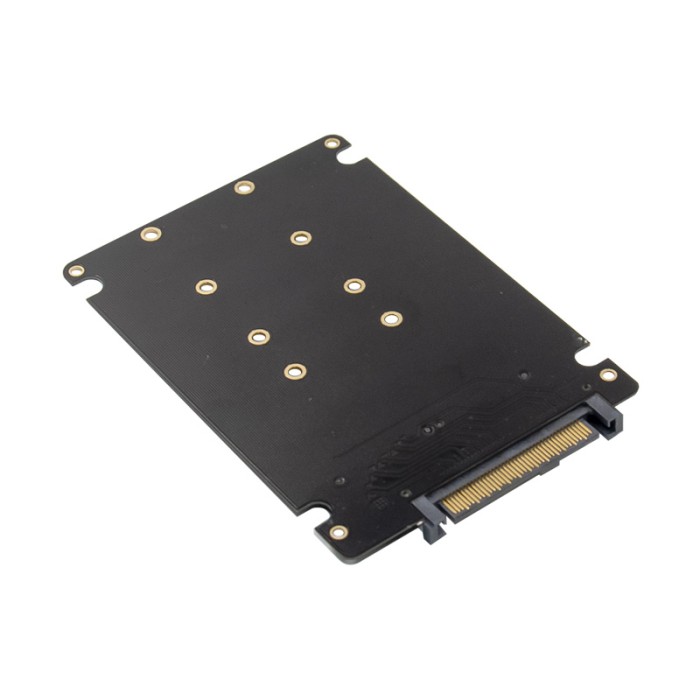

U.2 to M.2 B-key & M.2 M-key NVMe SSD Adapter

Add the fast performance of a M.2 NVMe SSD to your desktop computer or server through an U.2 (SFF-8639) compatible interface on your motherboard. PCIe NVMe M.2 SSD and SATA M.2 SSD can work simultaniously with this board.

Features

• 2 in 1 design
• NVME M.2 to U.2: Turn NVME M.2(Key M) to U.2 SF-8639, support 2280/2260/2242/2230 mm
• SATA M.2 to U.2: Turn SATA M.2(Key B/B+M) to U.2 SF-8639, support 2280/2260/2242/2230 mm
• 2 x M.2 (NVME and SATA ) can work simultaniously
• Connectors
• Connector 1: U.2 connector (SFF-8639, 68 Pin) male
• Connector 2: M.2 M-key for NVME SSDs
• Connector 3: M.2 B/B+M key for SATA SSDs
• Transparent to the operating system and no driver required
• Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers support both PCIe-NVMe

Specifications

• Bus Interface: U.2 connector (SFF-8639, 68-Pin)
• Drive Connectors
• 1 x M.2 M-key for NVME SSDs
• 1 x M.2 B key for SATA SSDs
• Number of Drives: 2
• Drive Sizes: 2280/2260/2242/2230mm
• Operating mode
• Safe Mode: Mirror data from SSDs to mechanical hard drives for optimized data protection
• Capacity Mode: Combine the capacity of solid state drives and mechanical hard disks 2-in-1
• OS Compatibility: Windows 10/8, Windows Server 2012 R2, Linux series, Fedora, SUSE, Ubuntu, Red Hat native drivers

Package Contents

• U.2 to M.2 B-key & M.2 M-key NVMe SSD Adapter
• Screw driver and screws
