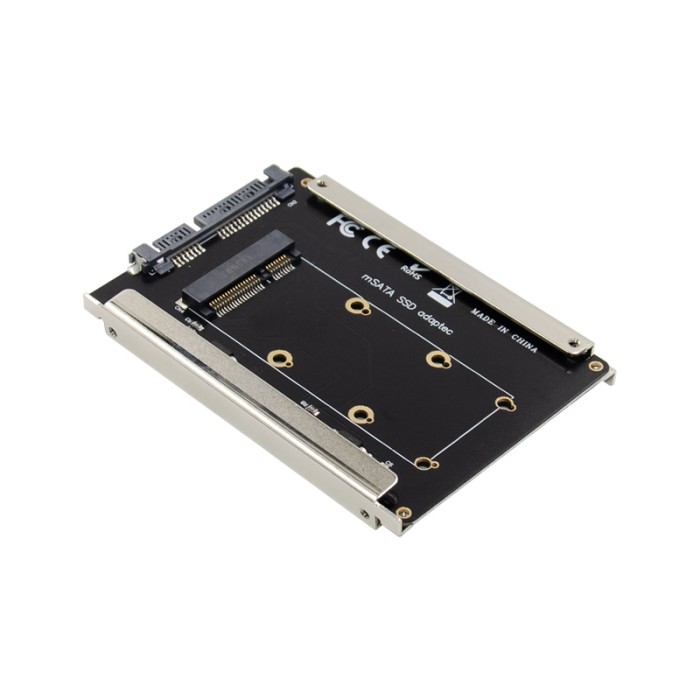

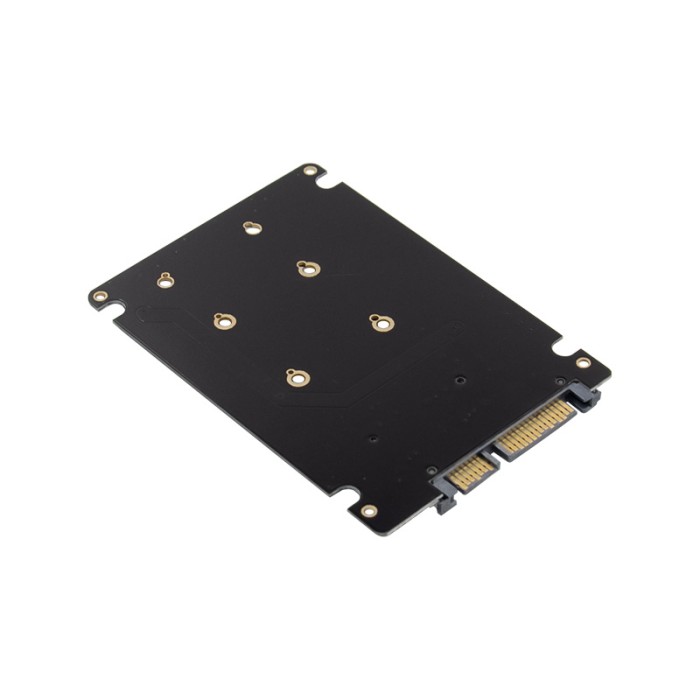

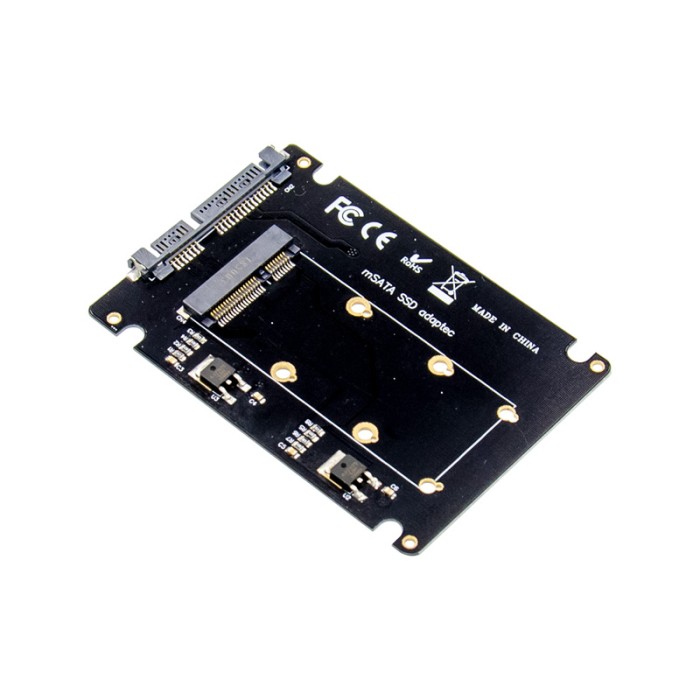

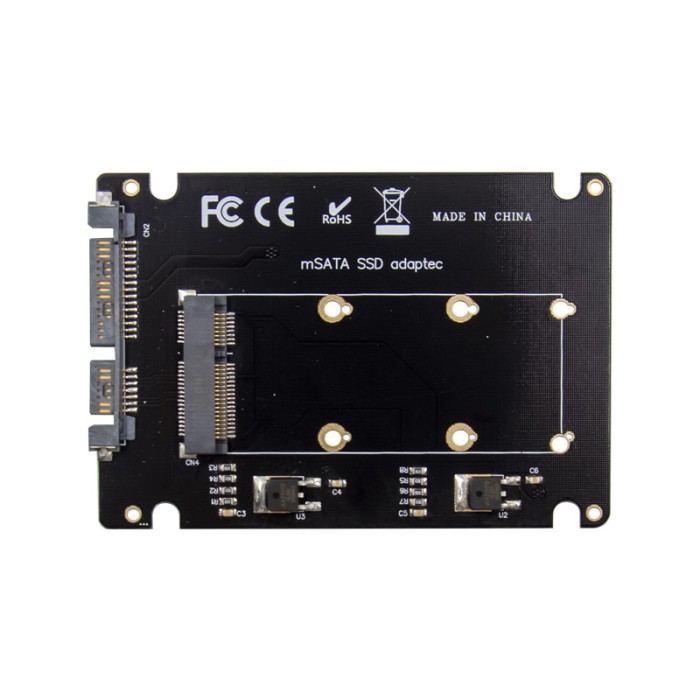

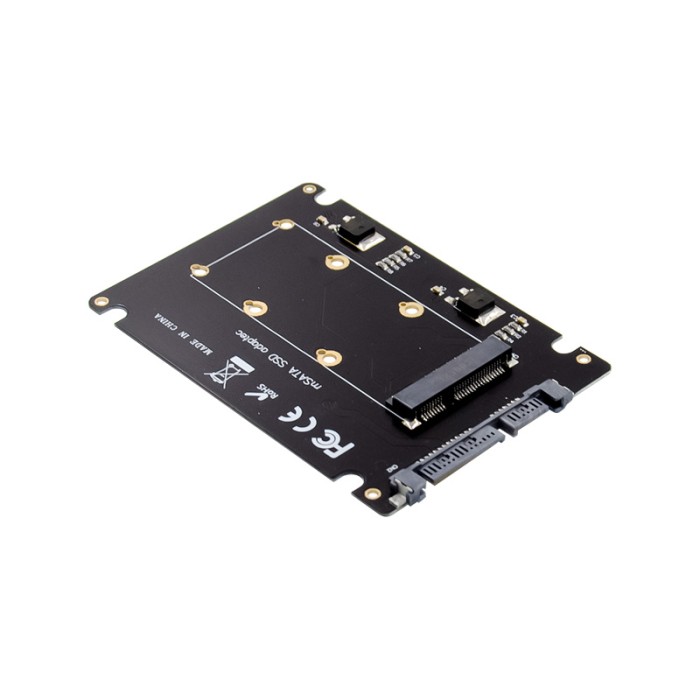

SATA to mSATA SSD Adapter

Vastly increase system performance by adding the speed of an mSATA SSD in any 2.5" SATA application, with the ADP-SA-M2B SATA to mSATA B-key NVMe SSD Adapter. Utilize the full potential of your SATA III controller, with an mSATA SSD reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs can also save you money by reducing your power consumption over regular platter drives.

Features

• Support mSATA drive size: 26.8 x 30mm, 50.95 x 30mm
• Compliant with Serial ATA Specification Rev. v3.0, backward compatible with SATA II and SATA I
• Supports mSATA SSDs with SATA protocol
• Not compatible with mSATA NVMe or AHCI PCI-Express SSDs
• Supports ATA/ATAP-7 specifications
• Working temperature range: -40 ~ 85 ° C
• Operating system: Windows, MAC OS, Linux operating system
• OS independent; No software or drivers required

Applications

• Retrieve/backup data from an mSATA (NGFF) drive with a standard SATA computer
• Turn an unused mSATA (NGFF) drive into a regular 2.5in SATA solid state drive
• Access mSATA (NGFF) drives from an external source, such as a SATA drive enclosure or docking station

Specifications

• Product Type: SATA to mSATA SSD adapter
• Host Bus Interface: 7+15-PIN SATA III interface
• Drive Connector: mSATA slot
• Maximum Data Transfer Rate: 6 Gbps
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Colour: Black

Package Contents

• 1 x SATA to mSATA SSD adapter Card
• 1 x Screw package
