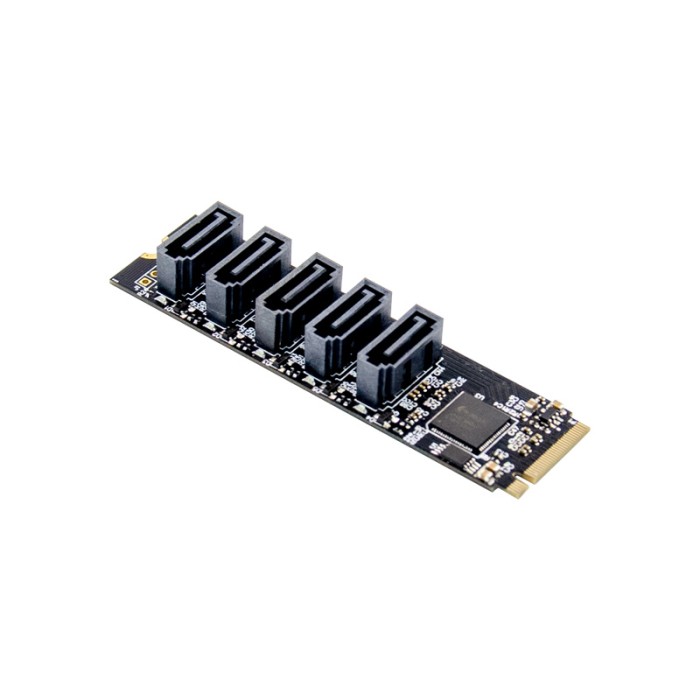

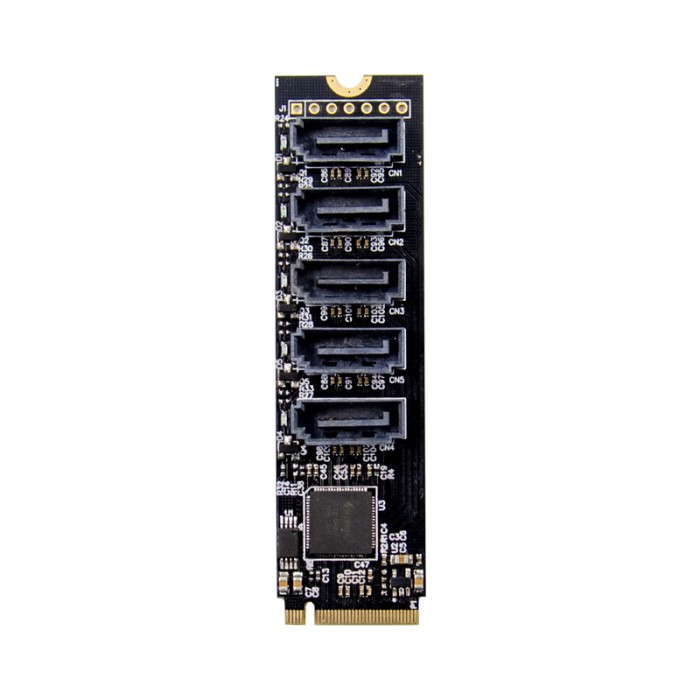

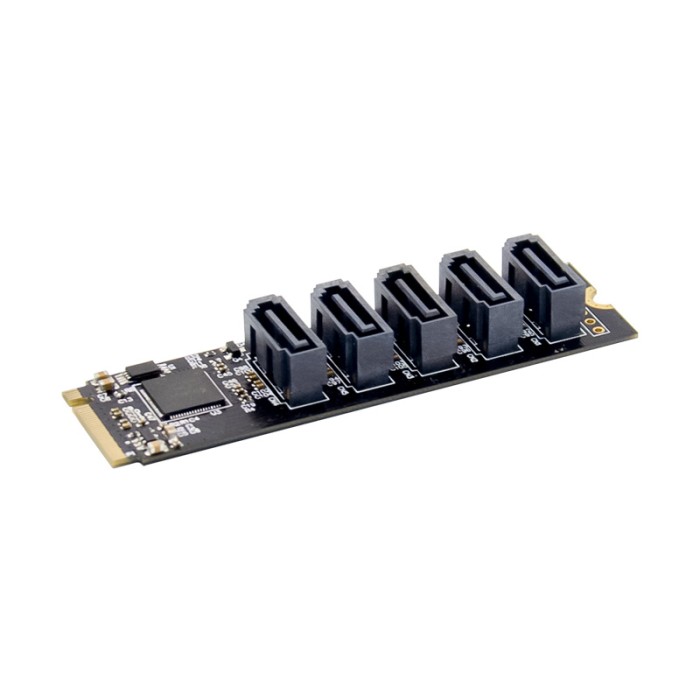

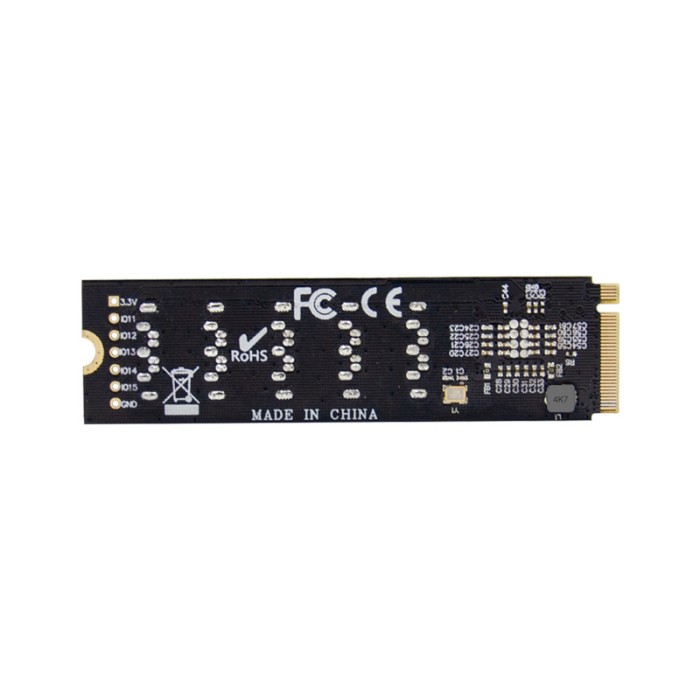

M.2 M-key to 5-port SATA III 6Gbps Expansion Adapter Card

ADP-M2M-5SA is a M.2 M Key to SATA Converter (5 x 6G Stacked Ports) using the PCIe 3.0 x2 channel with the theoretical speed of 6Gbps. Using the JMB585 chipset, the ADP-M2M-5SA can provide M.2 (PCIe Gen3 x2 bandwidth) to 5 Port SATA III 6Gb/s card solution. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2.

Features

• Compliant with M.2 Key M standard
• Supports up to two lane of PCI Express
• Transfer protocol: PCI Express x2
• Complies with PCI Express Base Specification Revision 3.1a
• Supports PCIe Link layer power saving mode
• Supports 5-SATA Port
• Each SATA Port transmit speeds up to 6Gbps
• Support command-based and FIS-based of Port Multiplier
• Complies with SATA Specification Revision 3.2
• Supports AHCI mode and IDE programming interface
• Supports Native Command Queue(NCQ)
• Supports SATA Link Power saving mode(partial and slumber)
• Supports SATA plug-in detection capable
• Supports drive power control and staggered spin-up
• Supports SATA Partial/Slumber power management state
• Plug-and-Play Supported, no additional software installation or settings required
• This card is only design for storage use only, can not boot any OS / System

Specifications

• Control Chipset: JMB585
• Host Bus Connector: M.2 M-Key
• Bus Standard: PCI Exrpess x2, Revision 3.1a
• Connector: 5 * SATA (7 pin, Data)
• Data Rate: Supports communication speeds of 6Gbps, 3Gbps, 1.5Gbps

Package Contents

• 1 x M.2 Key M to SATA 3.0 Expansion card
• 1 x Manual
• 5 x SATA Cable
