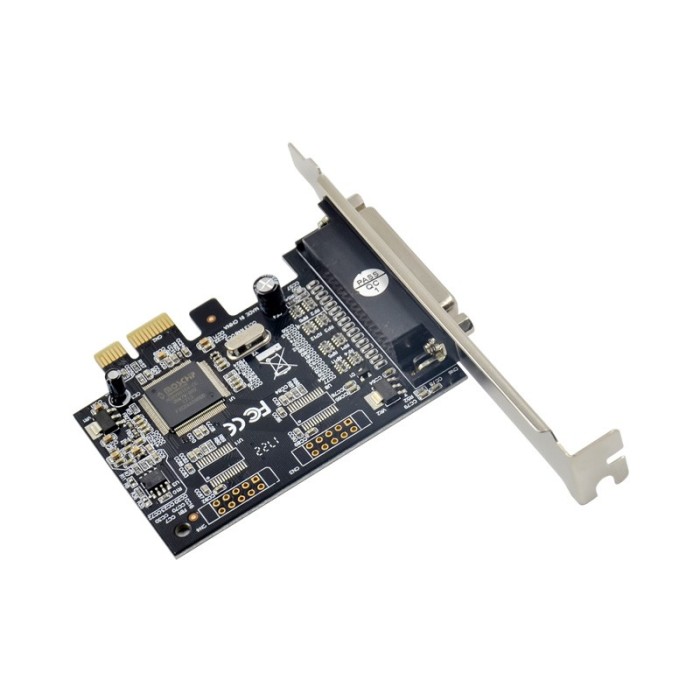

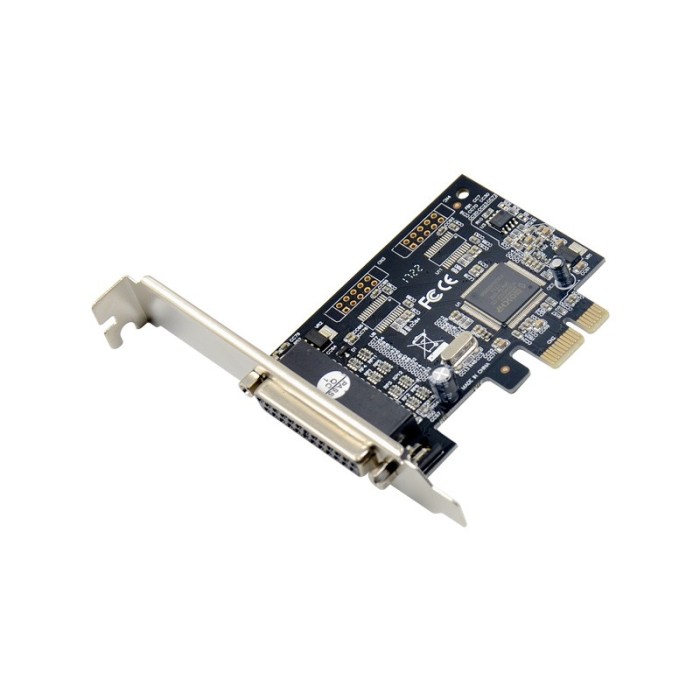

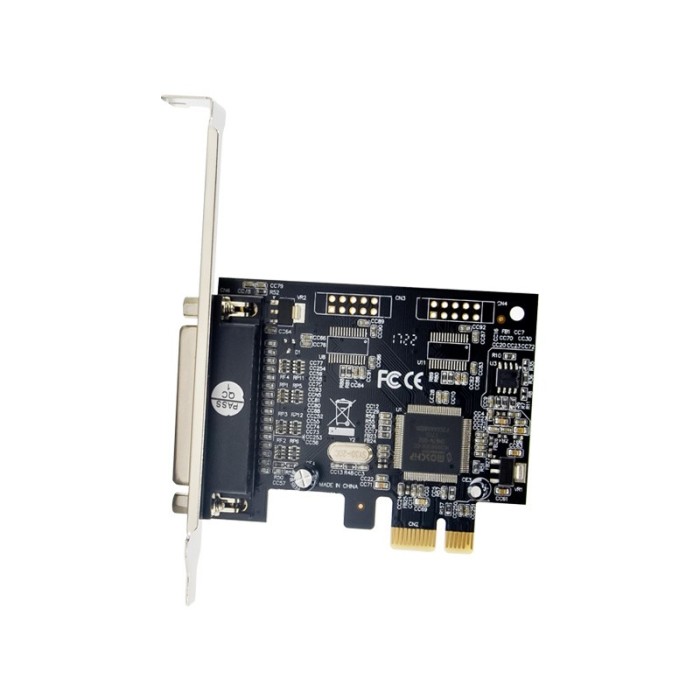

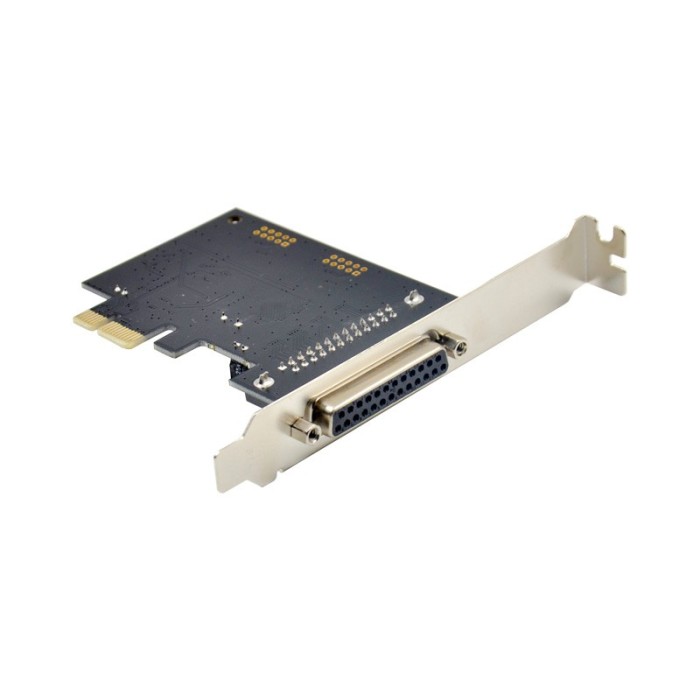

PCIe x1 MCS9901 1-port DB25 IEEE1284 Parallel Adapter Card - SPP/EPP/ECP

The PX1-1P-9901 PCIe x1 1-port DB25 IEEE1284 Parallel Adapter Card can be installed in to any system with a free PCI Express slot, allowing you to connect EPP/ECP parallel peripherals to any computer system. Relying on a native single-chip design (MCS9901 Chipset), this adapter harnesses the true capability of PCI Express - ensuring maximum performance and reliability.

This high performance parallel card adds one IEEE 1284 compatible parallel port and provides fast data rate up to 1.5Mbps, perfect for connecting printers, scanners, CD-R/RW drives, memory card readers, bar code scanners and more.

Features

• Quickly adds one parallel port through an available PCI Express slot
• PCI Express Base Specification, r1.1 (backwards compatible with PCIe r1.0a)
• Single-Lane (x1) PCI-Express with transfer rate 2.5Gb/s Full Duplex channel
• IEEE1284, SPP/EPP/ECP compliant parallel port
• Fast Data Rates up to 1.5 MBytes/sec
• 128-byte deep transmit/receive FIFO
• Fully Plug & Play compatible

Specifications

• Chipset: ASIX/MosChip MCS9901
• Bus connector: PCI Express x1
• Version: PCI Express 1.1
• Connectors: 1 x 25-pin Parallel Port, Female

• FIFO: 128 byte
• Data transfer rate: Up to 1.5 Mbps
• OS Compatibility
• Windows® CE 6.0 / 5.0, 95, 98SE, 2000, XP, XP Embedded, Vista, 7, 8, 8.1, 10
• Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
• Linux 2.4.x to 4.11.x LTS Versions only
• Environmental conditions:
• Operating temperature: 32 to 140 degrees F
• Storage temperature: 14 to 158 degrees F
• Relative humidity: 5% to 90% RH (non-condensing)
• Certifications/Standards: FCC, CE, RoHS

Package Contents

• PCI Express MCS9901 Parallel Card
• Low Profile Bracket
• Driver CD
• Instruction Manual
