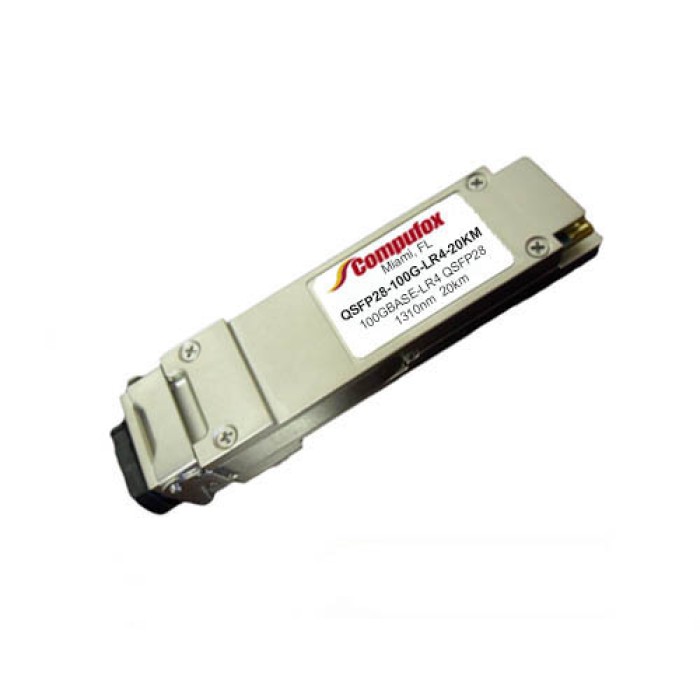

100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate Optical Transceiver for Telecom (SMF, 1310nm, 20km, LC, DOM)
- Product Code: QSFP28-100G-LR4-20KM
- Availability: In Stock
-
$995.00
Available Options
100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Dual Rate Optical Transceiver Module for Telecom (SMF, 1310nm, 20km, LC, DOM).
Features
- Form Factor: QSFP28
- Data Rate (max): 100Gb/s
- Wavelength: 1310nm
- Max Cable Distance: 20km
- Connector: LC duplex
- Cable Type: SMF
- TX Power (100G): -1.0~4.5dBm
- TX Power (112G): 0~4dBm
- Transmitter Type: 4 x LAN WDM DML TOSA
- Receiver Sensitivity (100G): <-9.5dBm
- Receiver Sensitivity (112G): <-9.0dBm
- DDM/DOM: Yes
- Commercial Temperature Range: 0 to 70°C (32 to 158°F)
- Protocols: 100G Ethernet
