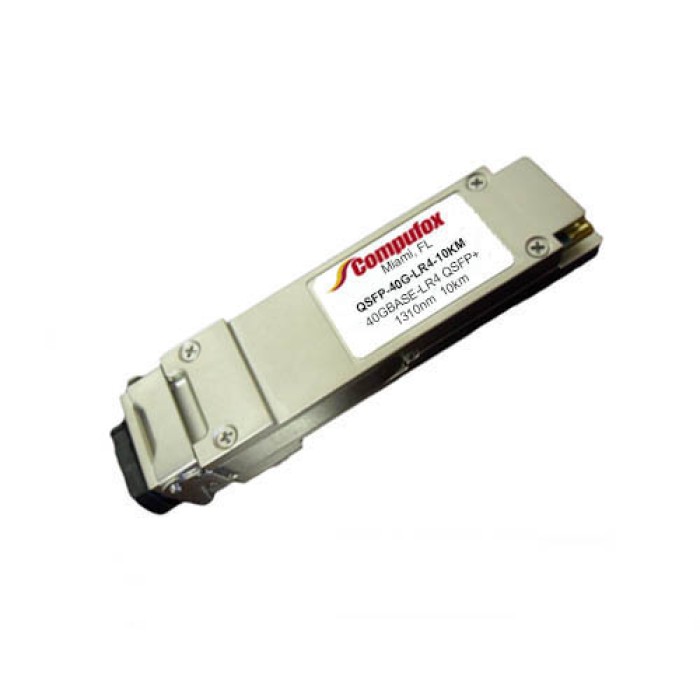

40GBase-LR4 QSFP+ Optical Transceiver (SMF, 1310nm, 10km, LC)

40GBase-LR4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 10km, LC, DOM).

Features

• 10km reach on Single mode fiber
• Compliant with QSFP+ MSA module form factor
• Compliant with IEEE 802.3ba*40Gbase-LR4，4x10G 1271, 1291, 1311, 1331nm CWDM DFB 4x10G Electrical I/O (XLPPI)
• Operating case temperature 0°C to +70°C
• Power consumption <3.5 W
• Duplex LC receptacle optical interface(2 Fiber)
• Digital diagnostic function

Applications

• 40G Ethernet links
• Digital diagnostic function
• Infiniband QDR and DDR interconnects
• Client-side 40G Telecom connections

Specifications

• Part Number: QSFP-40G-LR4-10KM
• Product Type: Transceiver Module
• Form Factor: QSFP+
• Data Rate (max): 41.2Gb/s
• Distance (max): 10KM
• Transmitter: CWDM DFB
• Receiver: PIN
• Digital Diagnostic: Yes
• Connector: Duplex LC
• Cable Type: SMF
• Wavelength: 1310nm Band
• Operating Temperature: 0 to 70°C (32 to 158°F)

Compatible Switches and Routers:

• Cisco 15454W (NCS2K-MR-MXP-LIC)
• Cisco ASR 1000 Series (EPA-1X40GE)
• Cisco ASR 1000 Series (EPA-2X40GE)
• Cisco ASR 9000 Series (A9K-MPA-1X40GE)
• Cisco ASR 9000 Series (A9K-MPA-2X40GE)
• Cisco ASR 9000 Series (A9K-MPA-2X40GE)
• Cisco ASR 9000 Series (A9K-8x100GE-TR-V2)
• Cisco ASR 9000 Series (A99-32X100GE-TR)
• Cisco ASR 9000 Series (A9K-16X100GE-TR)
• Cisco ASR 903 Router (A900-IMA2F)
• Cisco Carrier Routing System (2X100GE-FLEX-40)
• Cisco Catalyst 3560-X Series (WS-C3560X-24T)
• Cisco Catalyst 3560-X Series (WS-C3560X-48T)
• Cisco Catalyst 3560-X Series (WS-C3560X-24P)
• Cisco Catalyst 3560-X Series (WS-C3560X-48P)
• Cisco Catalyst 3560-X Series (WS-C3560X-48PF)
• Cisco Catalyst 3650 Series (WS-C3650-12X48UZ)
• Cisco Catalyst 3850 Series (C3850-NM-2-40G)
• Cisco Catalyst 3850 Series (WS-C3850-48XS)
• Cisco Catalyst 4500 Series (WS-X45-SUP9-E)
• Cisco Catalyst 6000 Series (WS-X6904-40G-2TXL)
• Cisco Catalyst 6800 Series (C6800-32P10G-XL)
• Cisco Catalyst 6800 Series (C6800-16P10G-XL)
• Cisco Catalyst 6800 Series (C6800-8P10G-XL)
• Cisco Catalyst 6800 Series (C6800-32P10G)
• Cisco Catalyst 6800 Series (C6800-16P10G)
• Cisco Catalyst 6800 Series (C6800-8P10G)
• Cisco Catalyst 6800 Series (C6800-SUP6T)
• Cisco Catalyst 6800 Series (C6800-SUP6T-XL)
• Cisco Catalyst 6800 Series (C6824-X-LE-40G)
• Cisco Catalyst 6800 Series (C6840-X-LE-40G)
• Cisco Catalyst 6800 Series (C6800-8P40G)
• Cisco Catalyst 6800 Series (C6800-8P40G-XL)
• Cisco Catalyst 9200 Series (C9200-NM-2Q)
• Cisco Catalyst 9300 (C9300-NM-2Q)
• Cisco Catalyst 9400 Series (C9400-SUP-1)
• Cisco Catalyst 9400 Series (C9400-SUP-1XL)
• Cisco Catalyst 9400 Series (C9400-SUP-1XL-Y)
• Cisco Catalyst 9500 Series (C9500-24Y4C)
• Cisco Catalyst 9500 Series (C9500-48Y4C)
• Cisco Catalyst 9500 Series (C9500-12Q)
• Cisco Catalyst 9500 Series (C9500-24Q)
• Cisco Catalyst 9500 Series (C9500-24Q)
• Cisco Catalyst 9500 Series (C9500-NM-2Q)
• Cisco Catalyst 9500 Series (C9500-32QC)
• Cisco Catalyst 9500 Series (C9500-32C)
• Cisco Catalyst 9600 Series (C9600-LC-24C)
• Cisco Catalyst 9800 Series (C9800-1X40GE)
• Cisco Catalyst 9800 Series (C9800-2X40GE)
• Cisco CBR8 (CBR-SUP-250G)
• Cisco FPRHIGH (FPR4K-NM-4X40G)
• Cisco FPRUHI (FPR9K-NM-4X40G)
• Cisco NCS 5000 Series (NCS-5011)
• Cisco NCS 540 Router (N540-24Z8Q2C-SYS)
• Cisco NCS 540 Router (N540-ACC-SYS)
• Cisco NCS 540 Router (N540X-ACC-SYS)
• Cisco NCS 540 Router (N540-24Z8Q2C-M)
• Cisco NCS 5500 Series (NC55-36X100G)
• Cisco NCS 5500 Series (NC55-24X100G-SE)
• Cisco NCS 5500 Series (NC55-18H18F)
• Cisco NCS 5500 Series (NC55-24H12F-SE)
• Cisco NCS 5500 Series (NC55-36X100G-A-SE)
• Cisco NCS 5500 Series (NCS-5501)
• Cisco NCS 5500 Series (NCS-5501-SE)
• Cisco NCS 5500 Series (NCS-5502)
• Cisco NCS 5500 Series (NCS-5502-SE)
• Cisco NCS 5500 Series (NCS-55A1-36H-S)
• Cisco NCS 5500 Series (NCS-55A1-24H)
• Cisco NCS 5500 Series (NC55-36X100G-S)
• Cisco NCS 5500 Series (NCS-55A1-36H-SE-S)
• Cisco NCS 5500 Series (NC55-MOD-A-S)
• Cisco NCS 5500 Series (NC55-MPA-4H-S)
• Cisco NCS 5500 Series (NC55-MPA-4H-HD-S)
• Cisco NCS 5500 Series (NC55-MPA-1TH2H-S)
• Cisco NCS 5500 Series (NC55-MOD-A-SE-S)
• Cisco NCS 6000 Series (NCS-F-SCSW)
• Cisco Nexus 2000 Series (N2K-C2248PQ)
• Cisco Nexus 2000 Series (N2K-C2348TQ-E)
• Cisco Nexus 2000 Series (N2K-C2348TQ)
• Cisco Nexus 2000 Series (N2K-C2348UPQ)
• Cisco Nexus 2000 Series (N2K-C2332TQ)
• Cisco Nexus 3000 (N3K-C3232C)
• Cisco Nexus 3000 (N3K-C36180YC-R)
• Cisco Nexus 3000 (N3K-C3064PQ)
• Cisco Nexus 3000 (N3K-C3064PQ-10GE)
• Cisco Nexus 3000 (N3K-C3064PQ-10GX)
• Cisco Nexus 3000 (N3K-C3016Q-40GE)
• Cisco Nexus 3000 (N3K-C3064TQ-32T)
• Cisco Nexus 3000 (N3K-C3064TQ-10GT)
• Cisco Nexus 3000 (N3K-C3132Q-40GE)
• Cisco Nexus 3000 (N3K-C3132Q-40GX)
• Cisco Nexus 3000 (N3K-C3132Q-XL)
• Cisco Nexus 3000 (N3K-C3132Q-V)
• Cisco Nexus 3000 (N3K-C3172TQ-10GT)
• Cisco Nexus 3000 (N3K-C3172TQ-32T)
• Cisco Nexus 3000 (N3K-C3172PQ-10GE)
• Cisco Nexus 3000 (N3K-C3172PQ-XL)
• Cisco Nexus 3000 (N3K-C3172TQ-XL)
• Cisco Nexus 3000 (N3K-C31108PC-V)
• Cisco Nexus 3000 (N3K-C31108TC-V)
• Cisco Nexus 3000 (N3K-C31128PQ-10GE)
• Cisco Nexus 3000 (N3K-C3164Q-40GE)
• Cisco Nexus 3000 (N3K-C3264Q)
• Cisco Nexus 3000 (N3K-C3636C-R)
• Cisco Nexus 3000 (N3K-C3264C-E)
• Cisco Nexus 3000 (N3K-C3132C-Z)
• Cisco Nexus 3000 (N3K-C34180YC)
• Cisco Nexus 3000 (N3K-C3408-S)
• Cisco Nexus 3000 (N3K-C3432D-S)
• Cisco Nexus 3000 (N3K-C3464C)
• Cisco Nexus 5000 Series (N55-C55XX)
• Cisco Nexus 5000 Series (N55-M4Q)
• Cisco Nexus 5000 Series (N5K-C5672UP-16G)
• Cisco Nexus 5000 Series (N5K-C5672UP)
• Cisco Nexus 5000 Series (N5K-C5648Q)
• Cisco Nexus 5000 Series (N5600-M12Q)
• Cisco Nexus 5000 Series (N5K-C5624Q)
• Cisco Nexus 5000 Series (N5K-C5696Q)
• Cisco Nexus 5000 Series (N5696-M12Q)
• Cisco Nexus 5000 Series (N5K-C56128P)
• Cisco Nexus 5000 Series (N56-M24UP2Q)
• Cisco Nexus 6000 Series (N6K-C6004-96Q)
• Cisco Nexus 6000 Series (N6K-C6004-M12Q)
• Cisco Nexus 6000 Series (N6004-B-24Q)
• Cisco Nexus 6000 Series (N6K-C6001-64P)
• Cisco Nexus 6000 Series (N6K-C6001-64T)
• Cisco Nexus 7000 Series (N7K-M206FQ-23L)
• Cisco Nexus 7000 Series (N7K-F312FQ-25)
• Cisco Nexus 7000 Series (N7K-M324FQ-25L)
• Cisco Nexus 7700 Series (N77-M324FQ-25L)
• Cisco Nexus 7700 Series (N77-F324FQ-25)
• Cisco Nexus 7700 Series (N77-M312CQ-26L)
• Cisco Nexus 7700 Series (N77-F430CQ-36)
• Cisco Nexus 9200 (N9K-C92300YC)
• Cisco Nexus 9200 (N9K-C9236C)
• Cisco Nexus 9200 (N9K-C92304QC)
• Cisco Nexus 9200 (N9K-C9272Q)
• Cisco Nexus 9200 (N9K-C92160YC-X)
• Cisco Nexus 9300 (N9K-C93180YC-EX)
• Cisco Nexus 9300 (N9K-C93180YC-FX)
• Cisco Nexus 9300 (N9K-C9348GC-FXP)
• Cisco Nexus 9300 (N9K-C93240YC-FX2)
• Cisco Nexus 9300 (N9K-C9336C-FX2)
• Cisco Nexus 9300 (N9K-M12PQ)
• Cisco Nexus 9300 (N9K-M6PQ)
• Cisco Nexus 9300 (N9K-M6PQ-E)
• Cisco Nexus 9300 (N9K-C9372TX)
• Cisco Nexus 9300 (N9K-C9372PX)
• Cisco Nexus 9300 (N9K-C9372PX-E)
• Cisco Nexus 9300 (N9K-C9332PQ)
• Cisco Nexus 9300 (N9K-C93120TX)
• Cisco Nexus 9300 (N9K-C9372TX-E)
• Cisco Nexus 9300 (N9K-C93108TC-EX)
• Cisco Nexus 9300 (N9K-C93180LC-EX)
• Cisco Nexus 9300 (N9K-C93180LC-EX)
• Cisco Nexus 9300 (N9K-C93108TC-FX)
• Cisco Nexus 9300 (N9K-C9364C)
• Cisco Nexus 9300 (N9K-C9336PQ)
• Cisco Nexus 9300 (N9K-C9332C)
• Cisco Nexus 9300 (N9K-C93360YC-FX2)
• Cisco Nexus 9300 (N9K-C92348GC-X)
• Cisco Nexus 9300 (N9K-C93216TC-FX2)
• Cisco Nexus 9300 (N9K-C93600CD-GX)
• Cisco Nexus 9300 (N9K-C9316D-GX)
• Cisco Nexus 9500 (N9K-X97160YC-EX)
• Cisco Nexus 9500 (N9K-X9636PQ)
• Cisco Nexus 9500 (N9K-X9564PX)
• Cisco Nexus 9500 (N9K-X9564TX)
• Cisco Nexus 9500 (N9K-X9636Q-R)
• Cisco Nexus 9500 (N9K-X9636C-R)
• Cisco Nexus 9500 (N9K-X9636C-RX)
• Cisco Nexus 9500 (N9K-X9464PX)
• Cisco Nexus 9500 (N9K-X9464TX)
• Cisco Nexus 9500 (N9K-X9536PQ)
• Cisco Nexus 9500 (N9K-X9432PQ)
• Cisco Nexus 9500 (N9K-X9432C-S)
• Cisco Nexus 9500 (N9K-X9464TX2)
• Cisco Nexus 9500 (N9K-X9732C-EX)
• Cisco Nexus 9500 (N9K-X9736C-FX)
• Cisco Nexus 9500 (N9K-X9736C-EX)
• Cisco Nexus 9500 (N9K-X9788TC-FX)
• Cisco Nexus 9500 (N9K-X9736PQ)
• Cisco Nexus 9500 (N9K-X9732C-FX)
• Cisco Nexus 9500 (N9K-X9736Q-FX)
• Cisco UCSB (UCS-FI-6332-U)
• Cisco UCSB (UCS-FI-6332-16UP-U)
• Cisco UCSB (UCS-IOM-2304)
• Cisco UCSB (UCS-FI-6454)
• Cisco UCSC (UCSC-PCIE-C40Q-03)
• Cisco UCSC (UCSC-MLOM-C40Q-03)
• Cisco UCSC (UCSC-PCIE-C100-04)
• Cisco UCSC (UCSC-MLOM-C100-04)
• Cisco UCSC (UCSC-PCIE-QD40GF)
