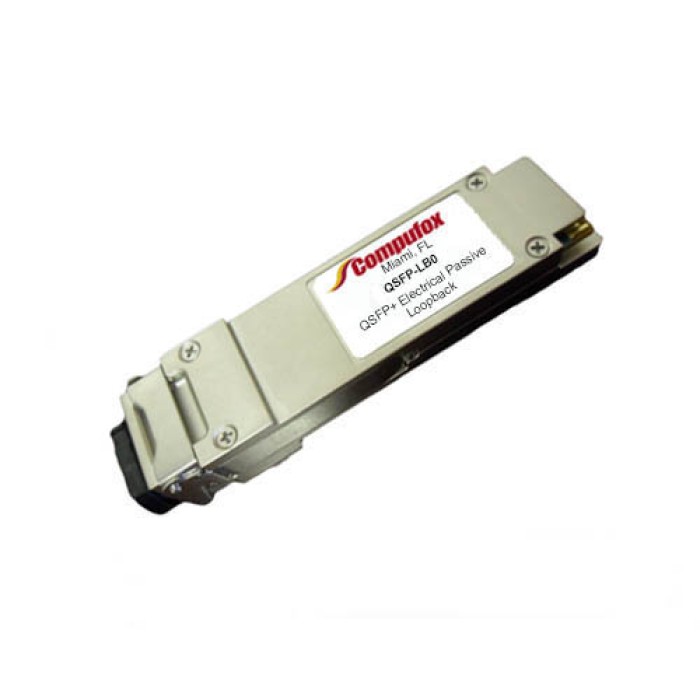

QSFP+ Electrical Passive Loopback
- Product Code: QSFP-LB0
- Availability: In Stock
-
$22.00
Available Options
QSFP+ Electrical Passive Loopback.
QSFP/QSFP+ Passive Electrical Loopback is used for testing QSFP/QSFP+ transceiver ports in board level test. By substituting for a full-featured QSFP/QSFP+ transceiver, the electrical loopback provides a cost-effective low loss method for QSFP/QSFP+ port testing.
The loopback module is packaged in a standard MSA housing compatible with all QSFP/QSFP+ ports. Transmit data from the host is electrically routed, (internal to the loopback module), to the receive data outputs and back to the host.
It provides an economical way to exercise QSFP/QSFP+ ports during R&D validation, production testing, and field testing.
The loopback module is packaged in a standard MSA housing compatible with all QSFP/QSFP+ ports. Transmit data from the host is electrically routed, (internal to the loopback module), to the receive data outputs and back to the host.
It provides an economical way to exercise QSFP/QSFP+ ports during R&D validation, production testing, and field testing.
Application
- QSFP Port/System
- Server blade testing
- ITU-T Recommendation G.957 (STM-1, 4 & 16)
- Ethernet IEEE 802.3 (Gigabit, 10 Gigabit and 40 Gigabit Ethernet)
- SDR, DDR and QDR
- SONET, SDH, GBE, FC Support, Infiniband
Features
- Customizable power consumption
- Custom memory maps available
- Supports 40Gbps total data rate
- Hot-pluggable MSA footprint
- Full SFF-8436 MSA compliant
- Temperature range from 0°Cto 80°C
- Compliant with SONET, SDH, GBE, Fiber Channel
- MSA Compliant EEPROM
- Power Consumption Different Option
- Internal Attenuation Different Option
