Mini PCI Express 1-port RJ45 Gigabit Ethernet Network Adapter with Intel JL82574L Chip

MPE-GE-1T-82574 is a mini PCIe single-port Gigabit Ethernet network adapter based on Intel 82574 controller. This adapter card is designed with mini PCIe slot and is designed for industrial equipment such as industrial PCs and single board machines with Mini PCIe interface slots. It can solve the problem of compact space of equipment. The card supports a 10/100/1000 Mbps link rate that automatically adapts to existing Ethernet networks. This Ethernet adapter can be widely used in network equipment such as industrial computer, embedded computer, single board computer, digital multimedia, etc. It can realize system support such as Windows, Linux, MAC OS.

Features

• Compatible with PCI-E mini card electromechanical specification revision1.2
• Compatible with Half /Full size Mini card type form factor
• Fully compliant with PCI-Express Base Specification Revision1.1
• Single-Lane(x1)PCI-Express with throughput up to 2.5Gbps
• Fully Plug and Play compatible
• Full-duplex operation at 10/100/1000Mb/s
• Half-duplex operation at 10/100Mb/s
• 10/100/1000 data rate auto negotiation operation
• Fully compliant with IEEE802.3,802.3u,802.3ab
• Support full duplex flow control(IEEE802.3x)
• Supports IEEE802.1P Layer 2 Priority Encoding
• Supports IEEE802.1Q VLAN tagging
• IPv4 and IPv6 checksum offload support
• Receive Side Scaling(RSS) with two hardware receive queues
• Supports jumbo frame to 9k bytes
• Crossover detection and Auto correction operation

Specifications

• Controller: Intel JL82574L
• Bus Type: PCI Express v1.1 (2.5GT/s)
• Connector: 1 * 8-Pin RJ45
• Transmission Rate: 10/100/1000Mbps
• Cable Medium: Copper
• Cable Type
• 1000Base-T Cat5E/6 or higher:up to 100m
• 100Base-Tx Cat5/5E/6 or higher: up to 100m
• 10Base-T Category 3/4/5/5E/6 or higher: up to 100m
• Bracket: Low Profile and Full-height Bracket
• Operating System Support
• Windows XP
• Windows 7
• Windows Vista
• Windows 8/8.1
• Windows 10
• Windows Server 2003 R2
• Windows Server 2008
• Windows Server 2008 R2
• Windows Server 2012
• Windows Server 2012 R2
• Windows Server 2016
• Windows Server 2016 R2 Core
• Linux Stable kernel version 2.4.x/2.6.x/3.x/4.x or later
• RHEL/CentOS  5.x/6.x/7.x or later
• Linux SLES 11 SP3 / SLES 12 or later
• FreeBSD 9 / 10 / 11 or later
• VMware ESX/ESXi 4.x/5.x/6.x or later

Technical Parameters

• IEEE Standards
• IEEE 802.3
• IEEE802.3ad
• IEEE 802.1p
• IEEE 802.1Q VLANs
• IEEE 802.3u 100Base-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• PXE: Yes
• DPDK: Yes
• Jumbo Frame: Yes
• iSCSI: No
• FCoE: No
• WOL: No

Environment Features

• Operating Temperature: 0 ℃ to 55 ℃(32 ℉ to 131 ℉)
• Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity: 90% non condensing under 35℃
• Certification: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC

LED

• 1000Mbps : Green + Green Blink
• 10/100Mbps: Green Blink

Physical Features

• PCB size(mm): 30*26.8*1.0mm(M)+ 63*25.3*1.6mm（M1）
• Weight(g): 38

Package Contents

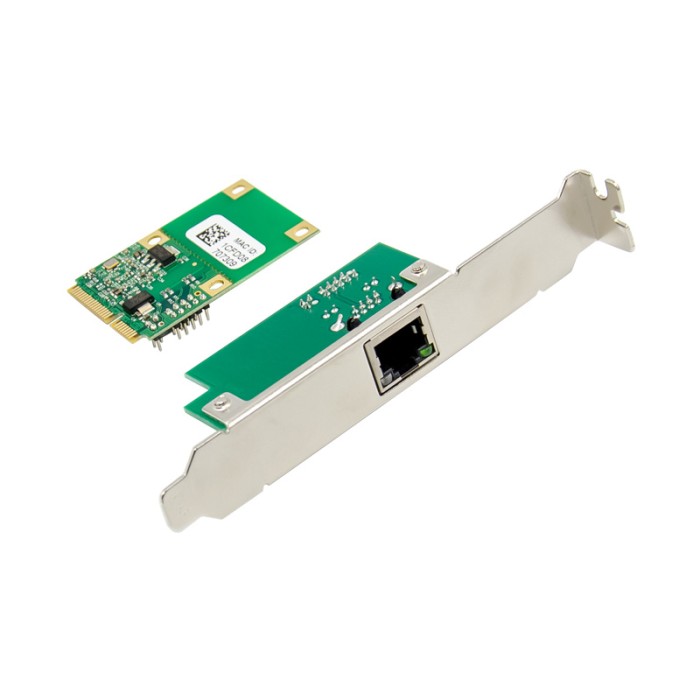

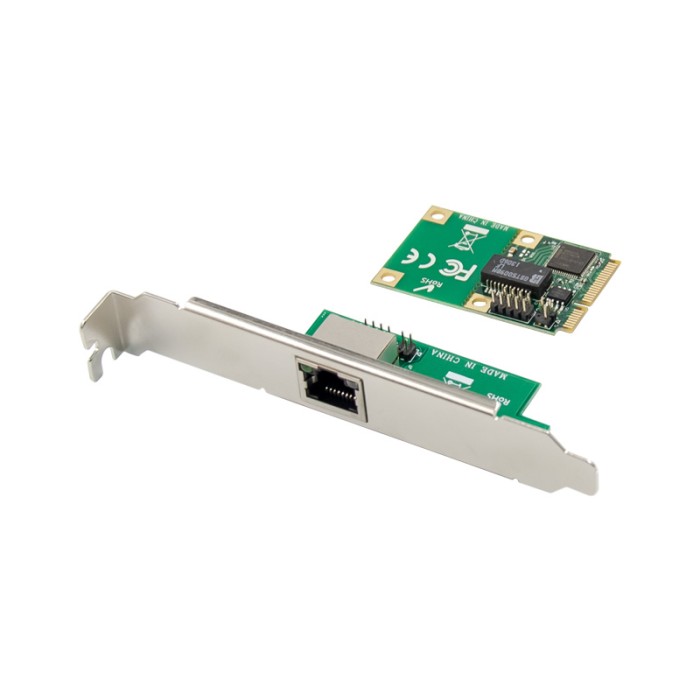

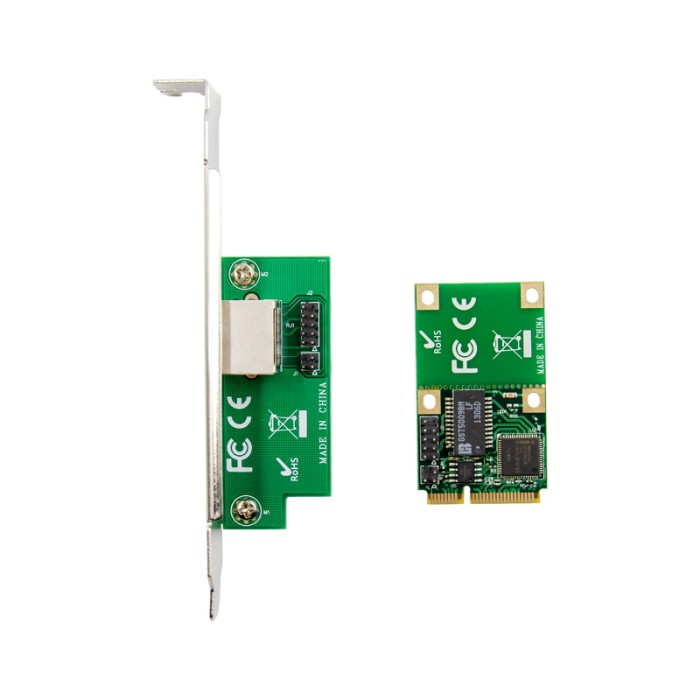

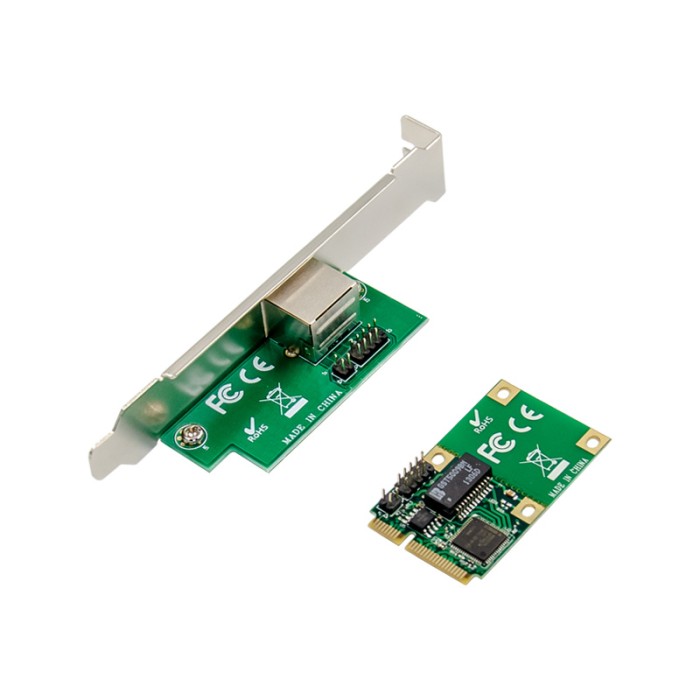

• 1 * Mini PCIe Intel 82574L Gigabit network adapter-main card
• 1 * Mini PCIe Intel 82574L Gigabit network adapter -daughter card

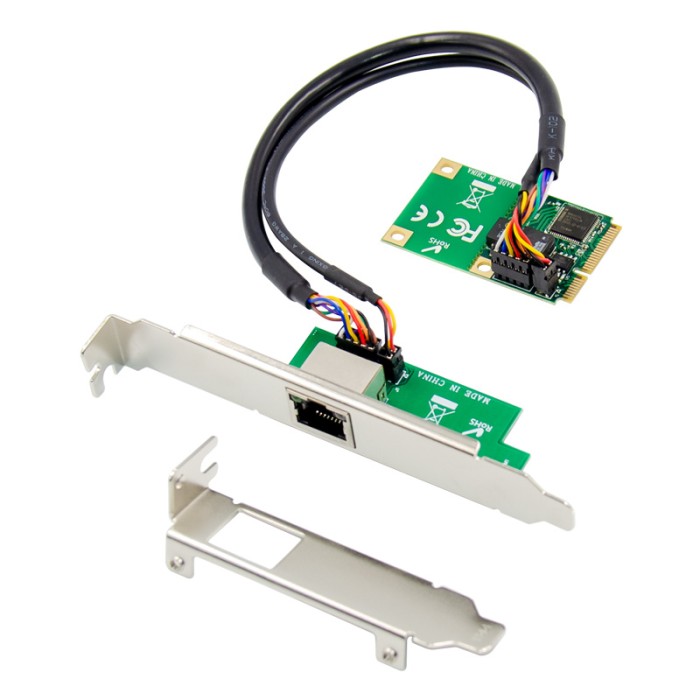

• 1 * 10-Pin network cable
• 1 * 4-Pin LED cable
• 1 * User Manual
• 1 * Driver CD
• 1 * Low profile bracket
