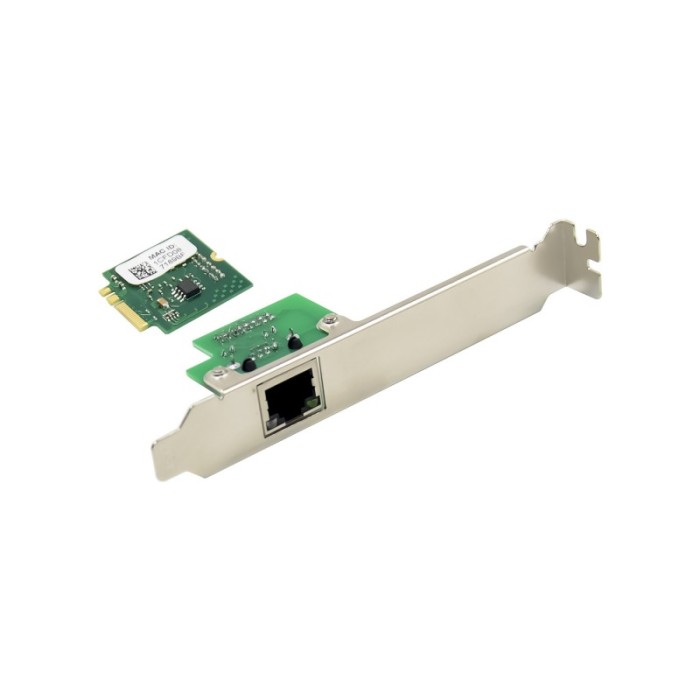

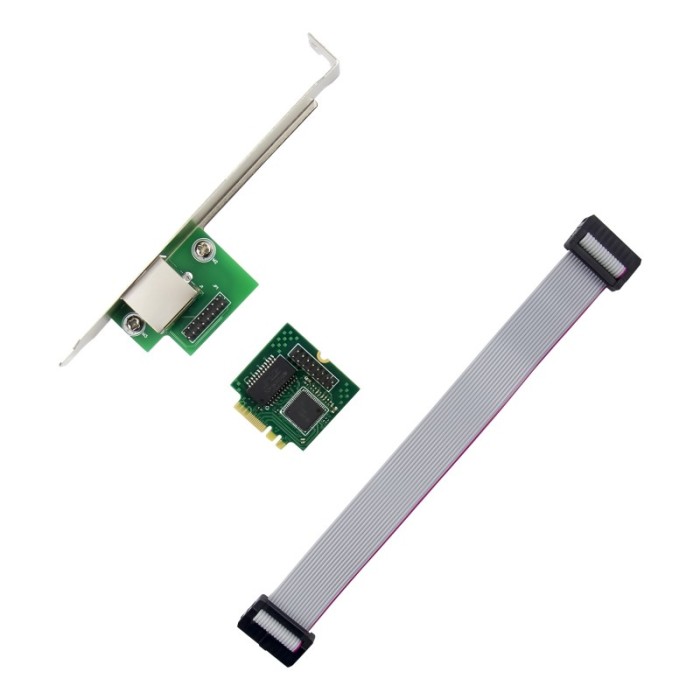

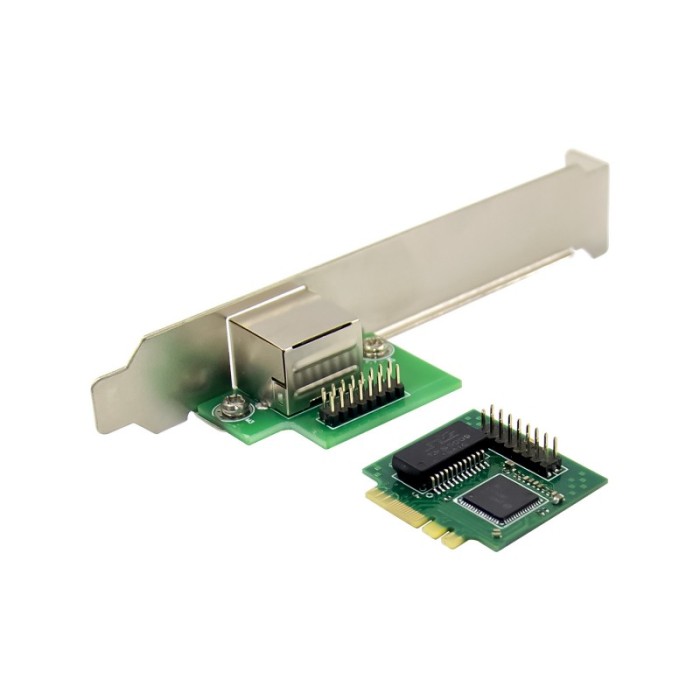

M.2 A+E 1-port RJ45 Intel WGI210AT Chipset Gigabit Ethernet Network Adapter

M2AE-GE-1T is a single-port copper Gigabit Ethernet network adapter with M.2 A+E Key interface based on the Intel I210 main control solution, with high performance, high stability, high quality and very good compatibility

This adapter card adopts the Mini structure design of the M.2 A+E Key interface, which can be adapted to various compatible M.2 interface slots. It is designed to be widely used in small PCs, industrial computers, single board computers, Digital multimedia and other devices with M.2 interface slots can be used to solve the problem of compact device space. The Ethernet adapter card can adaptively support 10/100/1000Mbps connection.

This Ethernet adapter adopts 10/100/1000Mbps adaptive network interface design, users can use the existing network wiring in a variety of applications. At the same time, it can be used in a complex and compact environment and has excellent safety and stability.

Features

• A single port gigabit copper ethernet network adapter with M.2 A+E Key interface;
• The Mini structure design with M.2 A+E Key interface can be adapted to various compatible M.2 interface slots;
• It is designed to be widely used in small PCs, industrial computers, single board computers, digital multimedia and other devices that contain M.2 interface slots;
• It has high performance, high stability, high quality and very good compatibility.

Specifications

• Controller: Intel I210
• Bus Type: M.2 A+E Key
• Data Rate: 10/100/1000MbE
• Connector: 1 * RJ45
• Bracket: Full-height & half-height configurations
• Power Consumption: 1.0W
• System Support
• Windows 7/8/8.1/10
• Windows Server 2008 R2/2012 R2/2016 R2/2019 R2;
• Linux Stable Kernel version 2.6.32.x/3.x/4.x/5.x or later;
• Linux CentOS/RHEL 6.x / 7.x or later;
• Ubuntu 14.x/15.x/16.x or later;
• UOS V20 or later
• VMware ESX/ESXi 4.x/5.x/6.x or later
