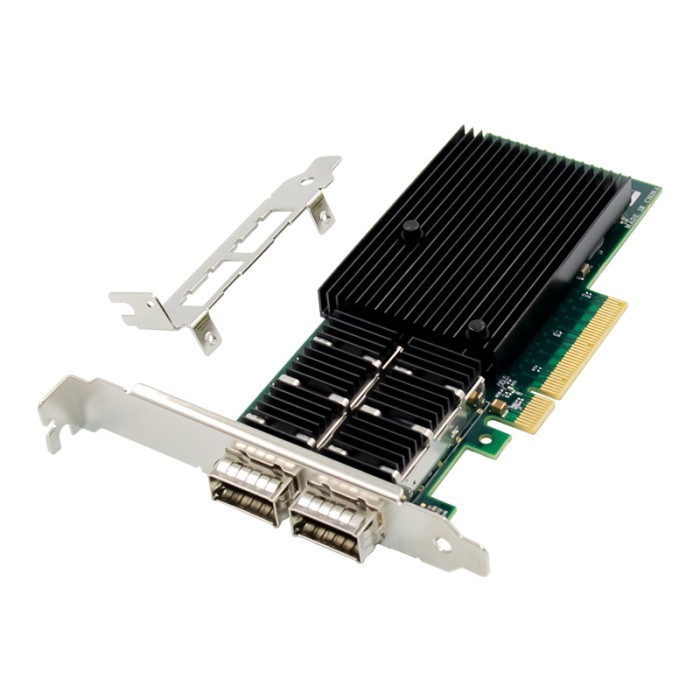

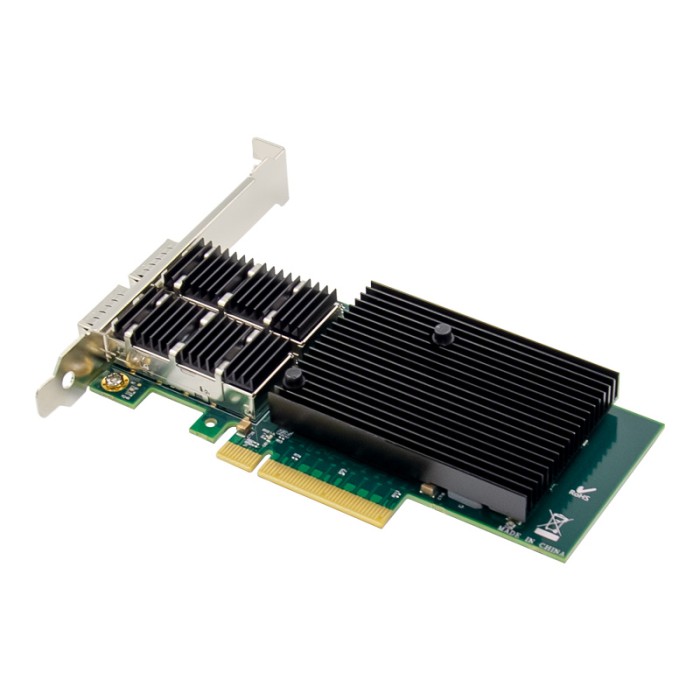

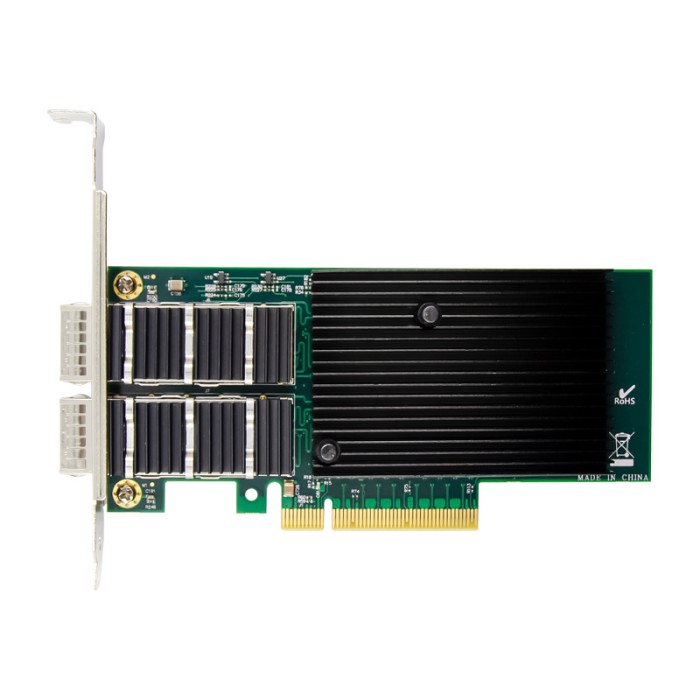

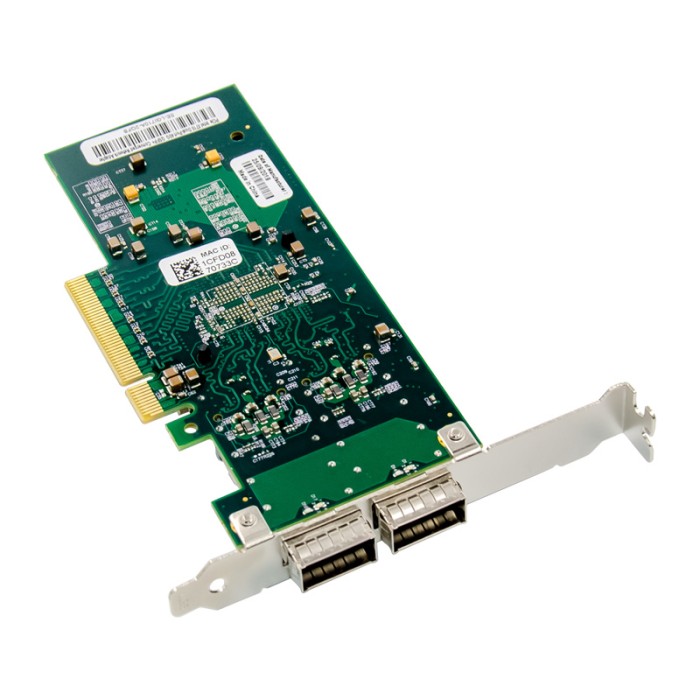

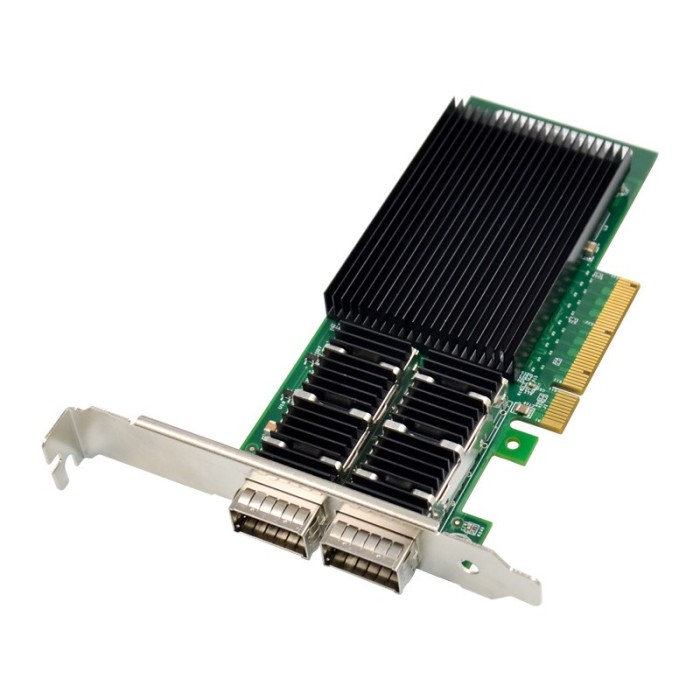

PCIe x8 Dual QSFP+ Port 40GbE Network Card with Intel XL710 Chip

Get fast, high-bandwidth connectivity with this dual-port QSFP+ Network Interface Card. It adds two open QSFP+ slots to your server or workstation. The 40G NIC features an Intel® controller and provides redundant network links with reliable performance. It’s ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.

This dual port QSFP+ server NIC card lets you take advantage of the speed and stability of a 40 Gigabit network, with data transfers of up to 40Gbps. With two QSFP+ ports, the PCIe NIC helps to prevent network downtime by adding fault-tolerant connections using two modules, to provide high-bandwidth network links to your mission-critical servers or workstations.

With its open QSFP+ slots, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution. he 40G NIC uses an Intel XL710 chipset providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.

Features

• PCI Express* (PCIe) v3.0, X8
• Supports 2 x 40GbE configurations
• Exceptional low-power controllers
• Network Virtualization offloads including VXLAN, GENEVE, NVGRE, MPLS, and VXLAN-GPE with NetworkService Headers (NSH)
• Intel® Ethernet Flow Director for hardware based application traffic steering
• Dynamic Device Personalization (DDP) enables increased packet processing efficiency for NFV and Cloud deployments
• Data Plane Development Kit (DPDK) optimized for efficient packet processing
• Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
• Intelligent offloads to enable high performance on servers with Intel® Xeon® processors
• I/O virtualization innovations for maximum performance in a virtualized server

Specifications

• Chipset:  Intel XL710
• Bus Type: PCI Express v3.0 (8 GT/s), compatible with x16
• Connector: 2 * QSFP+ slots
• Data Rate: 40000 Mbps
• Jumbo Frame: up to 9.5 KB
• Network Topology

• IEEE 802.3az Energy Efficient Ethernet, VXLAN / NVGRE, 802.1q VLAN
• IEEE 802.1Qbb, IEEE 802.1az, IEEE 802.1Qbg, IEEE 802.1Qbh
• QSFP+ Fiber 40Gigabit Ethernet, 40Gbase-SR4 (850nm LAN PHY)
• QSFP+ Fiber 40Gigabit Ethernet, 40Gbase-LR4 (1310nm LAN PHY)
• Advanced Features: VXLAN, NVGRE, GENEVE, VXLAN-GPE+NSH, MPLS
• Physical Interfaces: Support PXE, Jumbo frame, iSCSI, DPDK, FCo, EWOL
• Additional Features

• VLAN Support
• Enhanced Transmission Selection (draft IEEE 802.1az)
• Jumbo Frame Support—Up to 9.5 KB (9728 Bytes)
• Priority Flow Control (draft IEEE 802.1Qbb)
• Data Center Bridging (DCB/DCB-X) Support; up to 8 traffic classes
• LED Indicators: 40G: Yellow LINK on; Blue ACT-blink
• Operating Systems

• Server 2003 / Server 2008 / Vista / Win 7 / Win 8 / Win 10 32-64bit
• Windows Server 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 /2016 R2
• FreeBSD, Linux Stable Kernel, VMware ESX/ESXi

Package Contents

• 1 * PCIE Dual 40GbE QSFP+ Server Fiber NICs XL710
• 1 * User's Manual
• 1 * Driver CD
• 1 * Low profile bracket
