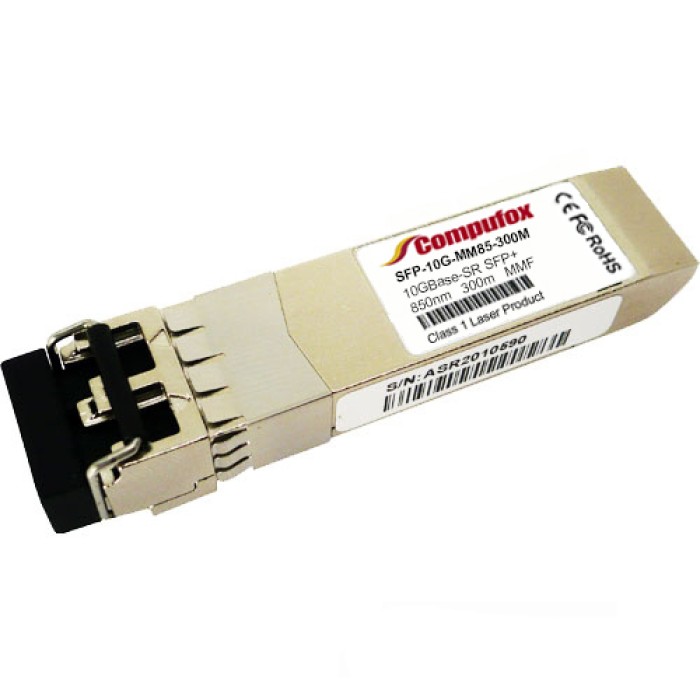

10GBASE-SR SFP+ Optical Transceiver (MMF, 850nm, 300m, LC, DOM)
- Product Code: SFP-10G-MM85-300M
- Availability: In Stock
-
$18.00
Available Options
10GBASE-SR SFP+ Optical Transceiver Module (MMF, 850nm, 300m, LC, DOM).
Features
- Form Factor: SFP+
- Data Rate (max): 10.5 Gb/s
- Distance (max): 300M
- Transmitter: VCSEL
- Receiver: PIN
- Digital Diagnostic: Yes
- Connector: Duplex LC
- Cable Type: MMF
- Wavelength: 850nm
- Operating Temperature: Commercial (COM) / Industrial (IND)
| Specifications | |
| Form Factor | SFP+ |
| Max Data Rate | 10.3125Gbps |
| Wavelength | 850nm |
| Max Cable Distance | 300m@OM3/400m@OM4 |
| Connector | Duplex LC |
| Media | MMF |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| TX Power | -7.3~-1dBm |
| Receiver Sensitivity | < -11.1dBm |
| Powerbudget | 3.8dB |
| Receiver Overload | -1dBm |
| Typical Power Consumption | <1W |
| Extinction Ratio | >3dB |
| Digital Diagnostic | Yes |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
| Warranty | 1 Year Warranty |
