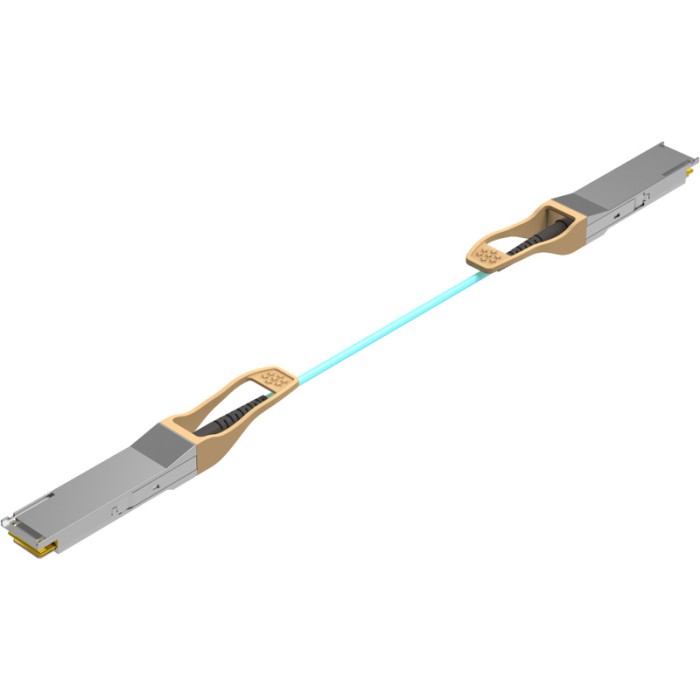

56G QSFP+ to QSFP+ AOC, FDR 56G QSFP+ Active Optical Cable
- Product Code: AOC-56G-QSFP
- Availability: In Stock
-
$155.00
Available Options
The 56G QSFP+ AOC - active optic cables offer a cost-effective, extended reach option for high-speed data center interconnects. Using 850nm VCSEL technology, this QSFP+ cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 14 Gb/s per direction, providing an aggregated rate of 56Gb/s. The cable is available in a number of standard lengths up to 100 meters.
Features
- Hot-pluggable QSFP+ form-factor connectors
- 4 channels full-duplex active optical cables
- 4x 850nm VCSEL array and PIN photo-detector array
- Differential AC-coupled high-speed data interface
- Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4
- Compliant with 4x16GFC and InfiniBand FDR/QDR/DDR/SDR
- Data rate up to 56Gbps
- Length up to 100m/150m over OM3/OM4 MMF
- Power consumption < 1.5W per end
- Operating case temperature range from 0°C to 70°C
- 3.3V power supply voltage
- RoHS compliant (lead free)
Applications
- InfiniBand FDR,QDR,DDR,and SDR
- 40GBASE-SR4 Ethernet links
- 4G/8G/10G Fiber Channel
- SATA/SAS Storage
- HPC Interconnects
- Proprietary Interconnections
| Specifications | |
| Max Data Rate | 56Gbps |
| Connector A | FDR 56G QSFP+ |
| Connector B | FDR 56G QSFP+ |
| Max Length | 150m (492ft) |
| Wavelength | 850nm |
| Media | OM4 MMF |
| Temperature | 0 to 70°C (32 to 158°F) |
| Power Consumption | < 1.5W per end |
