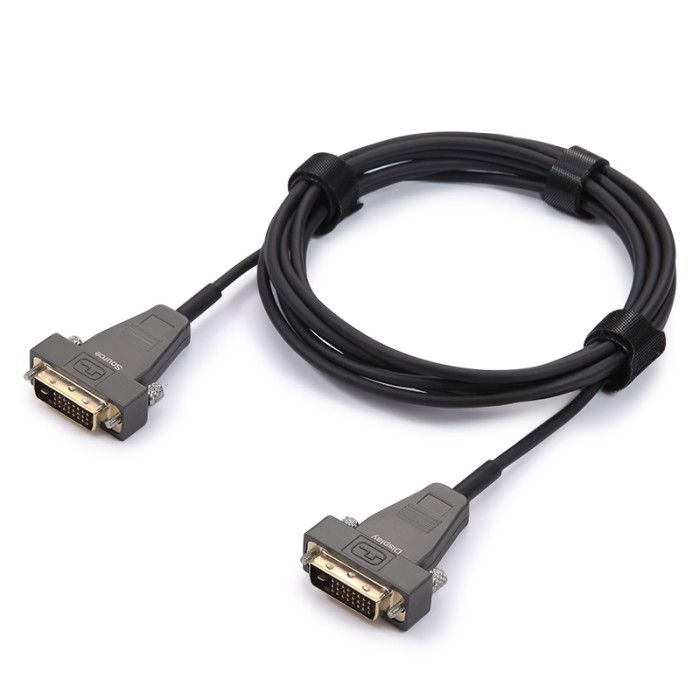

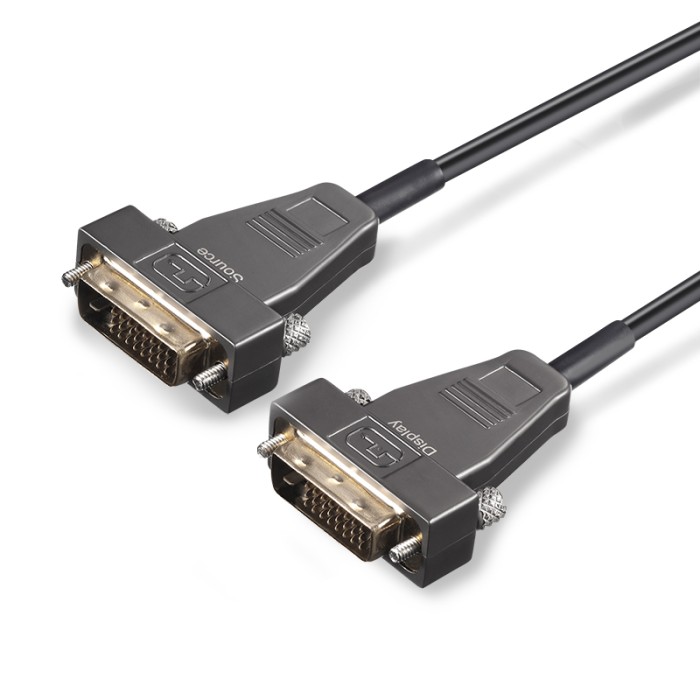

DVI AOC, Hybrid 10.2Gbps 4K30 DVI Active Optical Cable

The DVI Active Optical Cable is designed compact enough to be fitted into various installation environments. It enables to transmit WUXGA (1920x1200) or 1080p at 60Hz (4K 30Hz) signal up to 100m (328 feet) over hybrid cable, avoiding any tricks such as scaling or data compression for lessening a burden of data transmission. The DVI AOC gives slim, light, easy installation like a general copper DVI cable. With low power consumption technology in OPTICIS, the DVI active optical cable can be operated by DDC 5V in DVI port without any external DC power or USB power. It supports EDID, HDCP (High Definition Contents Protection) for better installation flexibility and compatibility.

Features

• Extends WUXGA (1920x1200) at 60Hz or 1080p at 60Hz (36bit, 3.4 Gbps/ch)
• Single channel DVI interface, support up to 10.2Gbps bandwidth
• Thinner, lighter and softer than conventional copper cable
• Operated by DVI source without external power
• Transmits DVI data up to 100m (328feet) over Optical hybrid cable
• Supports 3D contents transmissionComplies with EDID, HDCP
• Certifications: FCC/CE standards for EMI/RFI emission

Applicatoins

• Digital Signage , Security systems ,Home Theater
• Conference Room Video Equipment
• LED signboards in streets and in stadiums
• TV Broadcast Station
• Medical Imaging Equipment ,Airplane On-board Video System
• Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer

Certifications

Warranty

• 1 Year Warranty

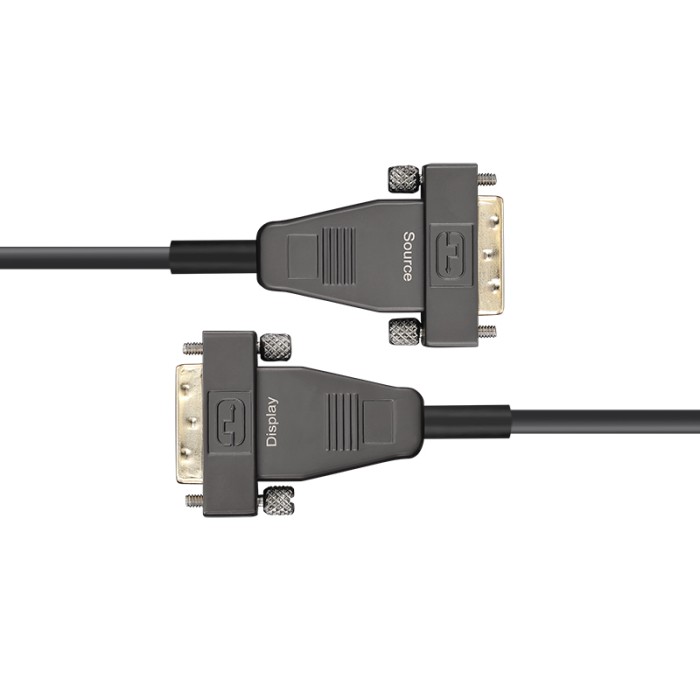

NOTE: This DVI active optical cable is directional. Each end of the cable is marking “Source” and “Display” to indicate the direction of the signal flow. Always test the cable to be sure that the signal flow is correct and for device compatibility before permanently installing in a wall or ceiling.
